TRUMPF Hüttinger TruPlasma Match 1001/13 G2, a 1 kW, 13.56 MHz automatic RF impedance matching network (matchbox). It provides fast, stable, reproducible matching to 50 Ω for semiconductor, solar, display and R&D plasma processes, including RIE and plasma etching, PECVD, ALD, RF sputtering and photoresist ashing. Pairs with TruPlasma RF 1000-series generators.
- Model: TruPlasma Match 1001/13 G2

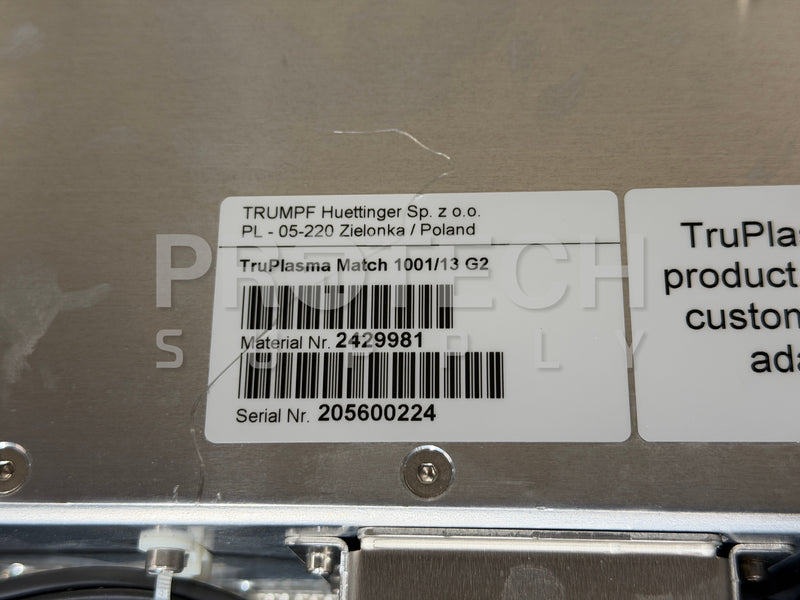

- Material No.: 2429981
- Serial No.: 205600224
- Power / frequency: 1 kW class, 13.56 MHz, 50 Ω input

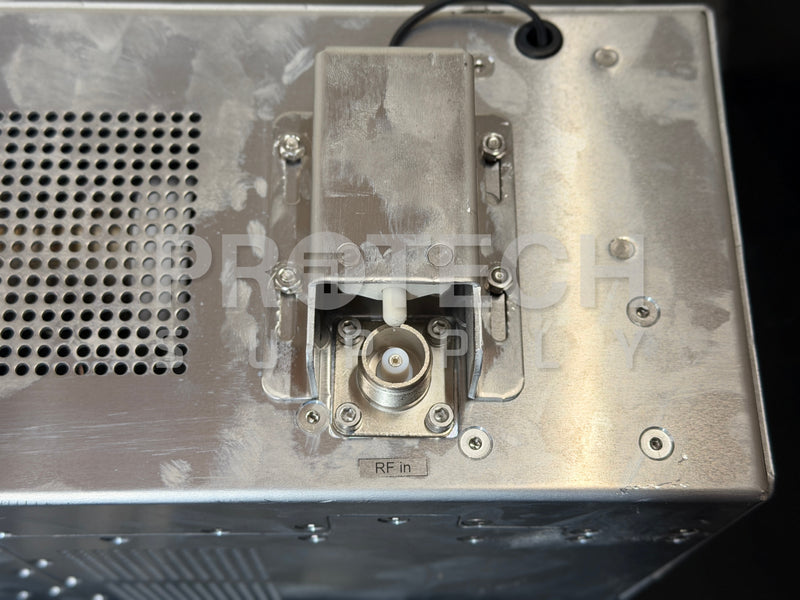

- RF input: Coaxial connector with protective cover

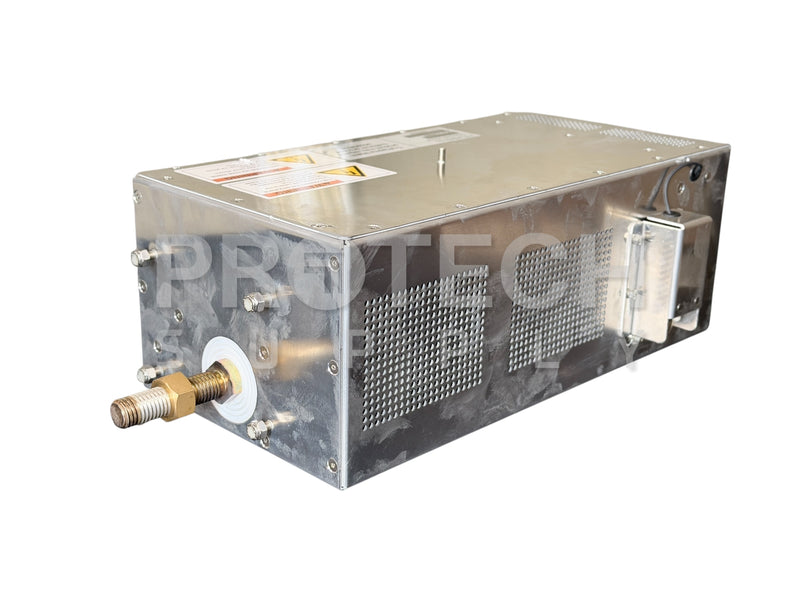

- RF output: Threaded brass output stud with PTFE insulator

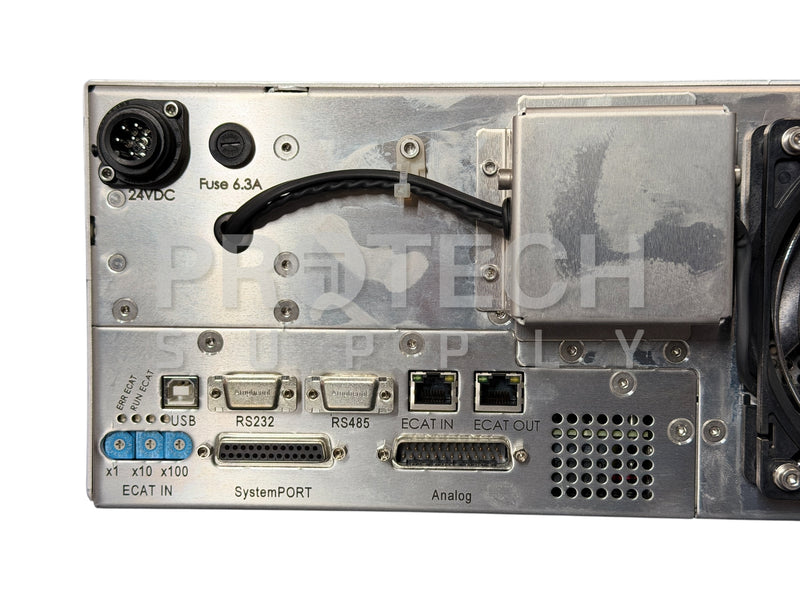

- Interfaces: EtherCAT in/out (with rotary address switches), RS232, RS485, USB, SystemPORT, Analog (D-sub)
- Power: 24 VDC input, 6.3 A fuse

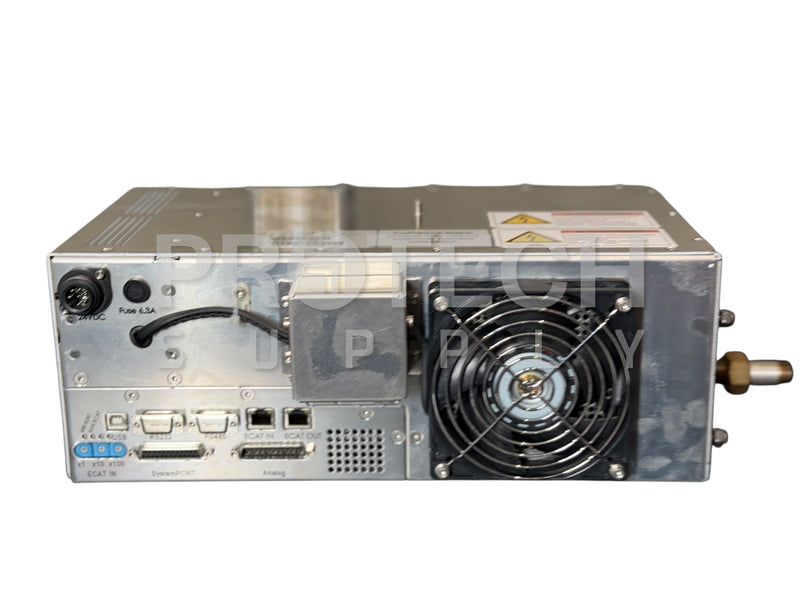

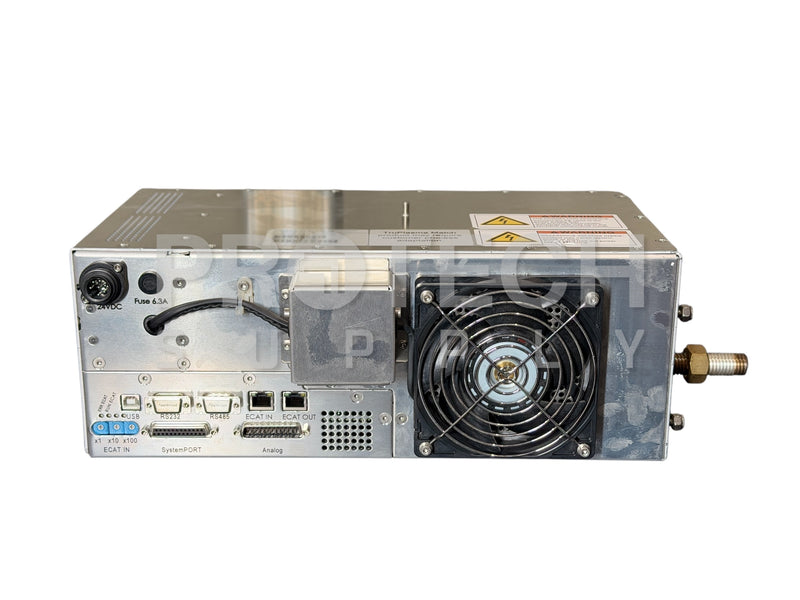

- Cooling: Fan-cooled
- Features: Real-time RF power measurement at input and output, automatic tuning, status LEDs
- Origin: TRUMPF Huettinger, Poland
Condition: Used. Cosmetic handling marks on the enclosure (see photos). Sold as shown; no cables included unless pictured.
Note: As stated on the unit's label, TruPlasma Match products may require customer process adaptation (tuning for your chamber and process).
TRUMPF Hüttinger TruPlasma Match 1001/13 G2, a 1 kW, 13.56 MHz automatic RF impedance matching network (matchbox). It provides fast, stable, reproducible matching to 50 Ω for semiconductor, solar, display and R&D plasma processes, including RIE and plasma etching, PECVD, ALD, RF sputtering and photoresist ashing. Pairs with TruPlasma RF 1000-series generators.
- Model: TruPlasma Match 1001/13 G2
- Material No.: 2429981
- Serial No.: 205600224
- Power / frequency: 1 kW class, 13.56 MHz, 50 Ω input
- RF input: Coaxial connector with protective cover
- RF output: Threaded brass output stud with PTFE insulator
- Interfaces: EtherCAT in/out (with rotary address switches), RS232, RS485, USB, SystemPORT, Analog (D-sub)
- Power: 24 VDC input, 6.3 A fuse
- Cooling: Fan-cooled
- Features: Real-time RF power measurement at input and output, automatic tuning, status LEDs
- Origin: TRUMPF Huettinger, Poland
Condition: Used. Cosmetic handling marks on the enclosure (see photos). Sold as shown; no cables included unless pictured.
Note: As stated on the unit's label, TruPlasma Match products may require customer process adaptation (tuning for your chamber and process).
