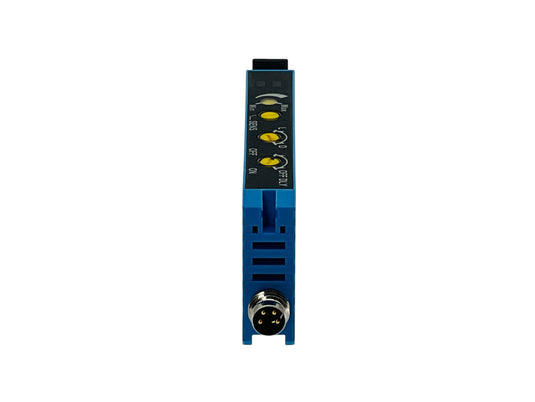

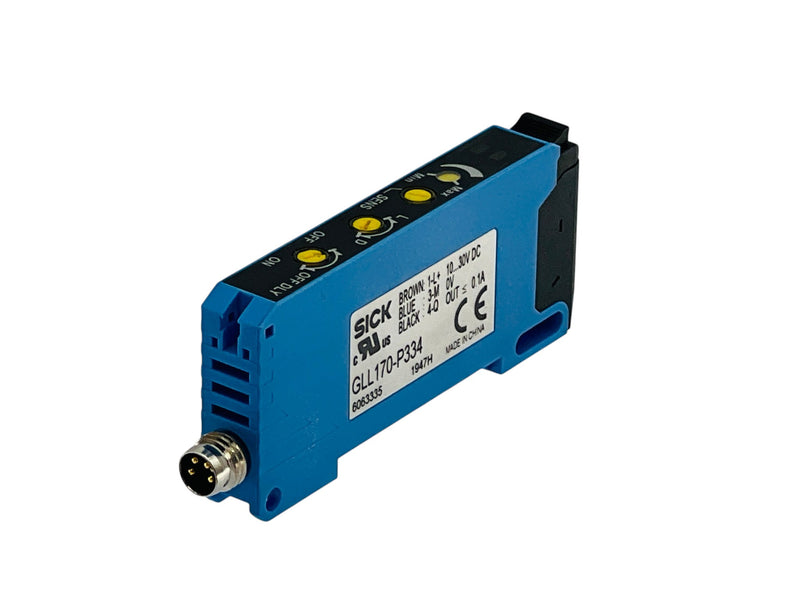

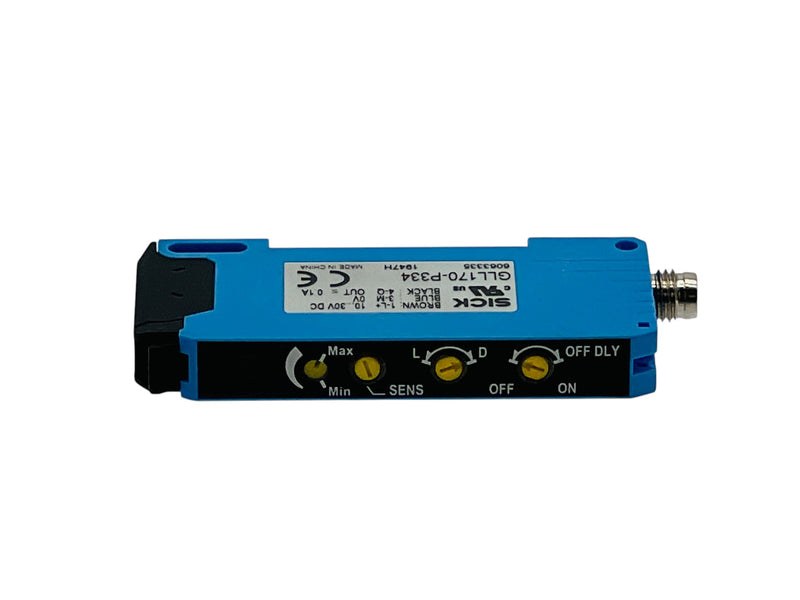

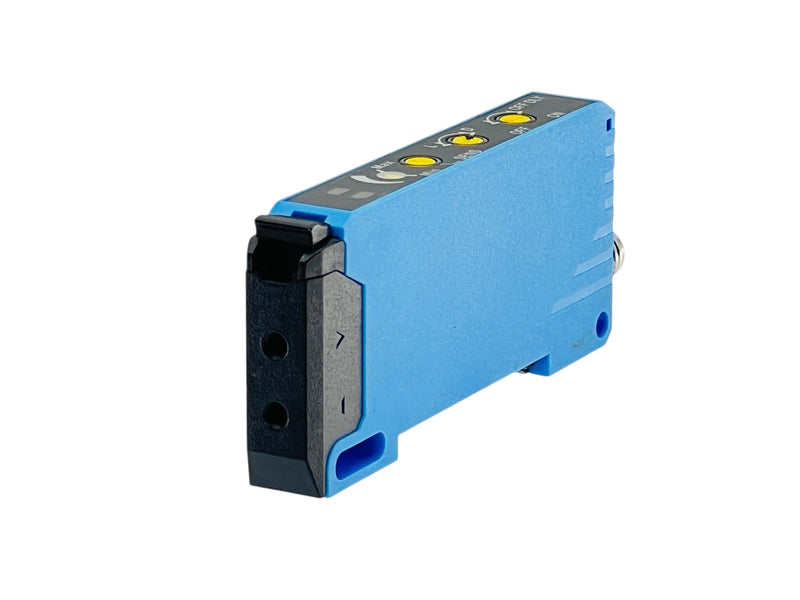

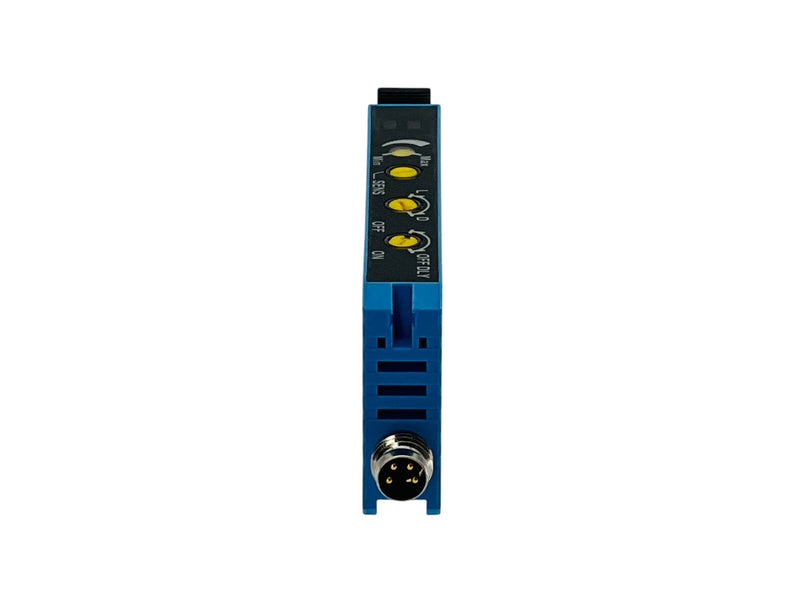

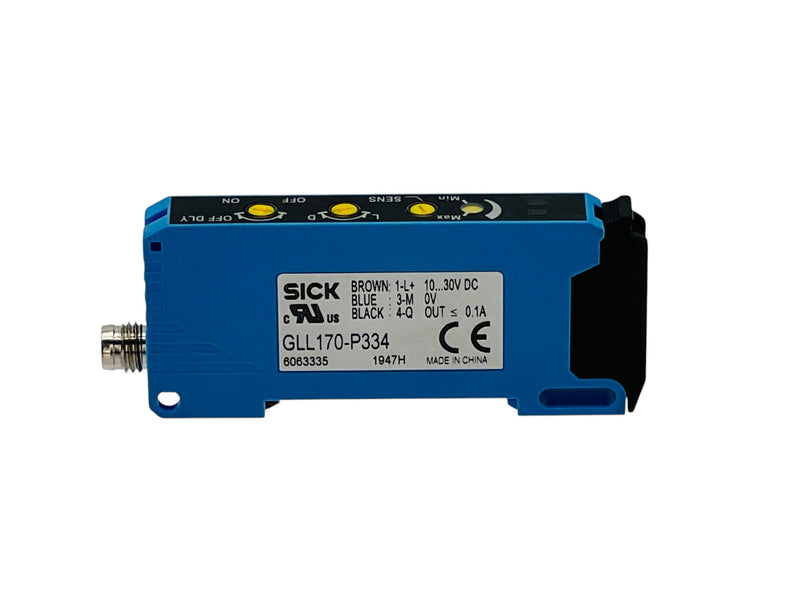

The SICK GLL170-P334 is an industrial fiber-optic sensor amplifier designed for precise object detection and automated sensing applications. It features a visible red LED light source, adjustable sensitivity, PNP switching output, and selectable light/dark switching modes. The compact housing includes LED status indicators and an M8 4-pin electrical connection.
It is used in automated production lines, packaging machinery, conveyor systems, object detection, material handling, and industrial automation applications requiring reliable photoelectric sensing.
Condition: Used
What's included: SICK GLL170-P334 sensor amplifier only, as pictured
Manufacturer: SICK
Model: GLL170-P334
Part Number: 6063335
Product Type: Fiber-Optic Sensor Amplifier
Series: GLL170
Operating Voltage: 10–30 VDC
Output Type: PNP
Number of Outputs: 1
Maximum Output Current: 100 mA
Light Source: Visible Red LED
Wavelength: 632 nm
Switching Mode: Light/Dark Switching
Switching Frequency: 2 kHz
Response Time: ≤250 µs
Sensing Range: Up to 800 mm with appropriate fiber optics
Sensitivity Adjustment: Potentiometer
Connection Type: M8 4-Pin Male Connector
Protection Rating: IP66
Operating Temperature: -25°C to +55°C
Housing Material: Plastic
Dimensions: 10 × 31.7 × 72.5 mm
Country of Manufacture: China
Applications: Industrial Automation, Object Detection, Conveyor Systems, Packaging Equipment, Machine Control
The SICK GLL170-P334 is an industrial fiber-optic sensor amplifier designed for precise object detection and automated sensing applications. It features a visible red LED light source, adjustable sensitivity, PNP switching output, and selectable light/dark switching modes. The compact housing includes LED status indicators and an M8 4-pin electrical connection.
It is used in automated production lines, packaging machinery, conveyor systems, object detection, material handling, and industrial automation applications requiring reliable photoelectric sensing.
Condition: Used
What's included: SICK GLL170-P334 sensor amplifier only, as pictured
Manufacturer: SICK
Model: GLL170-P334
Part Number: 6063335
Product Type: Fiber-Optic Sensor Amplifier
Series: GLL170
Operating Voltage: 10–30 VDC
Output Type: PNP
Number of Outputs: 1
Maximum Output Current: 100 mA
Light Source: Visible Red LED
Wavelength: 632 nm
Switching Mode: Light/Dark Switching
Switching Frequency: 2 kHz
Response Time: ≤250 µs
Sensing Range: Up to 800 mm with appropriate fiber optics
Sensitivity Adjustment: Potentiometer
Connection Type: M8 4-Pin Male Connector
Protection Rating: IP66
Operating Temperature: -25°C to +55°C
Housing Material: Plastic
Dimensions: 10 × 31.7 × 72.5 mm
Country of Manufacture: China
Applications: Industrial Automation, Object Detection, Conveyor Systems, Packaging Equipment, Machine Control
