The Pepperl+Fuchs IQH1-F61-V1 is an industrial high-frequency RFID read/write head designed for contactless identification and data communication in automated systems. It operates at 13.56 MHz, supports ISO 15693 RFID transponders, and features a compact housing with IP67 protection and an M12 connection for integration with IDENTControl systems.
It is used in industrial automation, product identification, manufacturing traceability, conveyor systems, automated assembly lines, and material handling applications requiring reliable RFID data reading and writing.
Condition: Used

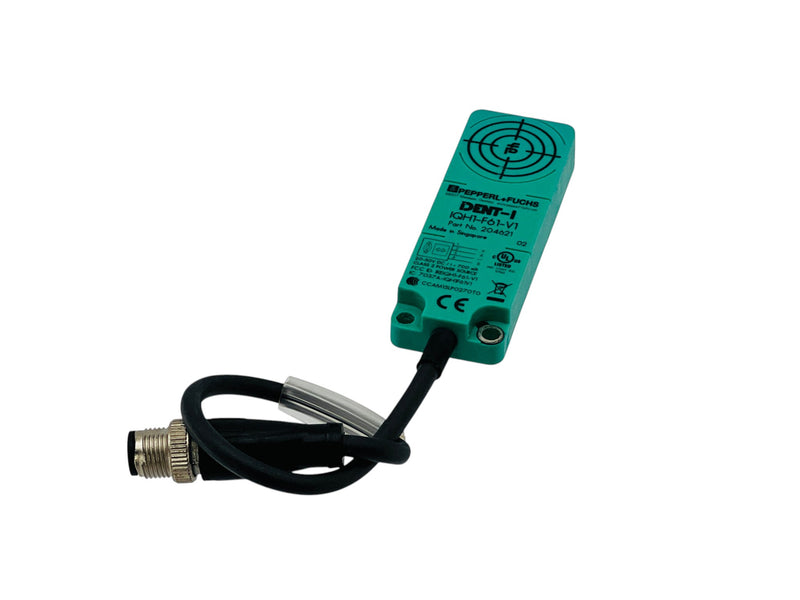

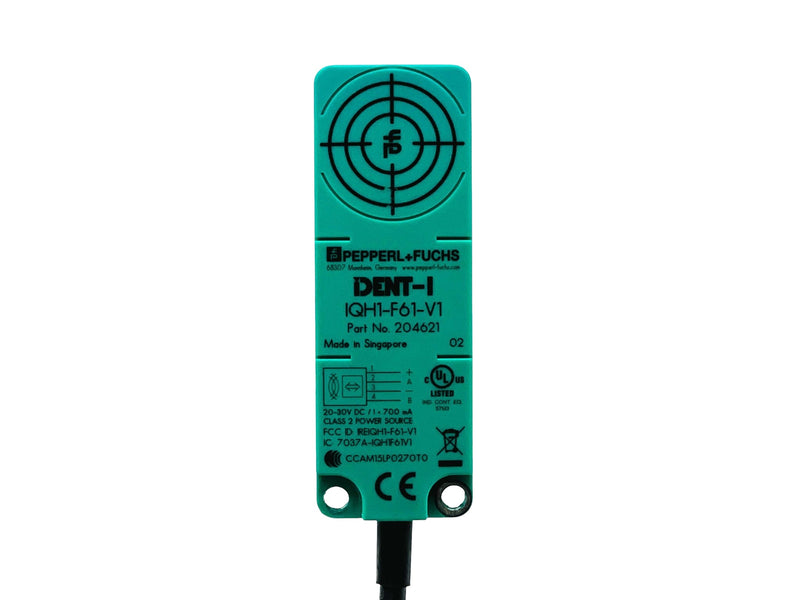

What's included: Pepperl+Fuchs IQH1-F61-V1 RFID read/write head with attached cable, as pictured
Manufacturer: Pepperl+Fuchs
Model: IQH1-F61-V1
Part Number: 204621
Product Type: Industrial RFID Read/Write Head
RFID Technology: High Frequency (HF)
Operating Frequency: 13.56 MHz
RFID Standard: ISO 15693
Data Transfer Rate: 26 kbit/s
Read Distance: 0–55 mm
Write Distance: 0–55 mm
Maximum Transponder Width: 45 mm
Operating Voltage: 20–30 VDC (Unit Label)
Rated Current: Less Than 700 mA (Unit Label)
Power Consumption: ≤1.3 W

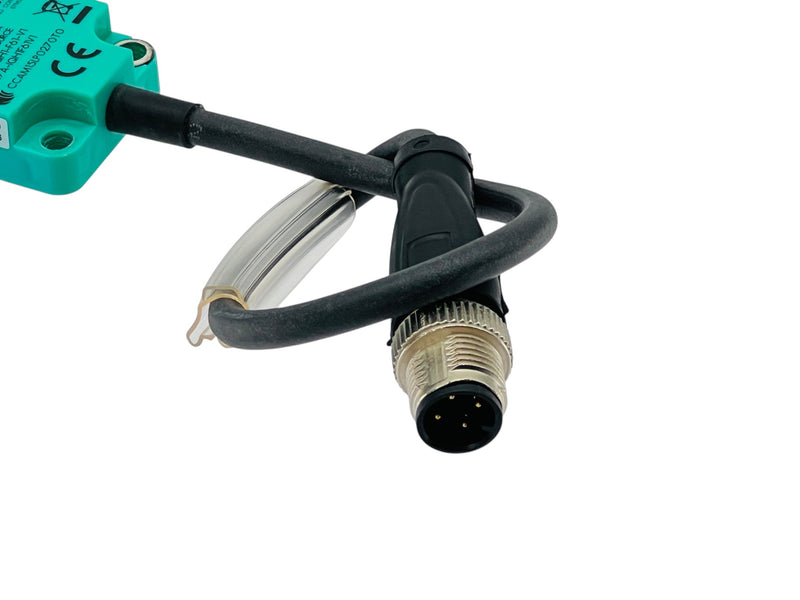

Connection Type: M12 × 1 Connector
Cable Length: 200 mm
Protection Rating: IP67
Housing Material: ABS Plastic
Mounting: Metal Surface Compatible
Operating Temperature: -25°C to +70°C
Dimensions: 80 × 28 × 12 mm
Weight: Approximately 60 g
Compatible Control System: Pepperl+Fuchs IDENTControl
Country of Manufacture: Singapore
Applications: Industrial RFID Identification, Factory Automation, Product Tracking, Manufacturing Traceability, Automated Material Handling
The Pepperl+Fuchs IQH1-F61-V1 is an industrial high-frequency RFID read/write head designed for contactless identification and data communication in automated systems. It operates at 13.56 MHz, supports ISO 15693 RFID transponders, and features a compact housing with IP67 protection and an M12 connection for integration with IDENTControl systems.
It is used in industrial automation, product identification, manufacturing traceability, conveyor systems, automated assembly lines, and material handling applications requiring reliable RFID data reading and writing.
Condition: Used
What's included: Pepperl+Fuchs IQH1-F61-V1 RFID read/write head with attached cable, as pictured
Manufacturer: Pepperl+Fuchs
Model: IQH1-F61-V1
Part Number: 204621
Product Type: Industrial RFID Read/Write Head
RFID Technology: High Frequency (HF)
Operating Frequency: 13.56 MHz
RFID Standard: ISO 15693
Data Transfer Rate: 26 kbit/s
Read Distance: 0–55 mm
Write Distance: 0–55 mm
Maximum Transponder Width: 45 mm
Operating Voltage: 20–30 VDC (Unit Label)
Rated Current: Less Than 700 mA (Unit Label)
Power Consumption: ≤1.3 W
Connection Type: M12 × 1 Connector
Cable Length: 200 mm
Protection Rating: IP67
Housing Material: ABS Plastic
Mounting: Metal Surface Compatible
Operating Temperature: -25°C to +70°C
Dimensions: 80 × 28 × 12 mm
Weight: Approximately 60 g
Compatible Control System: Pepperl+Fuchs IDENTControl
Country of Manufacture: Singapore
Applications: Industrial RFID Identification, Factory Automation, Product Tracking, Manufacturing Traceability, Automated Material Handling
