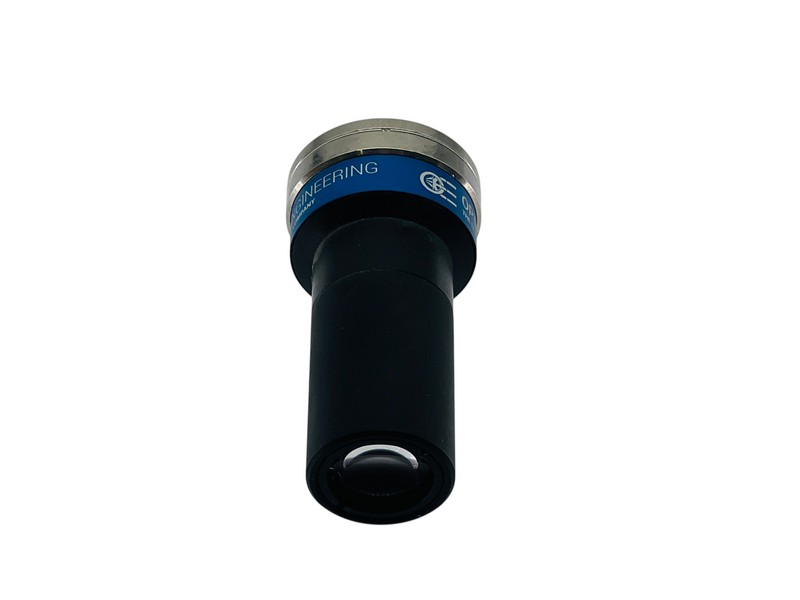

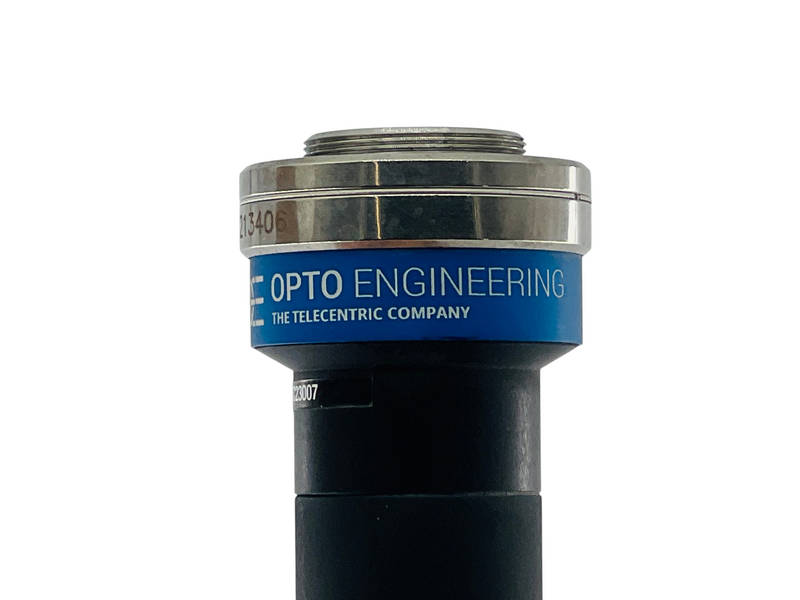

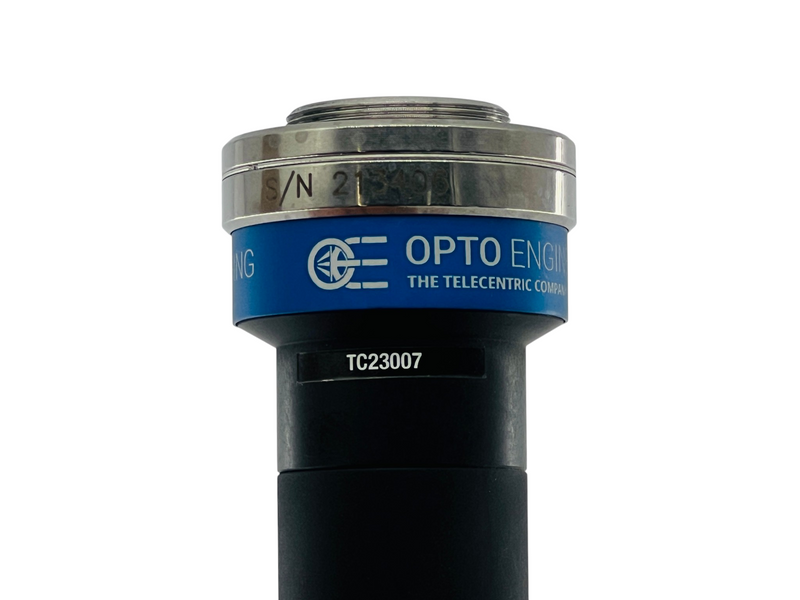

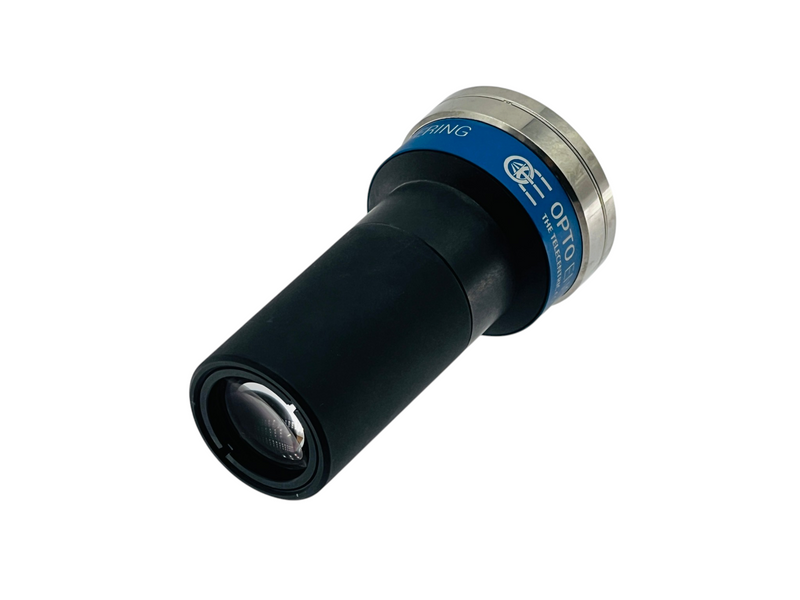

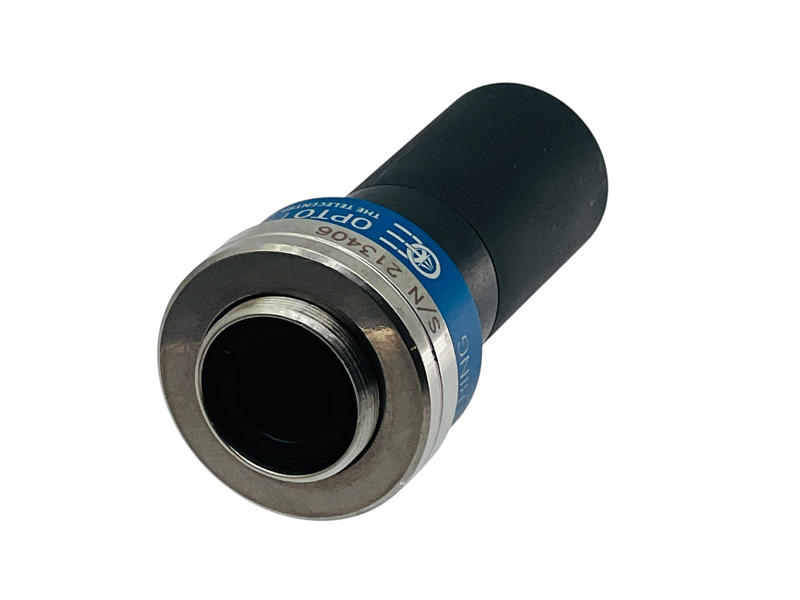

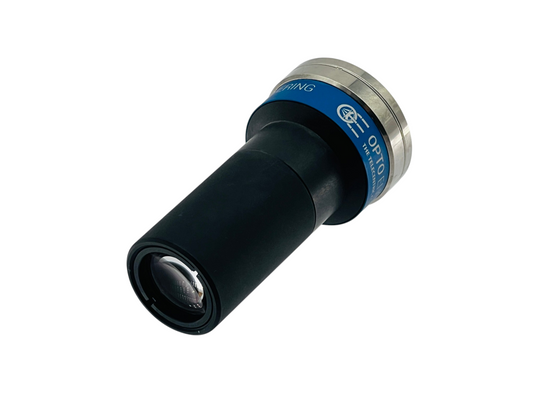

Opto Engineering TC23007 bi-telecentric lens for high-precision measurement, gauging, and inspection of small parts in machine vision. The bi-telecentric design keeps magnification constant as the object moves toward or away from the lens, so dimensional measurements stay accurate and repeatable. Distortion is very low and edges stay sharp across the full field.
Model: TC23007 (TC Series)
Magnification: 1.333X
Sensor Format: Up to 2/3" (11 mm image circle)
Field of View (2/3" sensor): 6.38 × 5.32 mm
Working Distance: 60.1 mm
Aperture: F/11
Depth of Field: 0.3 mm
Distortion: < 0.03% typical, < 0.08% max
Telecentricity: < 0.08° typical, 0.10° max
Resolution: Supports sensors up to 5 MP (5 µm pixel size)
Mount: C-Mount
Dimensions: 78.5 × 28 × 28 mm
