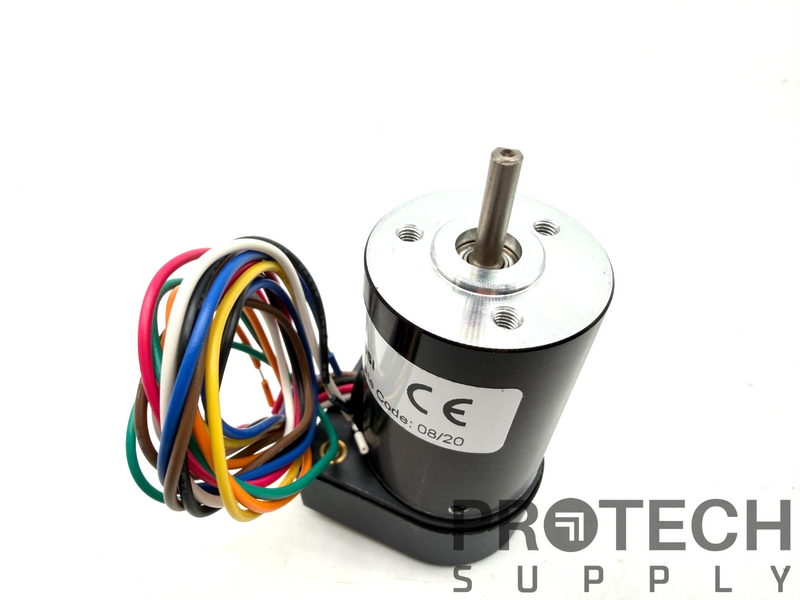

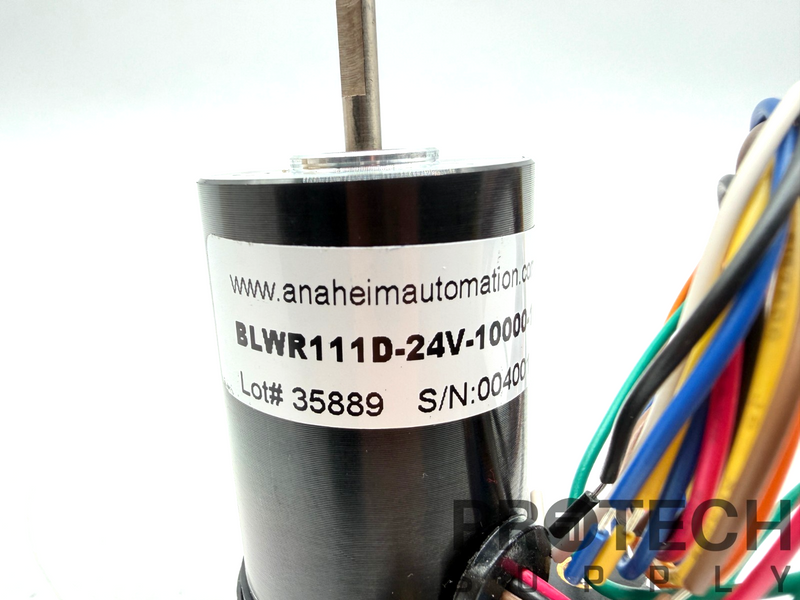

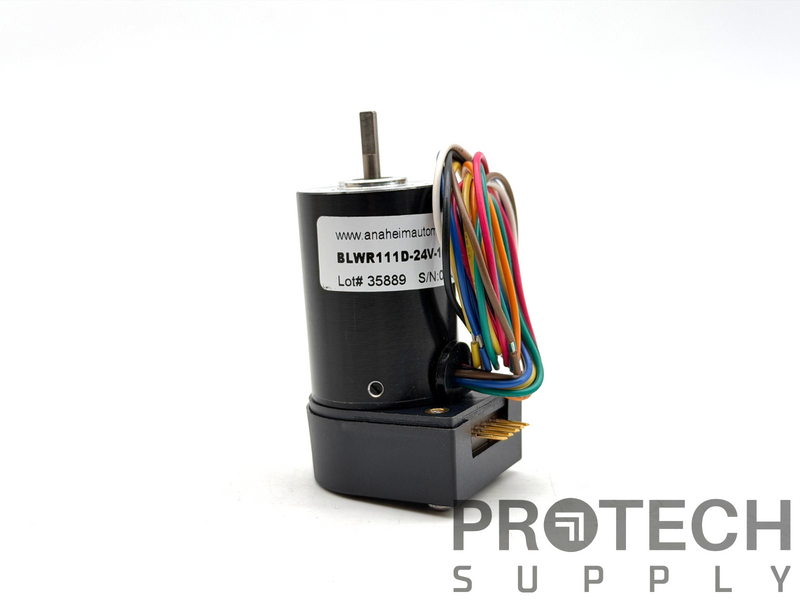

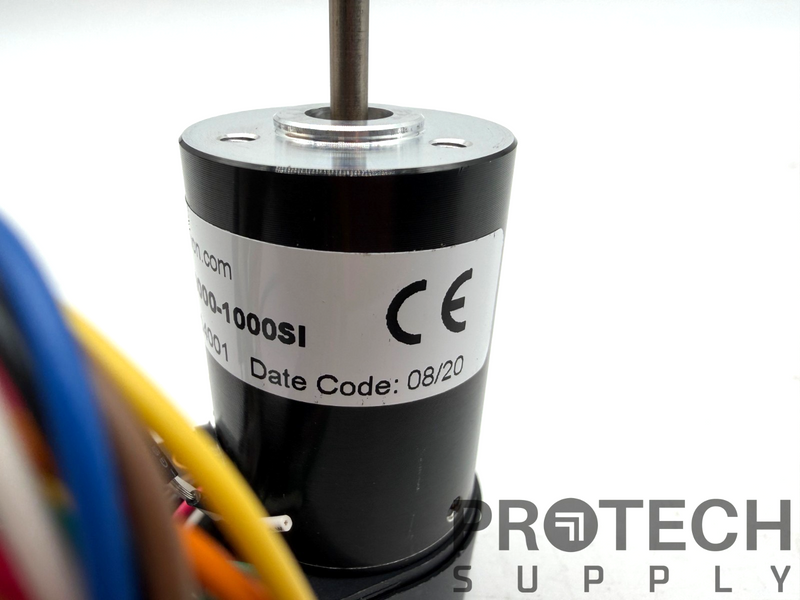

Anaheim Automation BLWR111D-24V-10000-1000S Brushless DC Motor with 1000SI incremental encoder
Motor
Type: 3-phase brushless DC (BLDC), star-wound, 8-lead
Frame size: 28 mm round body
Voltage: 24 VDC
Rated power: 15 W
Rated speed: 10,000 RPM
Rated torque: 2.0 oz-in (≈ 0.014 N·m)
Peak torque: 6.0 oz-in (≈ 0.042 N·m)
Rated current: 0.88 A
Line-to-line resistance: ~4.63 Ω
Line-to-line inductance: ~1.69 mH
Torque constant: ~2.27 oz-in/A
Rotor inertia: 3.0×10⁻⁵ oz-in-s²
Length (L): 40 mm
Weight: ~0.18 lb (~80 g)

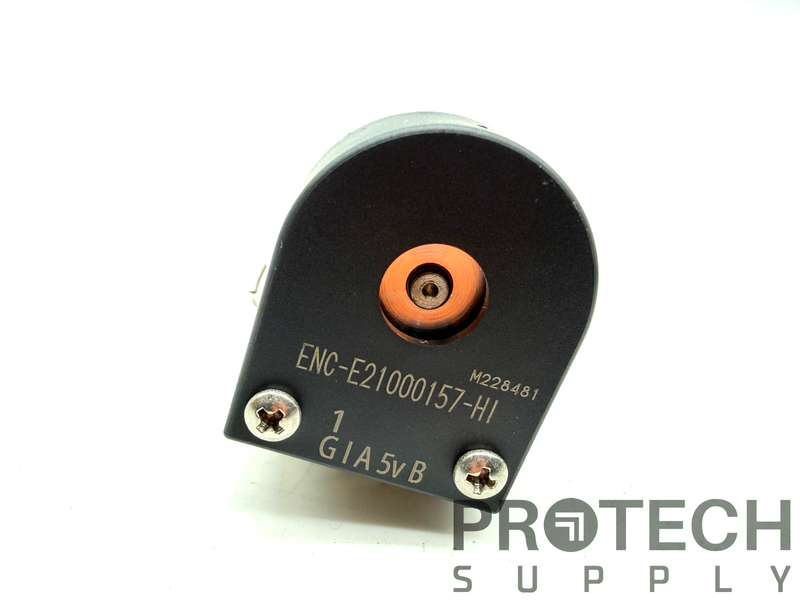

Encoder
Type: incremental optical encoder, model 1000SI
Resolution: 1000 pulses per revolution (PPR) (quadrature)
Mounting: factory-mounted on rear shaft
Output: typical TTL/RS-422 quadrature (A/B, possibly index Z – you can say “see datasheet / not included” if you don’t have pinout)
Mechanical
Shaft: double-shaft version
Body: compact cylindrical motor with rear encoder housing

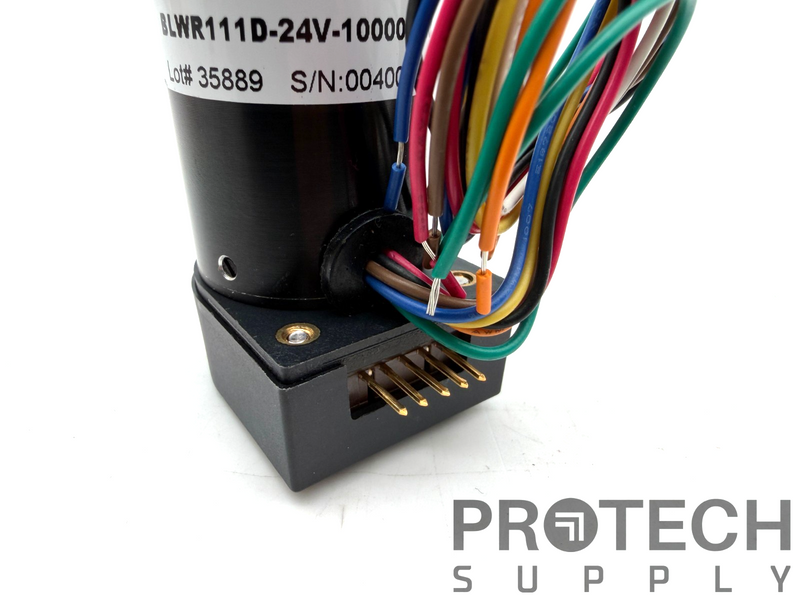

Leads: standard Anaheim 8-lead BLDC motor wiring
(3 phases + 5 hall/encoder leads),
