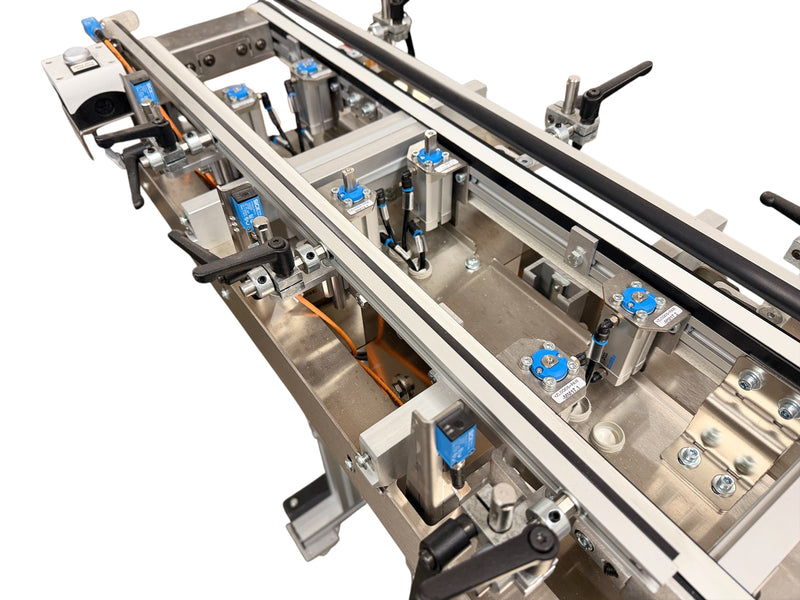

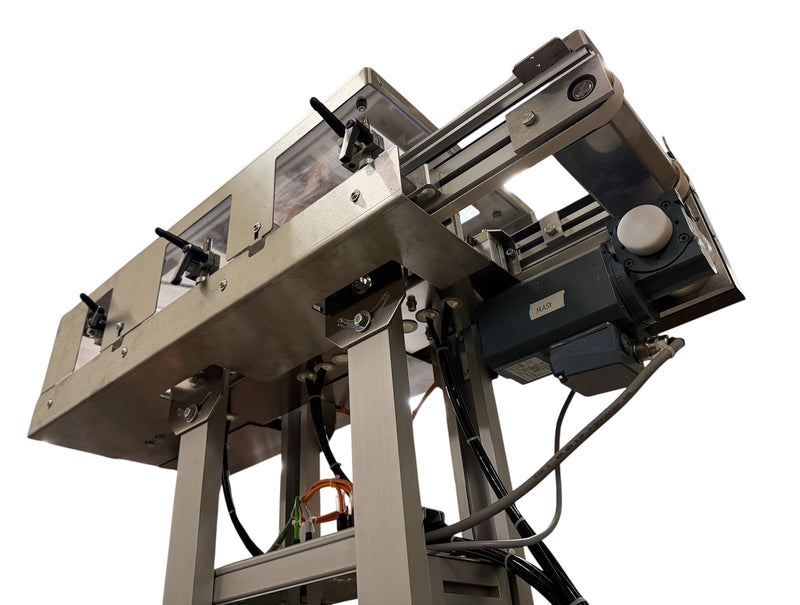

mk Technology Group DGF-P 2001 double belt (dual-strand) conveyor module, built into a Zahoransky automation station. The DGF-P 2001 is mk's double belt conveyor for moving workpiece carriers, pallets and pucks in assembly and pharmaceutical/medical device lines. This unit is set up as a station with SICK photoelectric sensors, compact pneumatic stop/positioning cylinders, adjustable guide rails with quick-release clamping levers, and an operator push button. It's mounted on a mobile aluminum profile stand with casters, and it has a docking arm with a toggle clamp and Harting quick-disconnect connectors for coupling to a main machine. The drive is a 0.2 kW 3-phase gearmotor with a 38:1 gearbox. Built in Germany in 2020.
Condition: Used
What's Included: One mk DGF-P 2001 conveyor module with Zahoransky station components and mobile stand, as pictured
Shipping: Freight shipping or local pickup
Conveyor – mk DGF-P 2001
Brand: mk Technology Group (Maschinenbau Kitz GmbH)
Model: DGF-P 2001 AC/965/200-2x2
Conveyor Type: Double belt (dual-strand) pallet conveyor
Conveyor Length: 965 mm (per model code)
Conveyor Width: 200 mm (per model code)
Serial No.: 202026051801301
Manufactured: 08/2020
Voltage: 400V
Country of Origin: Germany
Drive Motor & Gearbox

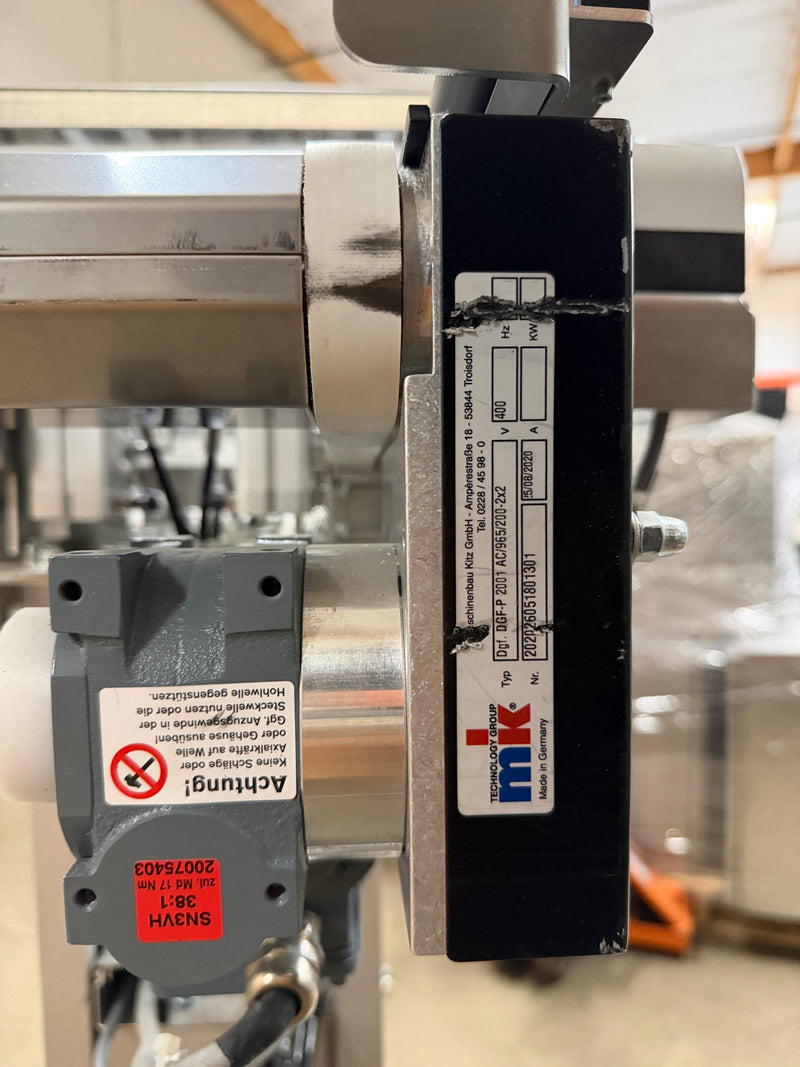

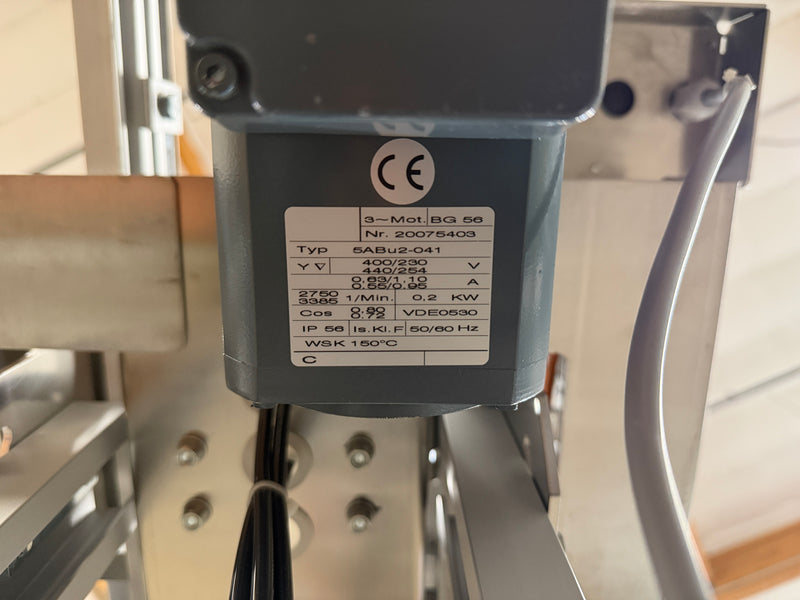

Motor: 3-phase AC motor, frame BG 56, type 5ABu2-041
Power: 0.2 kW
Voltage: 400/230V Y/Δ (50 Hz), 440/254V Y/Δ (60 Hz)
Current: 0.63/1.10 A (50 Hz), 0.55/0.95 A (60 Hz)
Speed: 2750 rpm (50 Hz) / 3385 rpm (60 Hz)
Enclosure: IP56, insulation class F, WSK 150°C thermal protection
Gearbox: SN3VH, 38:1 ratio, max 17 Nm output torque
Motor/Gearbox No.: 20075403
Certification: CE

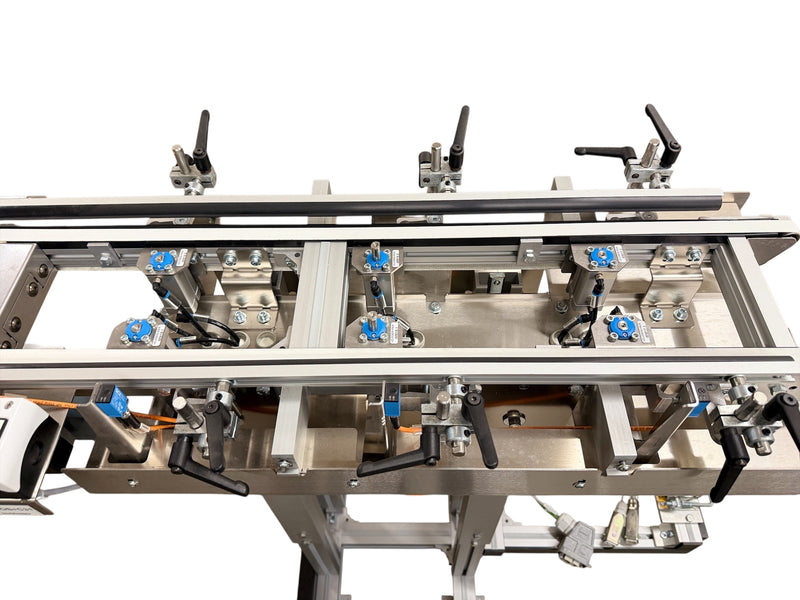

Station Features
SICK photoelectric sensors

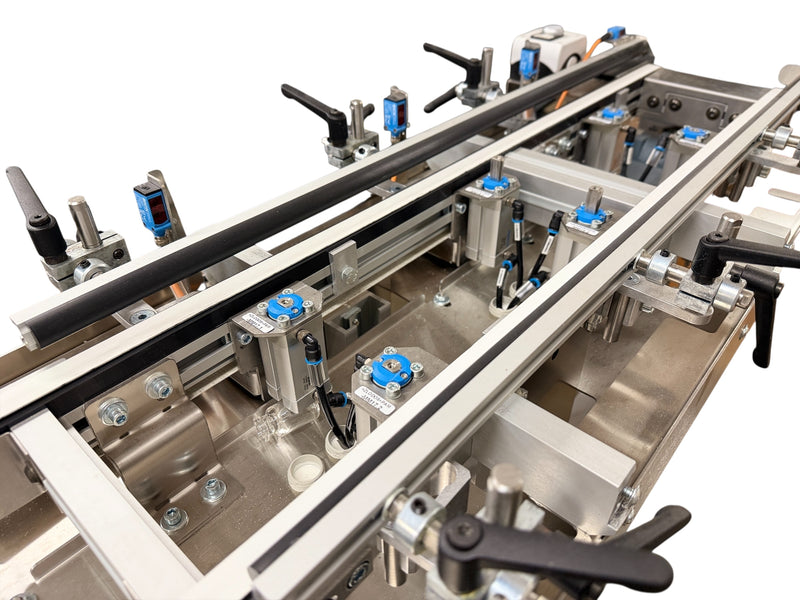

Compact pneumatic stop/positioning cylinders
Adjustable side guide rails with quick-release clamping levers
Operator push button station

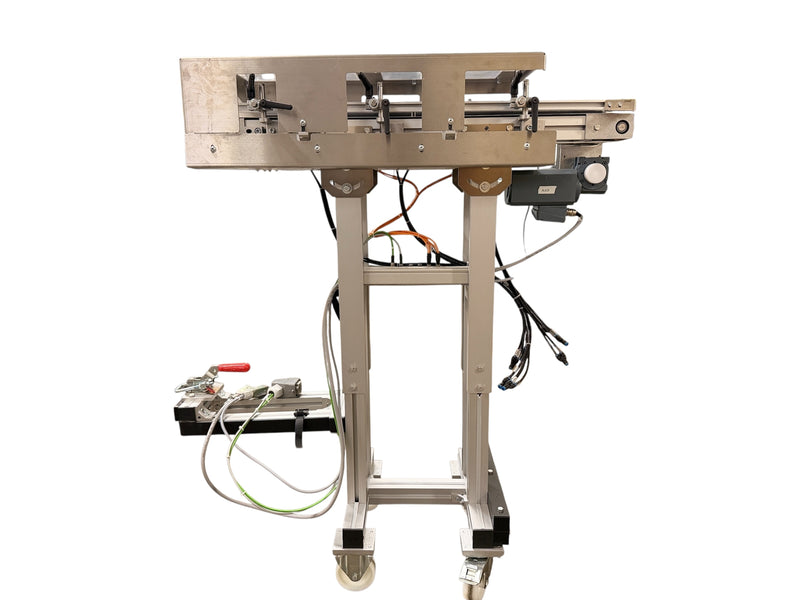

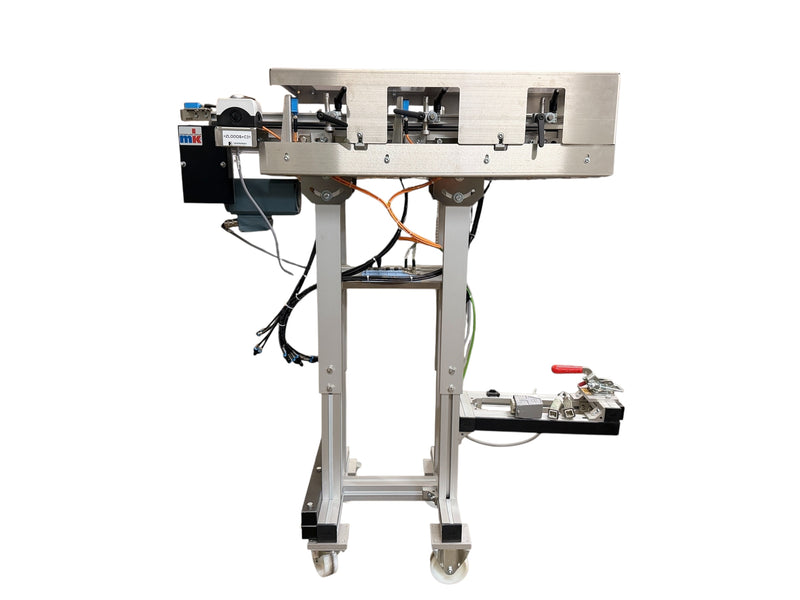

Mobile aluminum profile stand with casters (locking)
Adjustable conveyor angle via pivot brackets

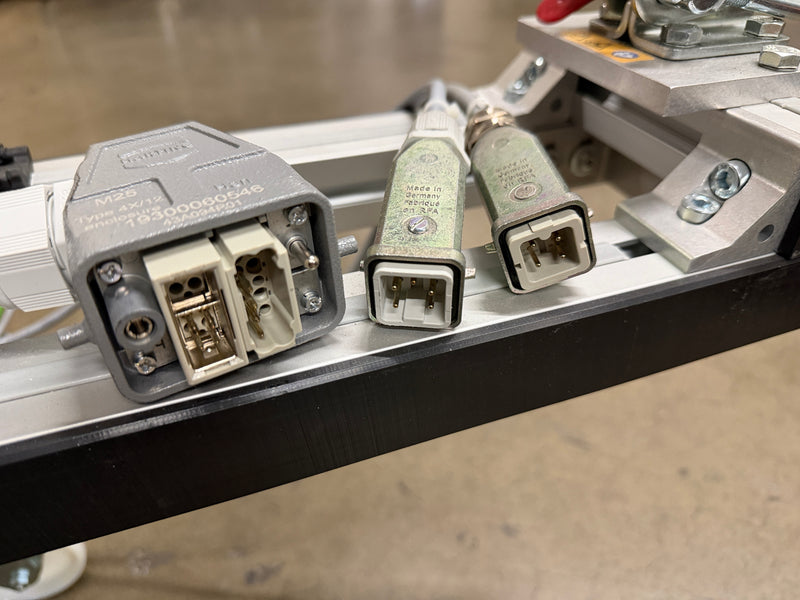

Docking arm with toggle clamp and Harting heavy-duty connectors

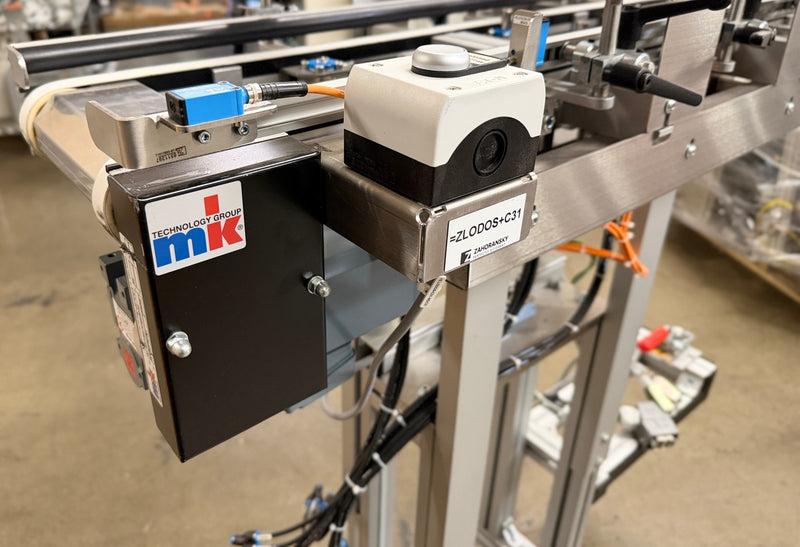

Manufacturer label: Zahoransky "=ZLODOS+C31"
mk Technology Group DGF-P 2001 double belt (dual-strand) conveyor module, built into a Zahoransky automation station. The DGF-P 2001 is mk's double belt conveyor for moving workpiece carriers, pallets and pucks in assembly and pharmaceutical/medical device lines. This unit is set up as a station with SICK photoelectric sensors, compact pneumatic stop/positioning cylinders, adjustable guide rails with quick-release clamping levers, and an operator push button. It's mounted on a mobile aluminum profile stand with casters, and it has a docking arm with a toggle clamp and Harting quick-disconnect connectors for coupling to a main machine. The drive is a 0.2 kW 3-phase gearmotor with a 38:1 gearbox. Built in Germany in 2020.
Condition: Used
What's Included: One mk DGF-P 2001 conveyor module with Zahoransky station components and mobile stand, as pictured
Shipping: Freight shipping or local pickup
Conveyor – mk DGF-P 2001
Brand: mk Technology Group (Maschinenbau Kitz GmbH)
Model: DGF-P 2001 AC/965/200-2x2
Conveyor Type: Double belt (dual-strand) pallet conveyor
Conveyor Length: 965 mm (per model code)
Conveyor Width: 200 mm (per model code)
Serial No.: 202026051801301
Manufactured: 08/2020
Voltage: 400V
Country of Origin: Germany
Drive Motor & Gearbox
Motor: 3-phase AC motor, frame BG 56, type 5ABu2-041
Power: 0.2 kW
Voltage: 400/230V Y/Δ (50 Hz), 440/254V Y/Δ (60 Hz)
Current: 0.63/1.10 A (50 Hz), 0.55/0.95 A (60 Hz)
Speed: 2750 rpm (50 Hz) / 3385 rpm (60 Hz)
Enclosure: IP56, insulation class F, WSK 150°C thermal protection
Gearbox: SN3VH, 38:1 ratio, max 17 Nm output torque
Motor/Gearbox No.: 20075403
Certification: CE
Station Features
SICK photoelectric sensors
Compact pneumatic stop/positioning cylinders
Adjustable side guide rails with quick-release clamping levers
Operator push button station
Mobile aluminum profile stand with casters (locking)
Adjustable conveyor angle via pivot brackets
Docking arm with toggle clamp and Harting heavy-duty connectors
Manufacturer label: Zahoransky "=ZLODOS+C31"
