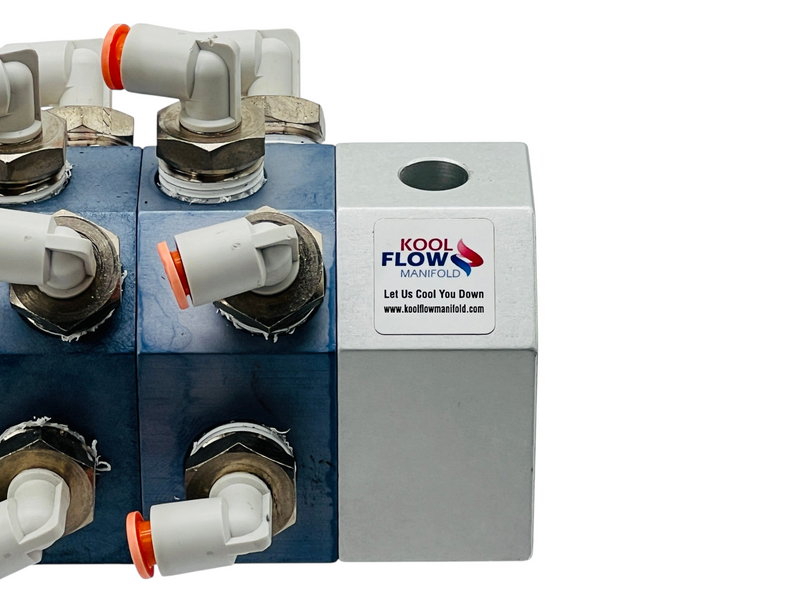

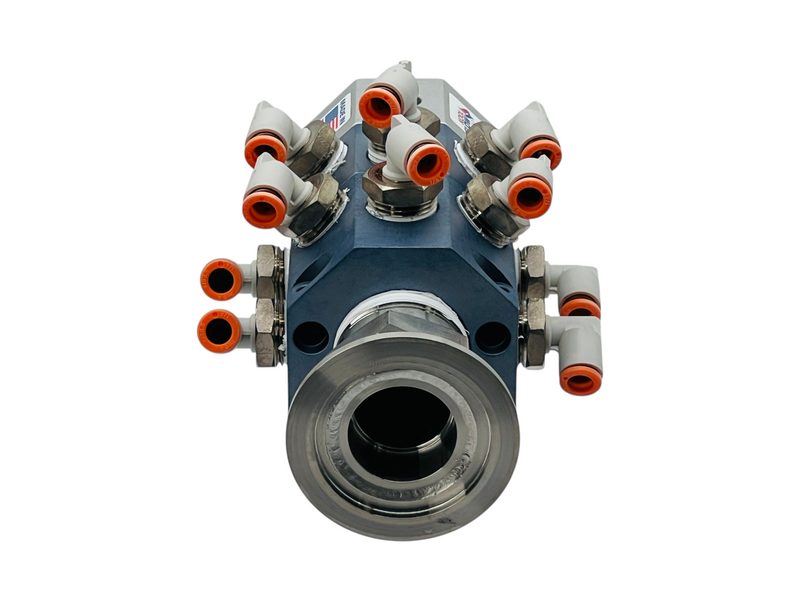

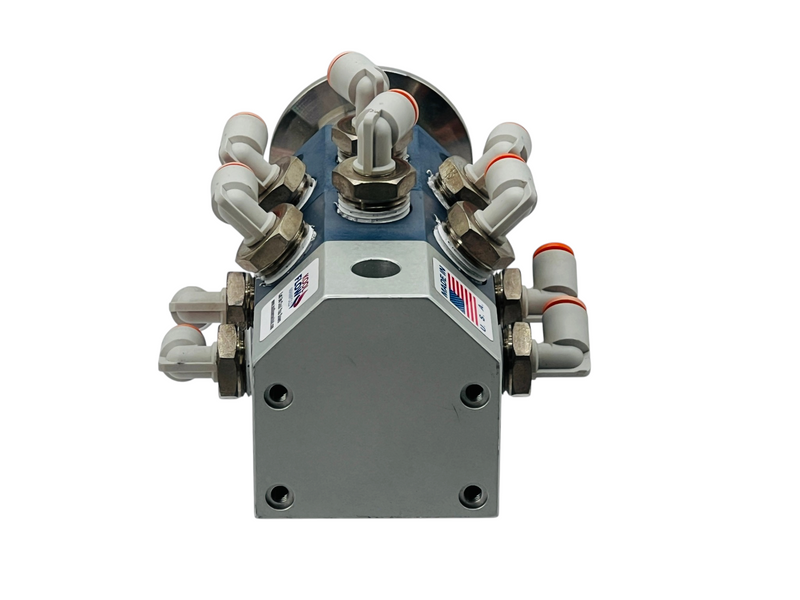

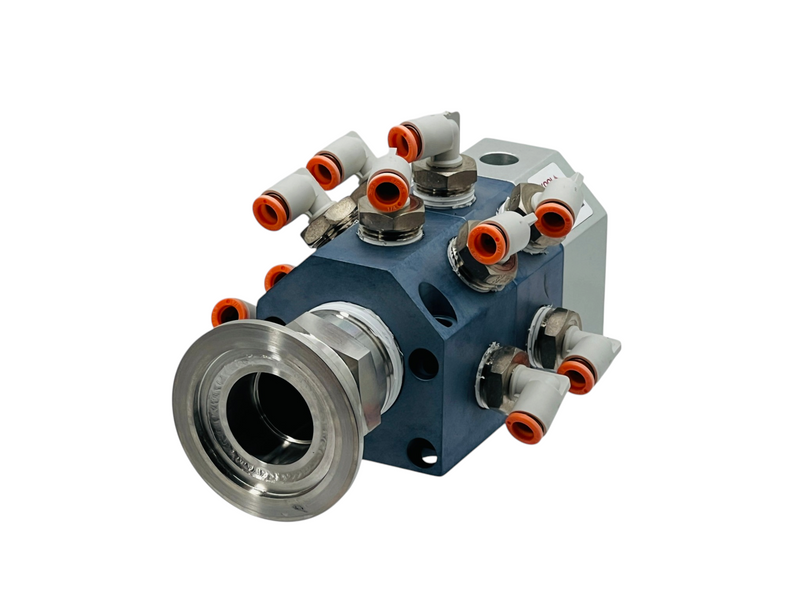

Kool Flow FB4 Series modular water cooling manifold configured with two blue anodized aluminum distribution blocks, ten installed 90° push-to-connect outlet fittings, and a clamp-style flanged inlet adapter. It divides one coolant supply across multiple branch lines in a compact modular assembly.
This manifold is used for industrial cooling-water distribution in injection molding, die casting, resistance welding, vacuum forming, and related process equipment.
Condition: Used
What's included: One Kool Flow manifold assembly with installed flanged inlet adapter and ten outlet elbow fittings as pictured
Model: FB4 Series
Configuration: Two-block, 10-outlet blue port-to-blank assembly
Construction: Modular 6061-T6 anodized aluminum
Manifold inlet: 2 in NPT with installed flanged adapter
Outlet ports: 3/4 in NPT with installed push-to-connect elbow fittings
Block size: 3.50 × 3.50 in
Seals: Viton O-rings between manifold blocks
Mounting: Pre-drilled mounting holes
Country of Origin: USA
