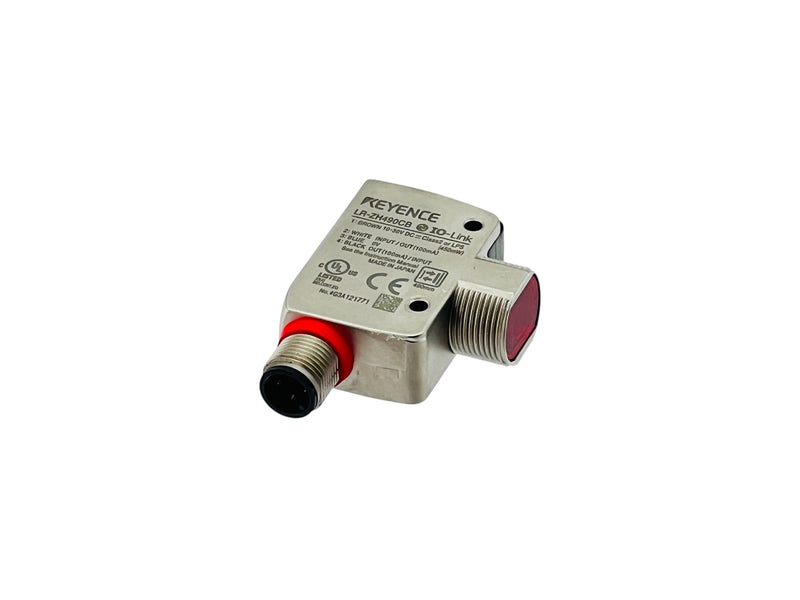

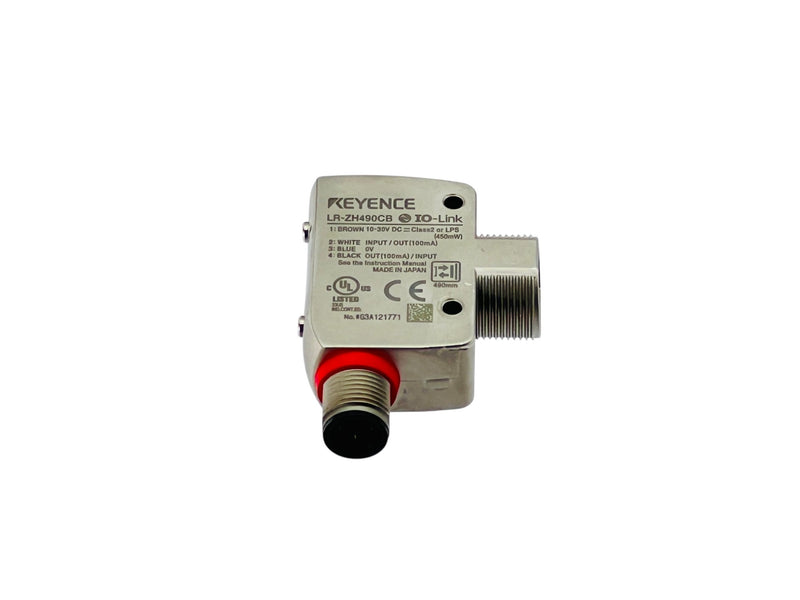

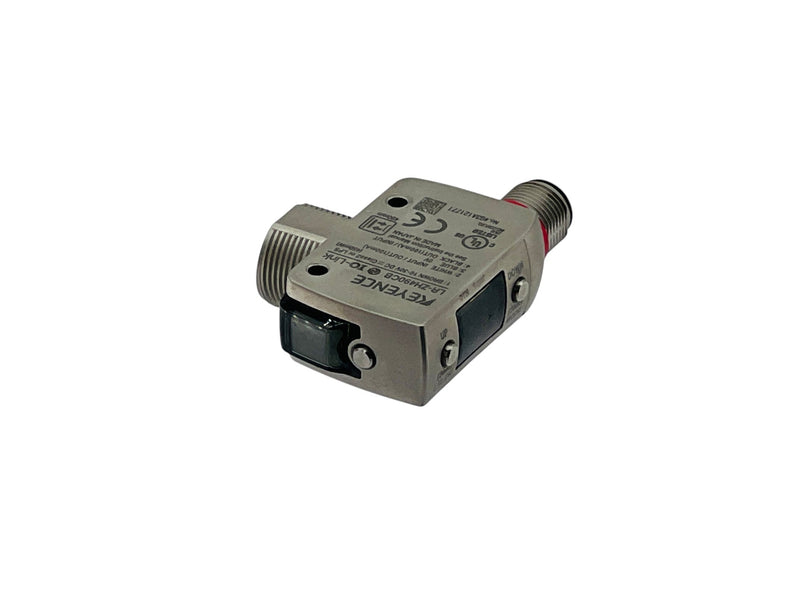

The Keyence LR-ZH490CB is a self-contained CMOS laser sensor designed for distance-based object detection and position monitoring. It features a 25–490 mm detection range, a 660 nm red laser, selectable NPN/PNP output, and IO-Link communication. Its stainless steel housing, M18 threaded mounting, and M12 connector allow installation in demanding factory environments.
It is used in automated assembly lines, conveyor systems, packaging machinery, component detection, positioning systems, and manufacturing equipment requiring precise non-contact sensing.
Condition: Used
What's included: Keyence LR-ZH490CB laser sensor only, as pictured
Manufacturer: Keyence Corporation
Model: LR-ZH490CB
Part Number: LR-ZH490CB
Product Type: CMOS Laser Sensor
Sensor Type: Distance-Based Photoelectric Sensor
Detection Range: 25–490 mm
Light Source: Red Laser, 660 nm
Laser Class: Class 2
Output Type: NPN/PNP Selectable
Maximum Output Current: 100 mA
Communication: IO-Link V1.1, COM2
Communication Speed: 38.4 kbps
Operating Voltage: 10–30 VDC
Power Consumption: 450 mW Maximum
Response Time: 1.5 / 10 / 50 ms Selectable
Laser Spot Size: Approximately 3 mm Diameter
Display: 3-Digit 7-Segment Display
Switching Modes: Light-ON / Dark-ON
Connection Type: M12 4-Pin Connector
Mounting Type: M18 Threaded Mount
Protection Rating: IP68, IP69K
Housing Material: SUS316L Stainless Steel
Operating Temperature: -10°C to +50°C
Weight: Approximately 75 g
Country of Manufacture: Japan
Applications: Object Detection, Position Monitoring, Conveyor Automation, Packaging Machinery, Factory Automation
The Keyence LR-ZH490CB is a self-contained CMOS laser sensor designed for distance-based object detection and position monitoring. It features a 25–490 mm detection range, a 660 nm red laser, selectable NPN/PNP output, and IO-Link communication. Its stainless steel housing, M18 threaded mounting, and M12 connector allow installation in demanding factory environments.
It is used in automated assembly lines, conveyor systems, packaging machinery, component detection, positioning systems, and manufacturing equipment requiring precise non-contact sensing.
Condition: Used
What's included: Keyence LR-ZH490CB laser sensor only, as pictured
Manufacturer: Keyence Corporation
Model: LR-ZH490CB
Part Number: LR-ZH490CB
Product Type: CMOS Laser Sensor
Sensor Type: Distance-Based Photoelectric Sensor
Detection Range: 25–490 mm
Light Source: Red Laser, 660 nm
Laser Class: Class 2
Output Type: NPN/PNP Selectable
Maximum Output Current: 100 mA
Communication: IO-Link V1.1, COM2
Communication Speed: 38.4 kbps
Operating Voltage: 10–30 VDC
Power Consumption: 450 mW Maximum
Response Time: 1.5 / 10 / 50 ms Selectable
Laser Spot Size: Approximately 3 mm Diameter
Display: 3-Digit 7-Segment Display
Switching Modes: Light-ON / Dark-ON
Connection Type: M12 4-Pin Connector
Mounting Type: M18 Threaded Mount
Protection Rating: IP68, IP69K
Housing Material: SUS316L Stainless Steel
Operating Temperature: -10°C to +50°C
Weight: Approximately 75 g
Country of Manufacture: Japan
Applications: Object Detection, Position Monitoring, Conveyor Automation, Packaging Machinery, Factory Automation
