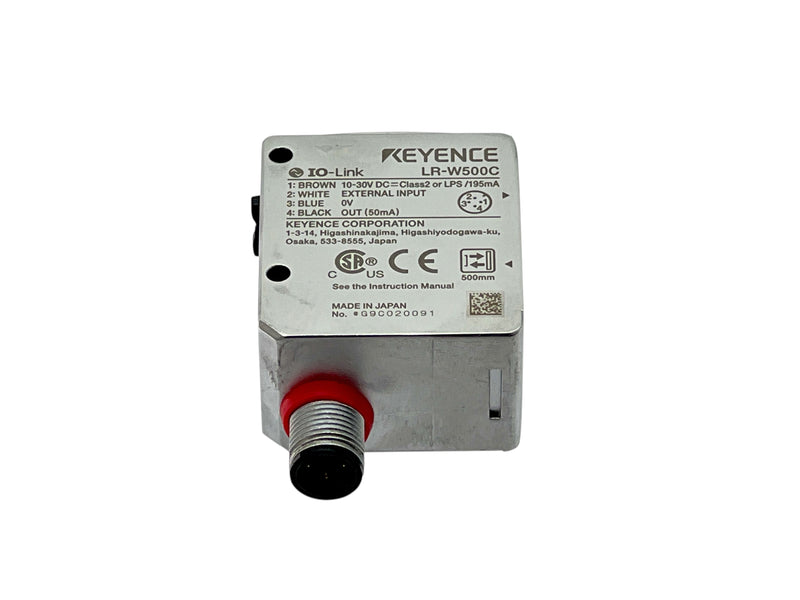

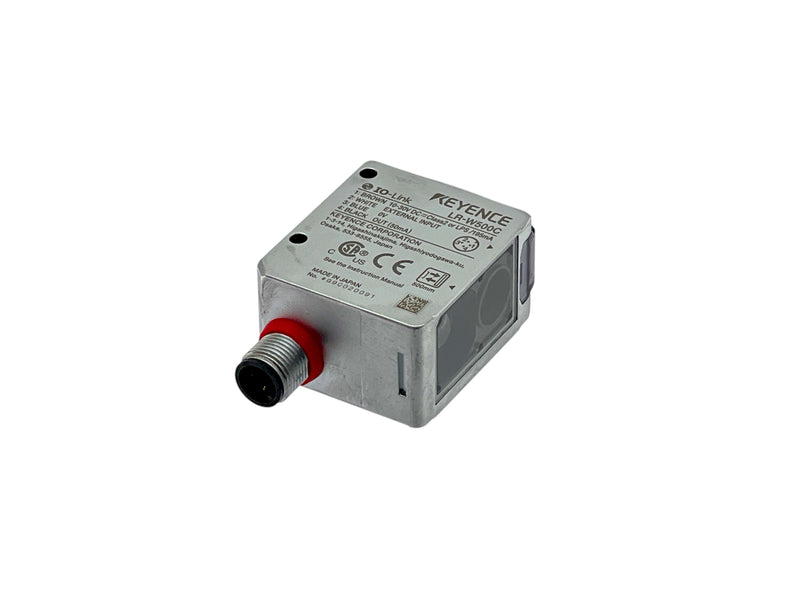

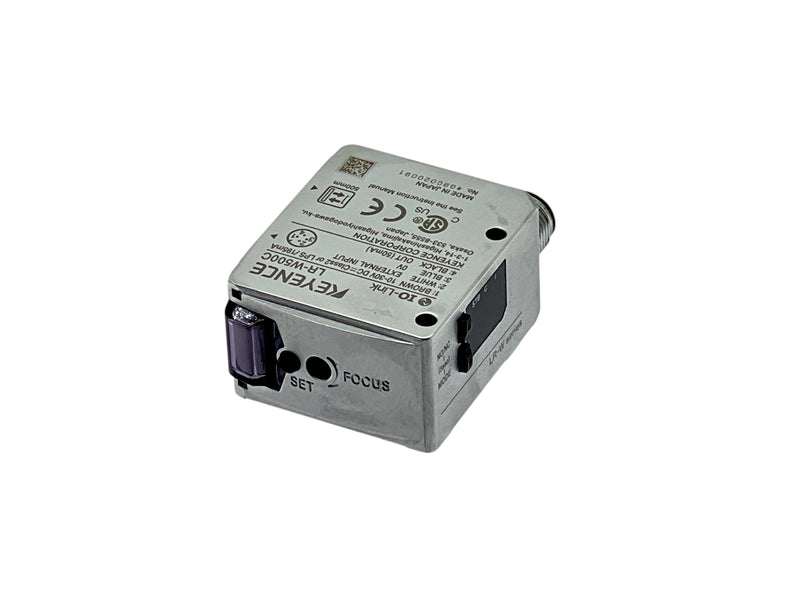

The KEYENCE LR-W500C is a self-contained full-spectrum photoelectric sensor with a white LED light source, adjustable detection spot, and a 30 to 500 mm sensing range. It operates on 10 to 30 VDC and features selectable NPN/PNP switching output, IO-Link communication, and a four-pin M12 connector.
Used for optical presence detection and appearance differentiation in automated production and inspection systems. Adjustable response times and timer functions allow integration with machine sequencing and product detection tasks.
Condition: Used
What's included: Sensor as pictured
Manufacturer: KEYENCE
Model: LR-W500C
Detection range: 30 to 500 mm
Light source: White LED
Supply voltage: 10 to 30 VDC, Class 2 or LPS
Control output: Selectable NPN/PNP open collector; 50 mA maximum; selectable N.O./N.C.
Connection: M12 four-pin connector
Communication: IO-Link
Response time: Selectable 200 µs, 1 ms, 10 ms, 100 ms, or 500 ms
External input: Selectable tuning or transmission off
Enclosure rating: IP65/IP67
Housing: Nickel-chrome-plated zinc die cast
Operating temperature: -20 to +50 °C, without freezing
Country of origin: Japan
