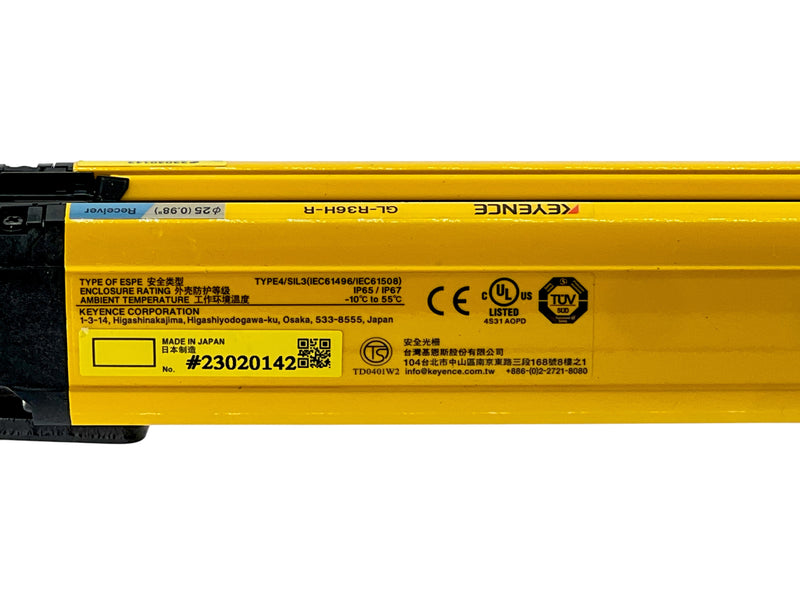

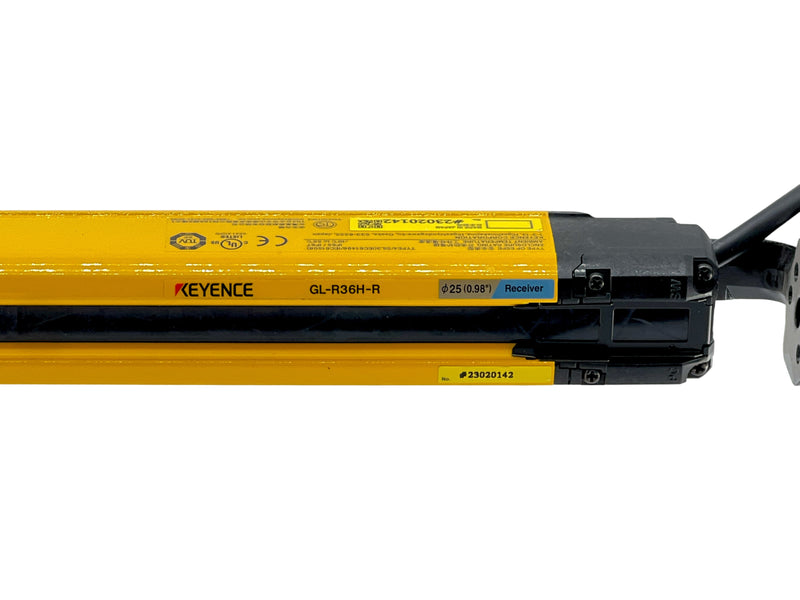

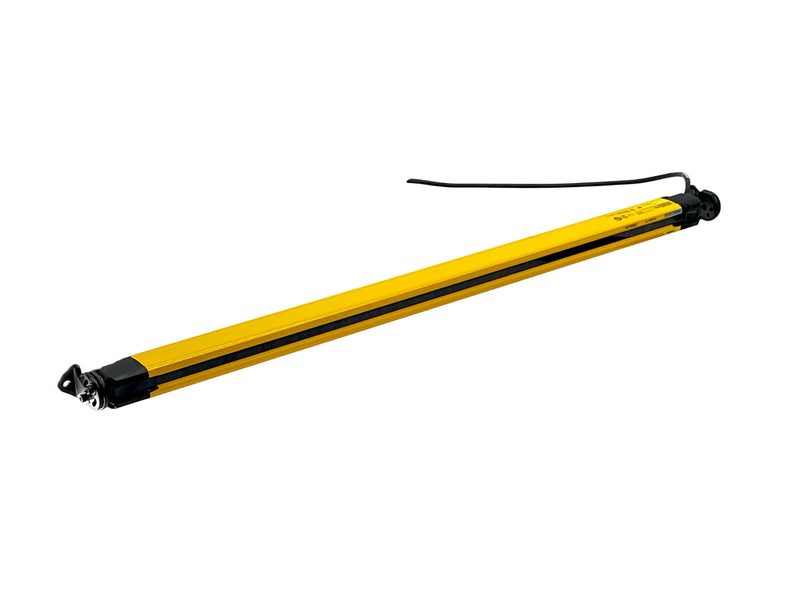

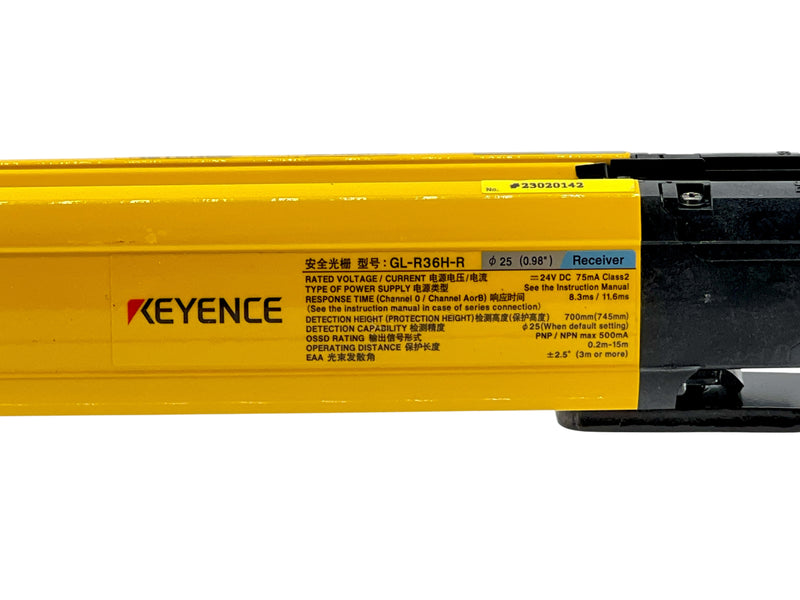

The KEYENCE GL-R36H-R safety light curtain receiver detects interruptions in a machine-guarding light barrier when paired with a compatible transmitter. It provides 25 mm detection capability over a 700 mm detection height.
Condition: Used
What's included: Receiver with attached cable and mounting hardware as pictured
Manufacturer: KEYENCE
Model: GL-R36H-R
Product Type: Hand-protection safety light curtain receiver
Optical Axes: 36
Detection Capability: 25 mm diameter
Detection Height: 700 mm
Protection Height: 745 mm
Operating Distance: 0.2–15 m with compatible transmitter
Rated Supply: 24 VDC, Class 2
Receiver Current Consumption: 75 mA maximum, excluding output loads
Safety Outputs: Two OSSD transistor outputs; PNP or NPN determined by cable type; 500 mA maximum load per output, reduced to 350 mA at 50–55°C
ON-to-OFF Response Time: 8.3 ms on Channel 0; 11.6 ms on Channel A or B
Safety Rating: Type 4 ESPE; SIL3
Enclosure Rating: IP65/IP67
Operating Temperature: -10 to +55°C, without freezing
Country of origin: Japan
The KEYENCE GL-R36H-R safety light curtain receiver detects interruptions in a machine-guarding light barrier when paired with a compatible transmitter. It provides 25 mm detection capability over a 700 mm detection height.
Condition: Used
What's included: Receiver with attached cable and mounting hardware as pictured
Manufacturer: KEYENCE
Model: GL-R36H-R
Product Type: Hand-protection safety light curtain receiver
Optical Axes: 36
Detection Capability: 25 mm diameter
Detection Height: 700 mm
Protection Height: 745 mm
Operating Distance: 0.2–15 m with compatible transmitter
Rated Supply: 24 VDC, Class 2
Receiver Current Consumption: 75 mA maximum, excluding output loads
Safety Outputs: Two OSSD transistor outputs; PNP or NPN determined by cable type; 500 mA maximum load per output, reduced to 350 mA at 50–55°C
ON-to-OFF Response Time: 8.3 ms on Channel 0; 11.6 ms on Channel A or B
Safety Rating: Type 4 ESPE; SIL3
Enclosure Rating: IP65/IP67
Operating Temperature: -10 to +55°C, without freezing
Country of origin: Japan
