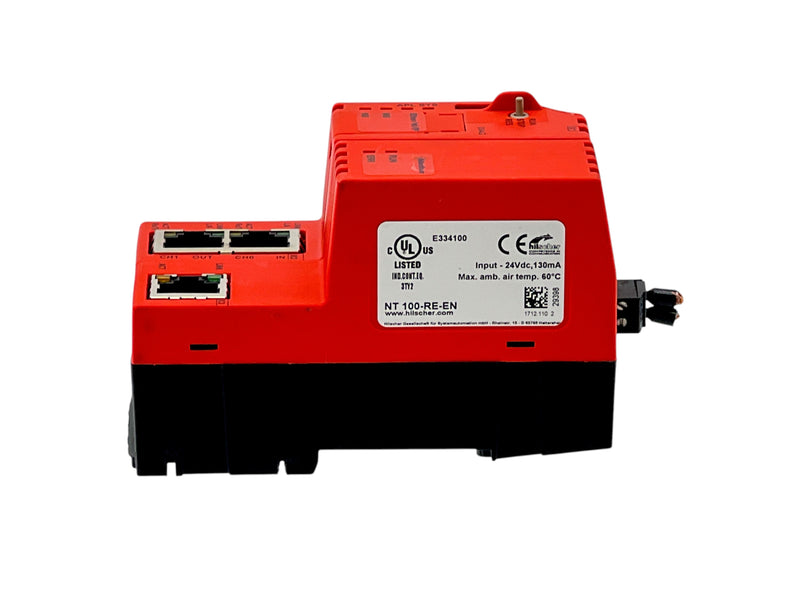

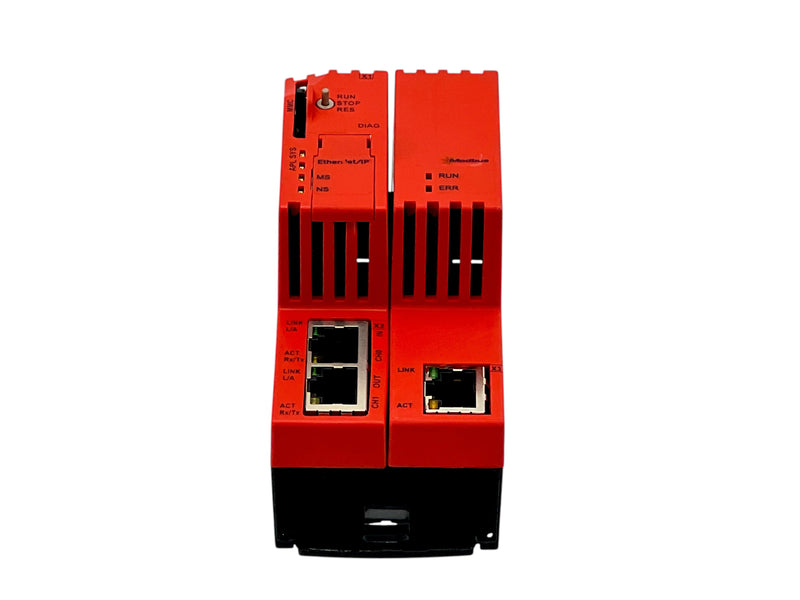

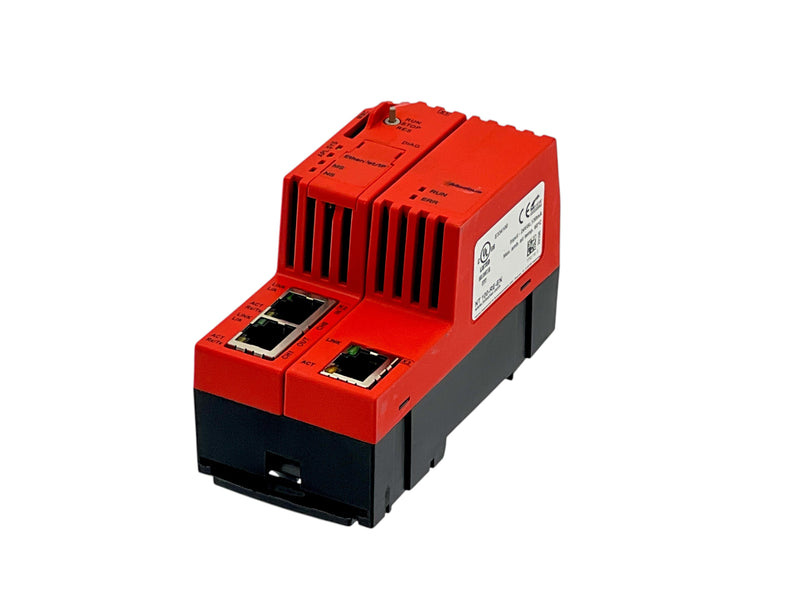

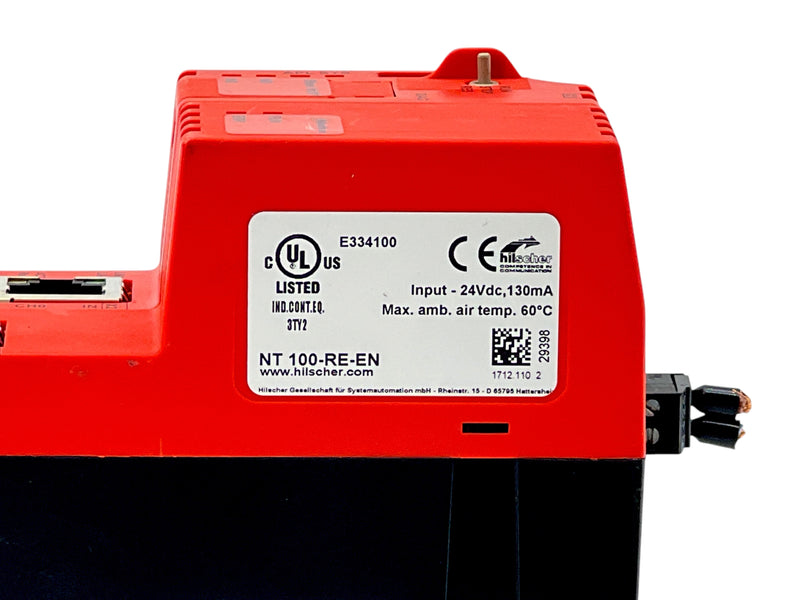

The Hilscher NT 100-RE-EN is an industrial gateway for converting data between Real-Time Ethernet and Ethernet networks. It operates on 24 V DC and provides three Ethernet ports, a USB configuration and diagnostic interface, and DIN rail mounting.
Used for connecting industrial automation networks and exchanging process data between machines, controllers, and Ethernet systems. Protocol conversion is configured through loadable firmware.
Condition: Used
What's included: Gateway with attached power terminal connector as pictured
Manufacturer: Hilscher
Model: NT 100-RE-EN
Product type: Real-Time Ethernet to Ethernet gateway
Supply voltage: 24 V DC ± 6 V
Rated input current: 130 mA at 24 V DC
Ethernet interfaces: Three RJ45 ports; 10BASE-T / 100BASE-TX
Diagnostic interface: 5-pin Mini-USB
Memory: 8 MB SDRAM; 4 MB flash
Memory card support: SD or MMC, maximum 2 GB
Operating temperature: 0 to 60 °C
Protection rating: IP20
Mounting: DIN rail
Dimensions: 100 × 52 × 70 mm, excluding connector
Country of origin: Germany
The Hilscher NT 100-RE-EN is an industrial gateway for converting data between Real-Time Ethernet and Ethernet networks. It operates on 24 V DC and provides three Ethernet ports, a USB configuration and diagnostic interface, and DIN rail mounting.
Used for connecting industrial automation networks and exchanging process data between machines, controllers, and Ethernet systems. Protocol conversion is configured through loadable firmware.
Condition: Used
What's included: Gateway with attached power terminal connector as pictured
Manufacturer: Hilscher
Model: NT 100-RE-EN
Product type: Real-Time Ethernet to Ethernet gateway
Supply voltage: 24 V DC ± 6 V
Rated input current: 130 mA at 24 V DC
Ethernet interfaces: Three RJ45 ports; 10BASE-T / 100BASE-TX
Diagnostic interface: 5-pin Mini-USB
Memory: 8 MB SDRAM; 4 MB flash
Memory card support: SD or MMC, maximum 2 GB
Operating temperature: 0 to 60 °C
Protection rating: IP20
Mounting: DIN rail
Dimensions: 100 × 52 × 70 mm, excluding connector
Country of origin: Germany
