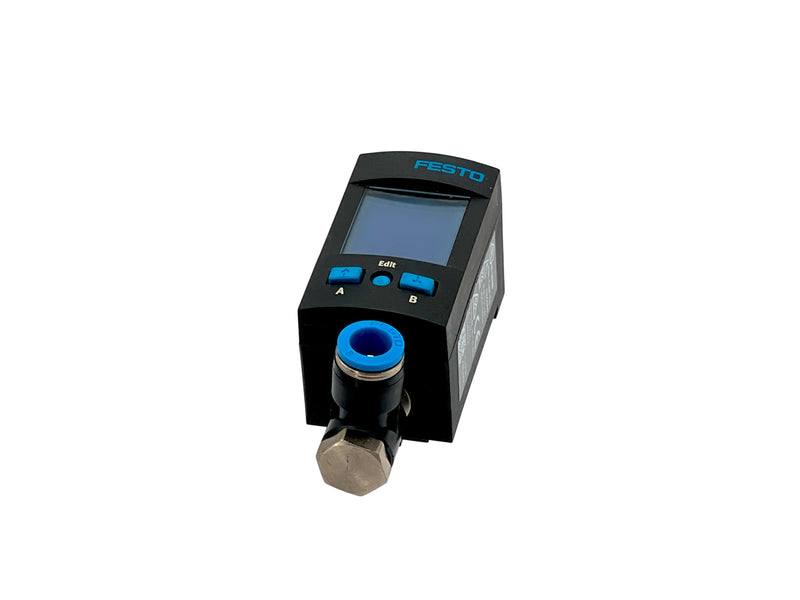

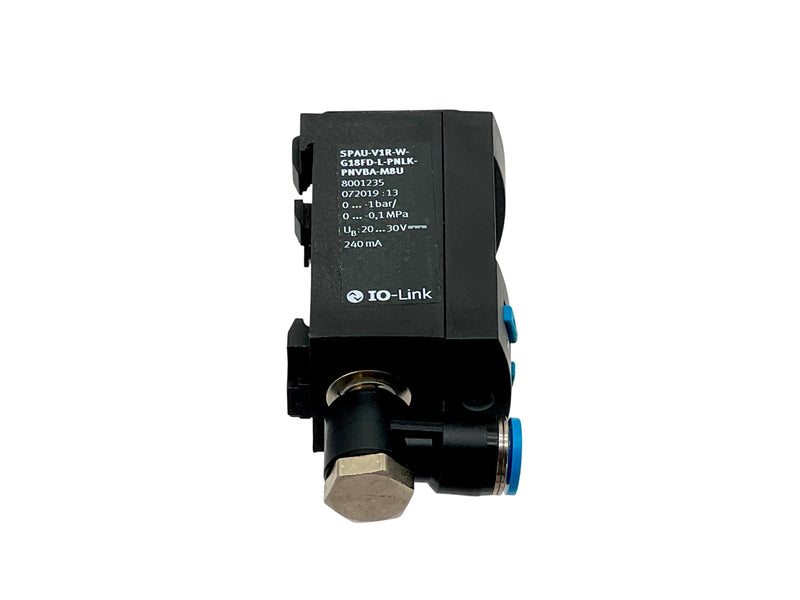

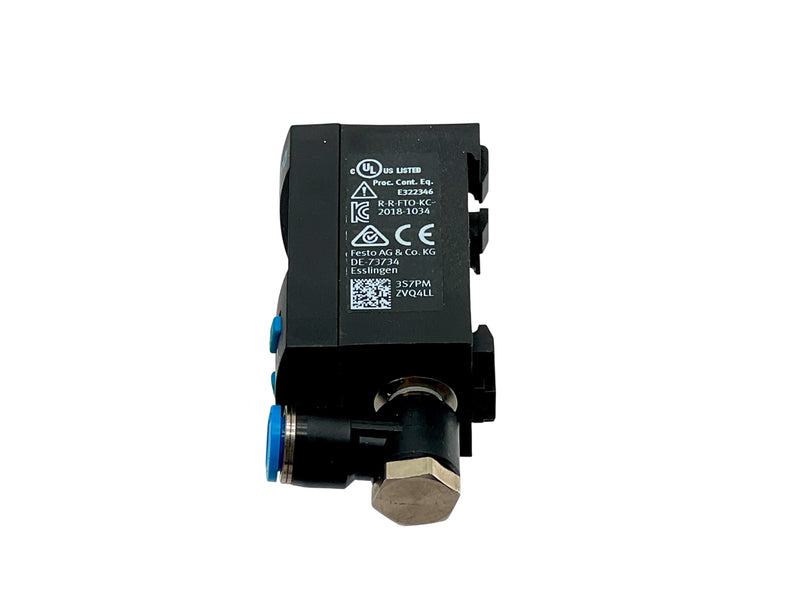

The Festo 8001235 SPAU-V1R-W-G18FD-L-PNLK-PNVBA-M8U measures relative vacuum pressure from 0 to -1 bar. It provides IO-Link communication for pressure monitoring in pneumatic systems.
Condition: Used
What's included: Pressure sensor with attached pneumatic elbow fitting and mounting bracket as pictured
Manufacturer: Festo
Model: SPAU-V1R-W-G18FD-L-PNLK-PNVBA-M8U
Part Number: 8001235
Product Type: Piezoresistive relative-pressure sensor
Measuring Range: 0 to -1 bar (0 to -0.1 MPa)
Supply Voltage: 20–30 V DC
Switching Outputs: Two switchable PNP/NPN outputs; programmable normally open or normally closed operation
Analog Output Options: 0–10 V, 1–5 V or 4–20 mA
Communication: IO-Link
Electrical Connection: 4-pin M8x1 connector
Pneumatic Connection: G1/8 sensor port with attached push-in elbow fitting
Display: Illuminated LCD
Accuracy: ±1.5% full scale
Operating Media: Compressed air and inert gases
Ambient and Media Temperature: 0–50 °C
Protection Rating: IP65/IP67
Mounting: Wall/surface bracket
Country of origin: Bulgaria
The Festo 8001235 SPAU-V1R-W-G18FD-L-PNLK-PNVBA-M8U measures relative vacuum pressure from 0 to -1 bar. It provides IO-Link communication for pressure monitoring in pneumatic systems.
Condition: Used
What's included: Pressure sensor with attached pneumatic elbow fitting and mounting bracket as pictured
Manufacturer: Festo
Model: SPAU-V1R-W-G18FD-L-PNLK-PNVBA-M8U
Part Number: 8001235
Product Type: Piezoresistive relative-pressure sensor
Measuring Range: 0 to -1 bar (0 to -0.1 MPa)
Supply Voltage: 20–30 V DC
Switching Outputs: Two switchable PNP/NPN outputs; programmable normally open or normally closed operation
Analog Output Options: 0–10 V, 1–5 V or 4–20 mA
Communication: IO-Link
Electrical Connection: 4-pin M8x1 connector
Pneumatic Connection: G1/8 sensor port with attached push-in elbow fitting
Display: Illuminated LCD
Accuracy: ±1.5% full scale
Operating Media: Compressed air and inert gases
Ambient and Media Temperature: 0–50 °C
Protection Rating: IP65/IP67
Mounting: Wall/surface bracket
Country of origin: Bulgaria
