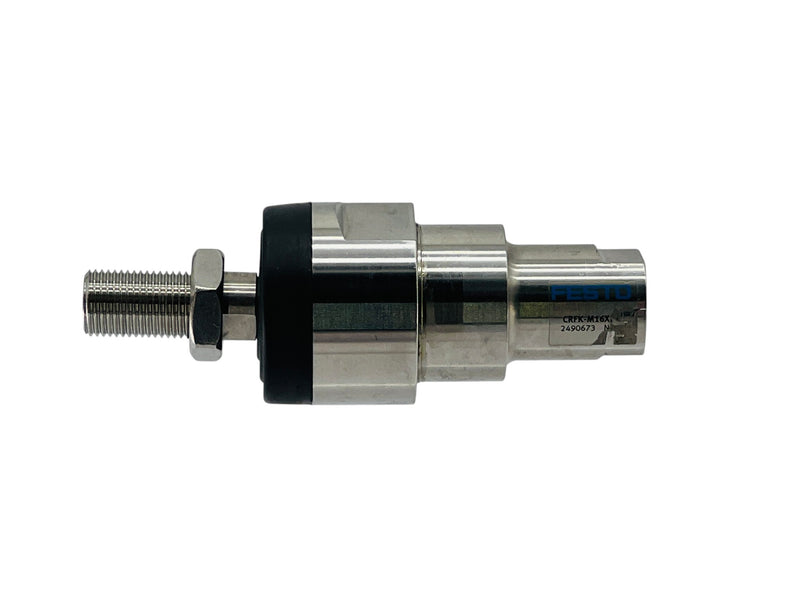

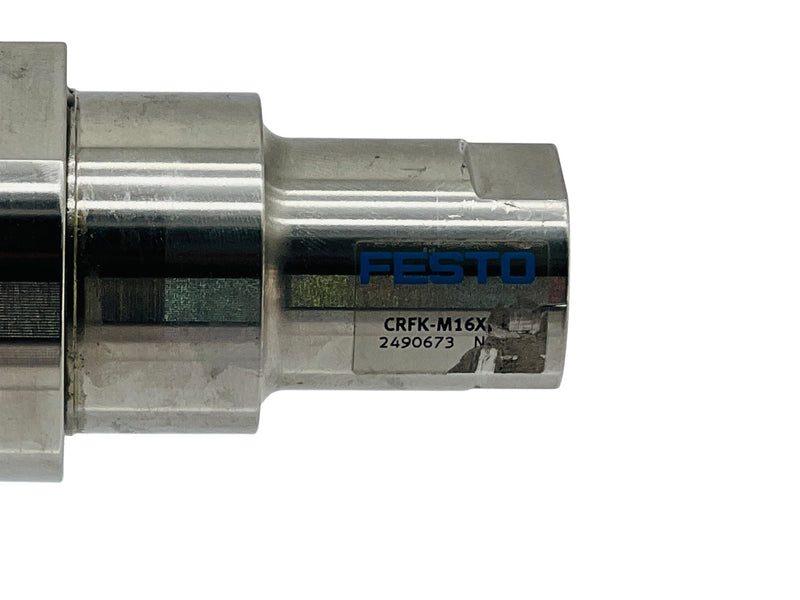

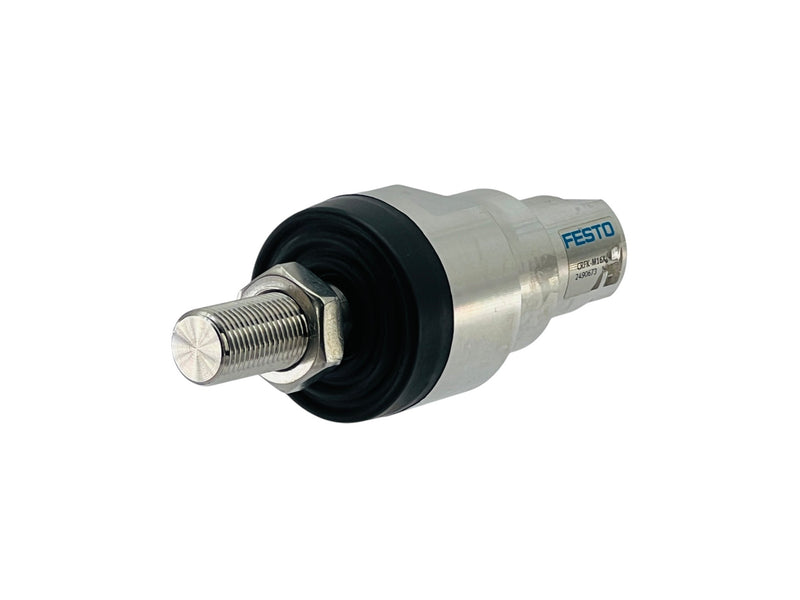

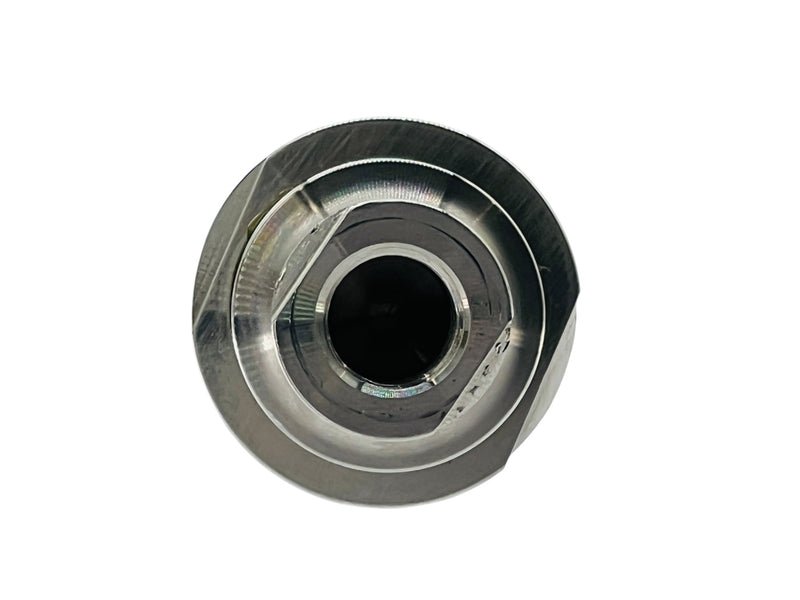

The Festo CRFK-M16X1,5 is a stainless steel self-aligning rod coupler designed to connect pneumatic cylinder piston rods to moving machine components while compensating for minor alignment deviations. It features an M16 × 1.5 threaded connection, high corrosion resistance, and a maximum load capacity of 4 kN.
It is used in pneumatic cylinder assemblies, automated machinery, linear motion systems, manufacturing equipment, and mechanical applications requiring compensation for radial and angular misalignment.
Condition: Used
What's included: Festo CRFK-M16X1,5 self-aligning rod coupler only, as pictured
Manufacturer: Festo
Model: CRFK-M16X1,5
Part Number: 2490673
Product Type: Self-Aligning Rod Coupler
Thread Size: M16 × 1.5
Maximum Load Capacity: 4 kN
Axial Play: 0.01–0.03 mm
Radial Compensation: ±1 mm
Corrosion Resistance Class: CRC 4
Housing Material: High-Alloy Stainless Steel
Threaded Bolt Material: High-Alloy Stainless Steel
Nut Material: High-Alloy Stainless Steel
Cap Material: EPDM
Operating Temperature: -20°C to +100°C
Product Weight: Approximately 670 g
Compliance: RoHS
Applications: Pneumatic Cylinder Connections, Linear Motion, Machine Assembly, Factory Automation
