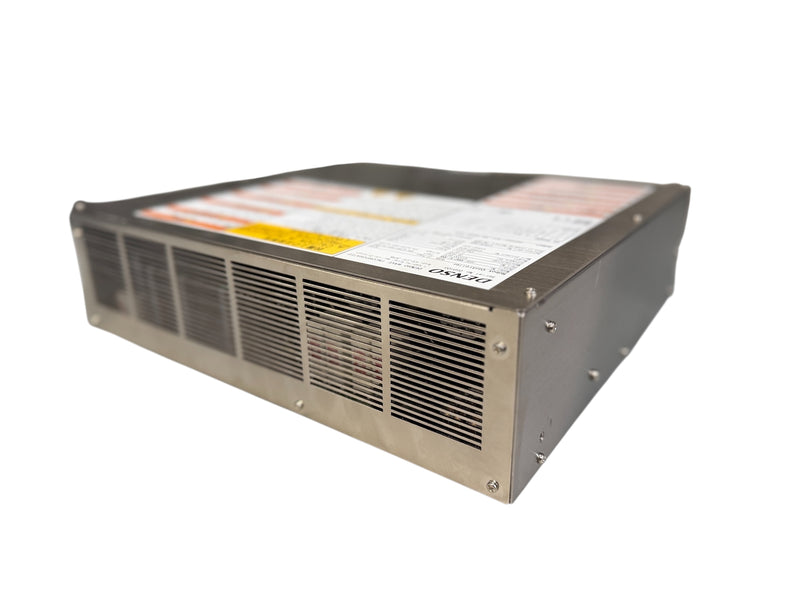

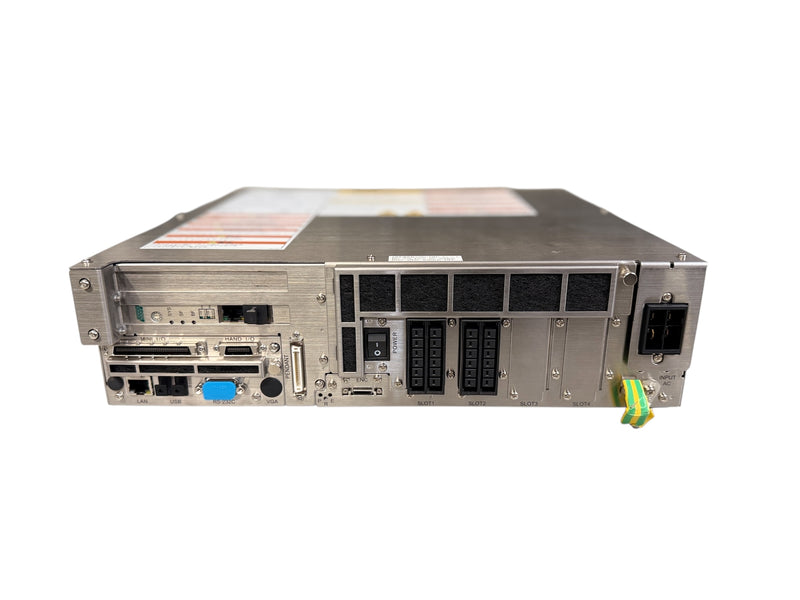

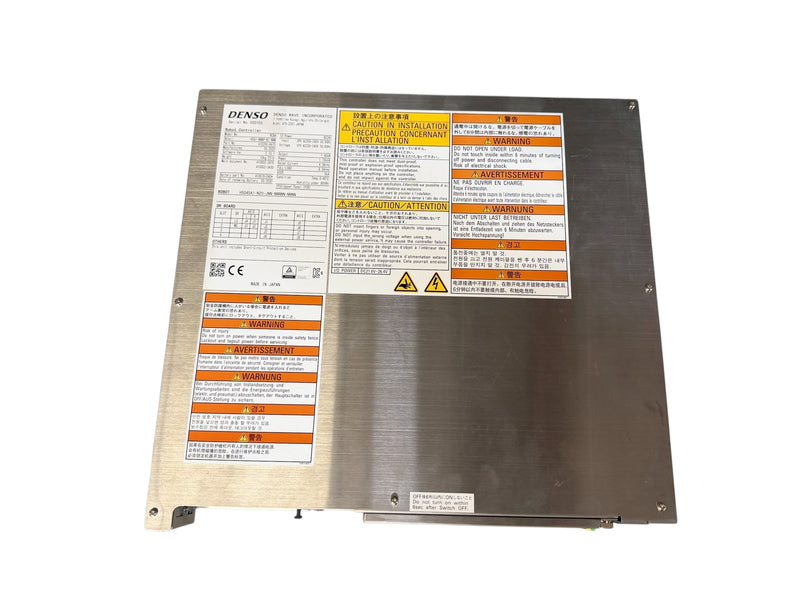

Denso Wave RC8A robot controller, configured for and paired with the Denso HS045A1 4-axis SCARA robot (robot serial 05D103). The RC8A is Denso’s compact, high-performance controller for its SCARA and 6-axis robots. It’s programmed in PacScript through Denso WINCAPS III, and it has built-in TÜV-certified functional safety. This unit runs on 200–240 VAC single- or three-phase power and has a fieldbus communication card installed, two servo amplifier boards for 4 axes, mini I/O and hand I/O interfaces, and a teach pendant port. Manufactured in Japan in 2020.
Condition: Used
What’s Included: One Denso RC8A robot controller, as pictured. The teach pendant, robot arm and robot cables are not included.
Shipping: Ships via ground freight or local pickup

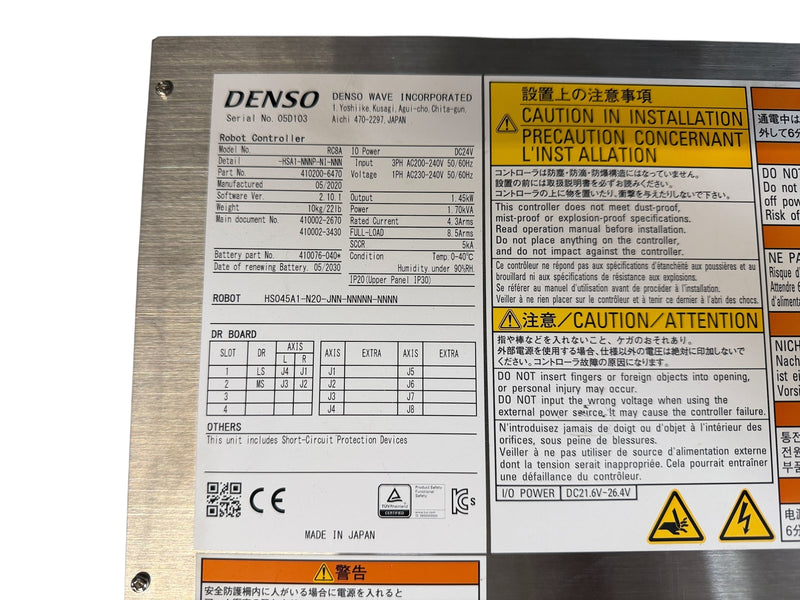

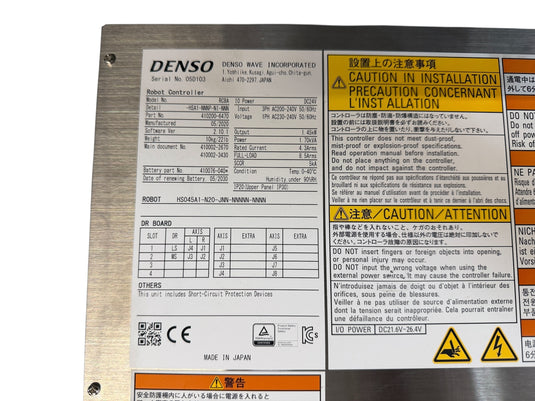

Specifications
Brand: Denso Wave
Model: RC8A Robot Controller
Detail Code: RC8A-HSA1-NNNP-NI-NNN
Part No.: 410200-6470
Serial No.: 05D103
Manufactured: 05/2020
Software Version: 2.10.1
Configured Robot: HS045A1-N20-JNN (4-axis SCARA)
Input Voltage: 3-phase 200–240 VAC or 1-phase 230–240 VAC, 50/60 Hz
Output: 1.45 kW
Power: 1.70 kVA
Rated Current: 4.3 Arms
Full-Load Current: 8.5 Arms
SCCR: 5 kA
I/O Power: 24 VDC (21.6–26.4 VDC)

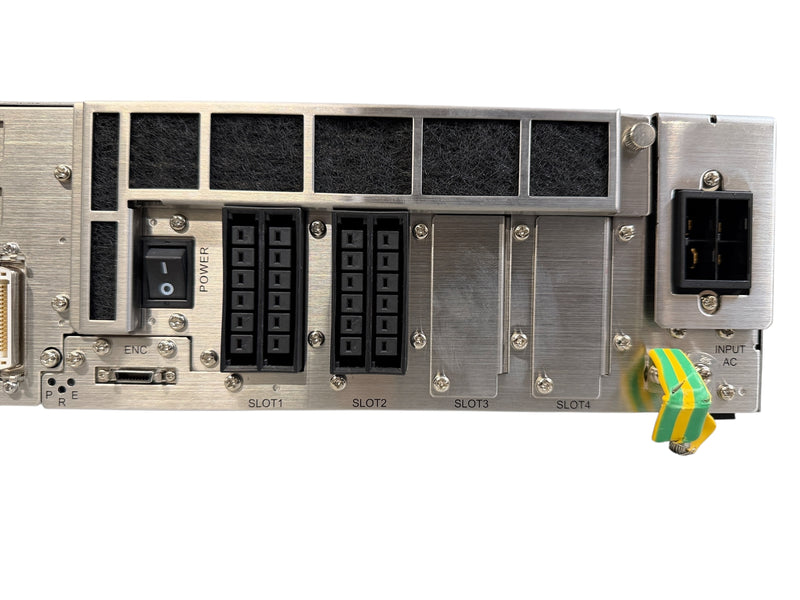

Servo Amplifier Boards: Slot 1 – LS (J1/J4), Slot 2 – MS (J2/J3); Slots 3–4 open

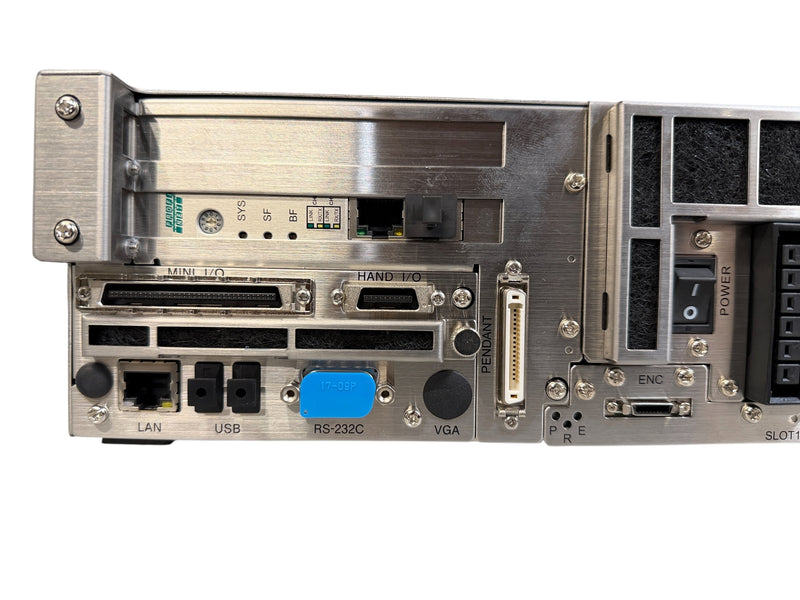

Interfaces: Mini I/O, Hand I/O, teach pendant, LAN (Ethernet), 2 x USB, RS-232C, VGA, encoder
Fieldbus: Communication card installed (SYS/SF/BF status LEDs, RJ45 port)
Safety: TÜV Rheinland certified functional safety
Protection: IP20 (upper panel IP30)
Operating Environment: 0–40°C, under 90% RH
Weight: 10 kg (22 lb)
Battery: Part No. 410076-040*, replace by 05/2030
Certifications: CE, KCs, TÜV Rheinland
Country of Origin: Japan
