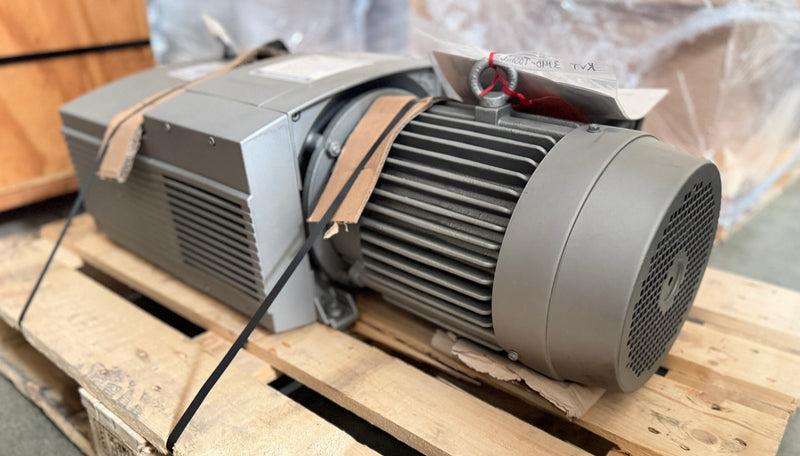

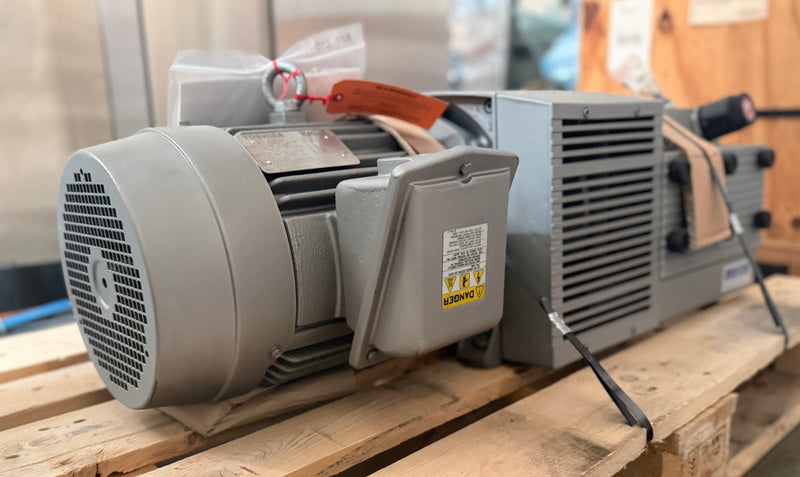

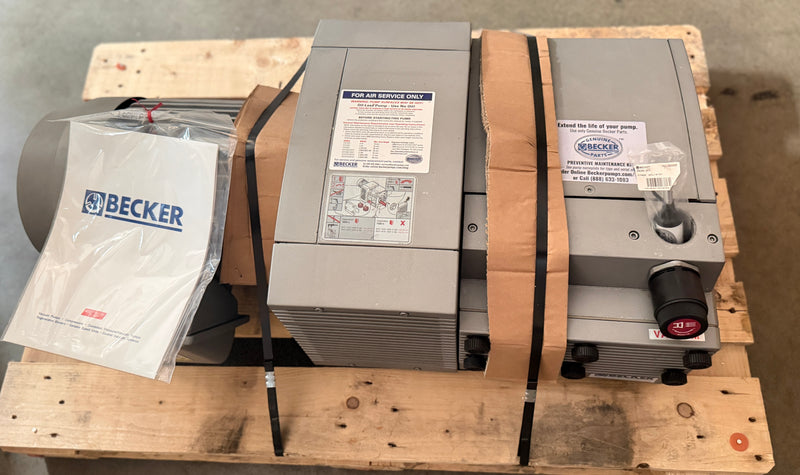

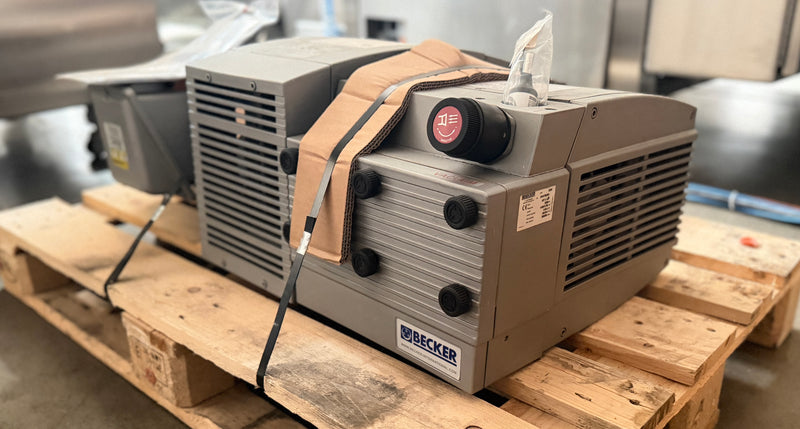

Becker KVT 3.140 oil-less (dry) rotary vane vacuum pump with a Toshiba 7.5 HP severe-duty motor, made in 2020. It's built for continuous-duty industrial vacuum: CNC router hold-down tables, packaging, pick-and-place, woodworking, printing, medical suction and material handling. The self-lubricating graphite vanes mean no oil, no oil mist and minimal maintenance.

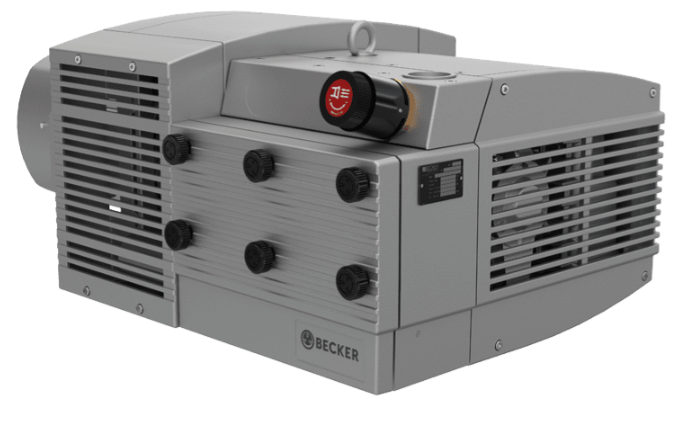

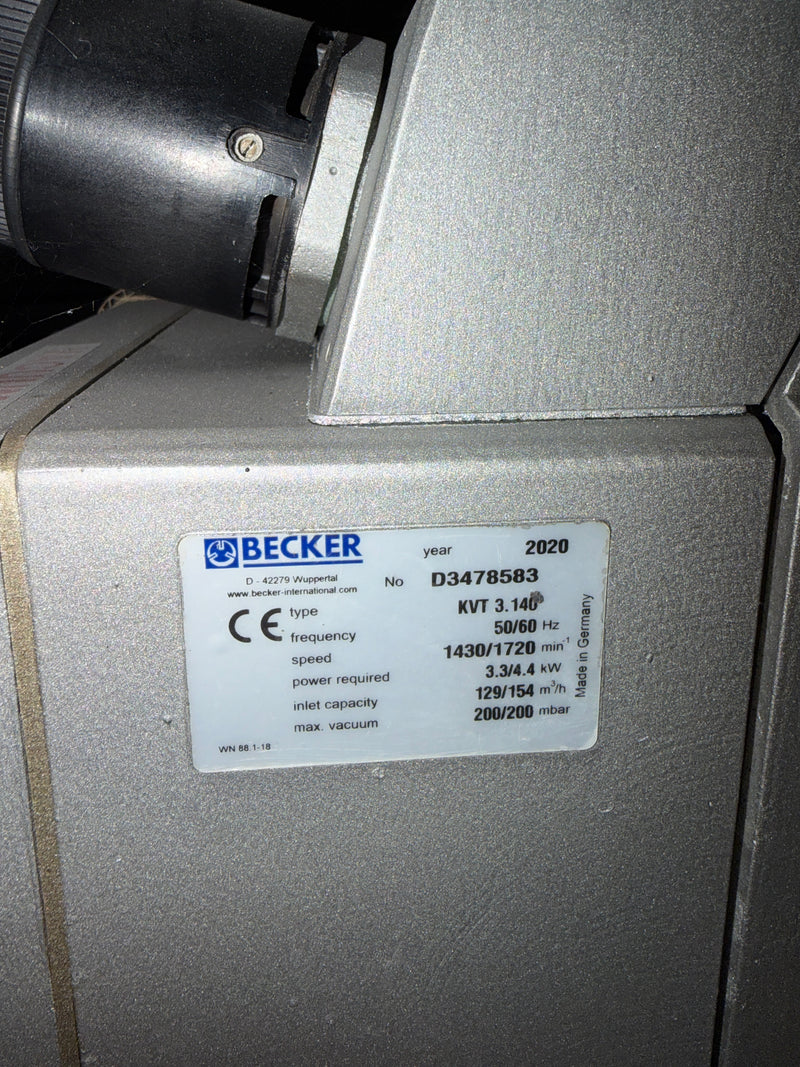

Pump (Becker KVT 3.140):
Serial: D3478583, made in Germany, 2020
Inlet capacity: 154 m³/h at 60 Hz (91 SCFM open flow); 129 m³/h at 50 Hz
Max vacuum: 200 mbar absolute (about 23.6" Hg)
Design: Oil-free rotary vane with graphite vanes
Built-in: Inlet filter, vacuum regulating valve, blow-off valve/silencer

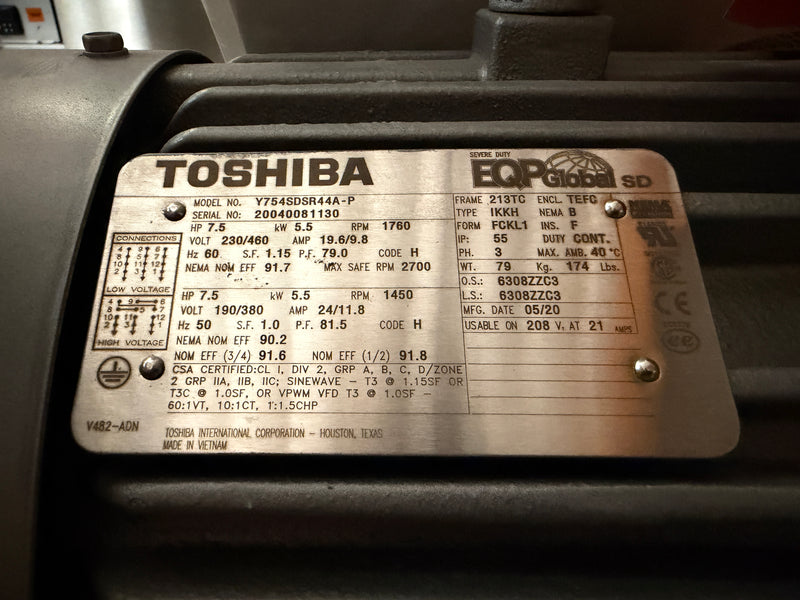

Motor (Toshiba EQP Global SD, severe duty):
Model: Y754SDSR44A-P, made 05/2020
Power: 7.5 HP (5.5 kW), 1760 RPM
Voltage: 230/460 V, 3-phase, 60 Hz; usable on 208 V at 21 A
Construction: 213TC frame, TEFC, IP55, Class F insulation, NEMA premium efficiency 91.7%
Ratings: VFD rated; CSA Class I Div 2 certified
Becker KVT 3.140 oil-less (dry) rotary vane vacuum pump with a Toshiba 7.5 HP severe-duty motor, made in 2020. It's built for continuous-duty industrial vacuum: CNC router hold-down tables, packaging, pick-and-place, woodworking, printing, medical suction and material handling. The self-lubricating graphite vanes mean no oil, no oil mist and minimal maintenance.
Pump (Becker KVT 3.140):
Serial: D3478583, made in Germany, 2020
Inlet capacity: 154 m³/h at 60 Hz (91 SCFM open flow); 129 m³/h at 50 Hz
Max vacuum: 200 mbar absolute (about 23.6" Hg)
Design: Oil-free rotary vane with graphite vanes
Built-in: Inlet filter, vacuum regulating valve, blow-off valve/silencer
Motor (Toshiba EQP Global SD, severe duty):
Model: Y754SDSR44A-P, made 05/2020
Power: 7.5 HP (5.5 kW), 1760 RPM
Voltage: 230/460 V, 3-phase, 60 Hz; usable on 208 V at 21 A
Construction: 213TC frame, TEFC, IP55, Class F insulation, NEMA premium efficiency 91.7%
Ratings: VFD rated; CSA Class I Div 2 certified
