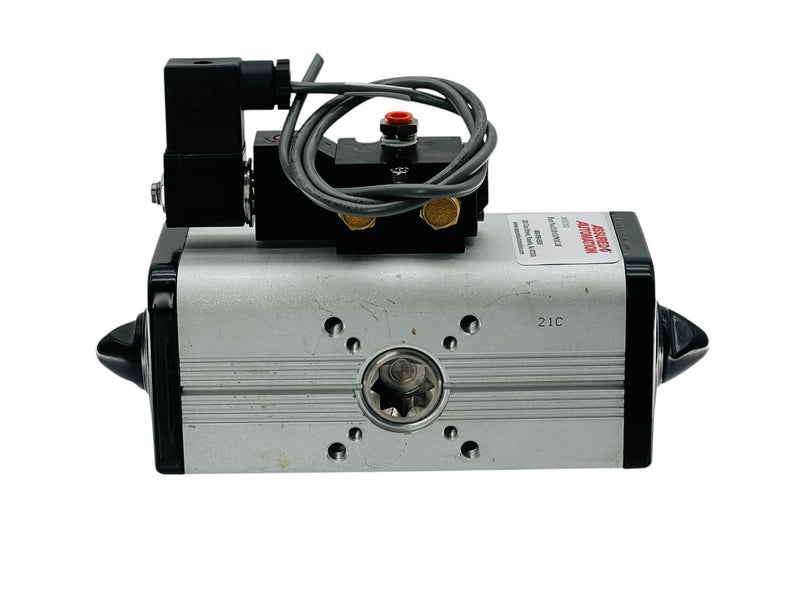

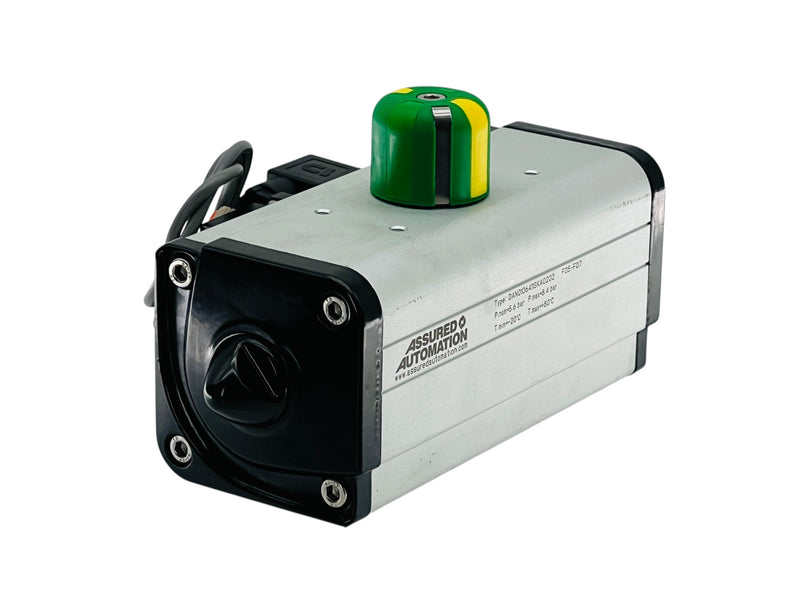

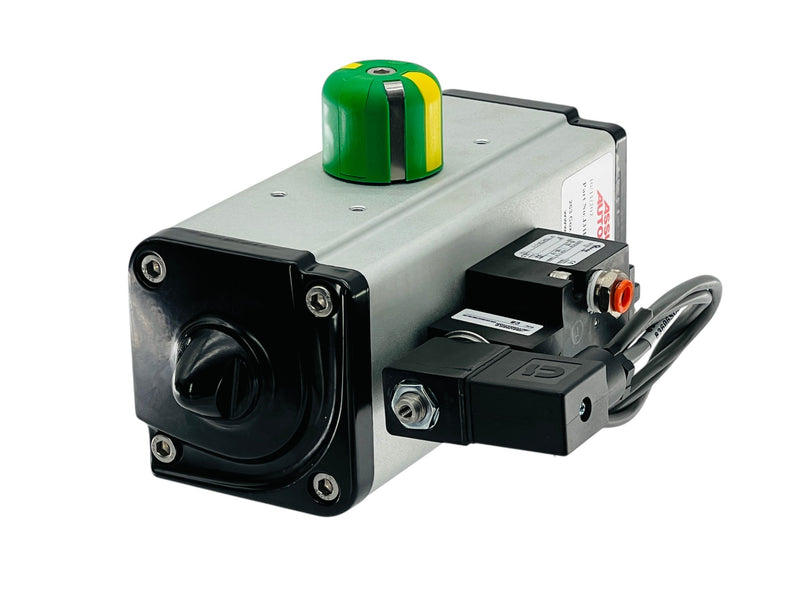

The Assured Automation J31DAXP8DC3B is an industrial double-acting pneumatic rotary valve actuator assembly featuring a scotch-yoke mechanism, aluminum housing, and integrated 24 VDC solenoid control valve. It uses compressed air to produce quarter-turn rotary motion for automated valve operation and features a visual position indicator and ISO 5211 mounting interface.
It is used in industrial process automation, pneumatic valve control systems, fluid handling equipment, manufacturing facilities, and automated ball and butterfly valve applications.
Condition: Used
What's included: Pneumatic actuator with mounted solenoid valve, attached cable, fittings, and visual position indicator, as pictured
Manufacturer: Assured Automation

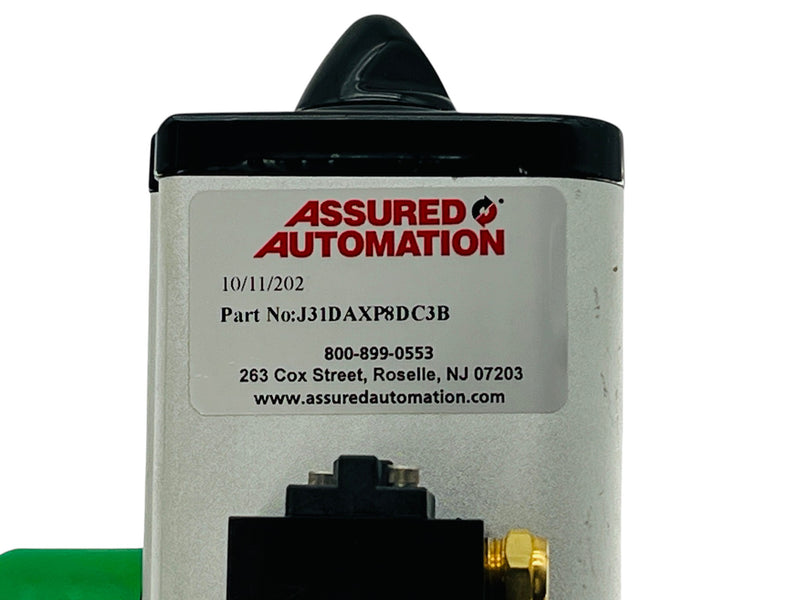

Part Number: J31DAXP8DC3B

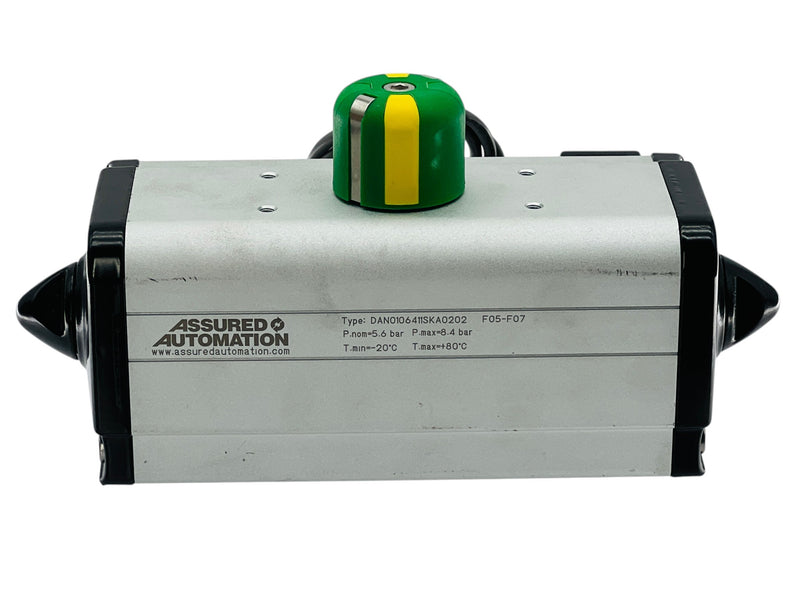

Actuator Type: DAN0106411SKA0202

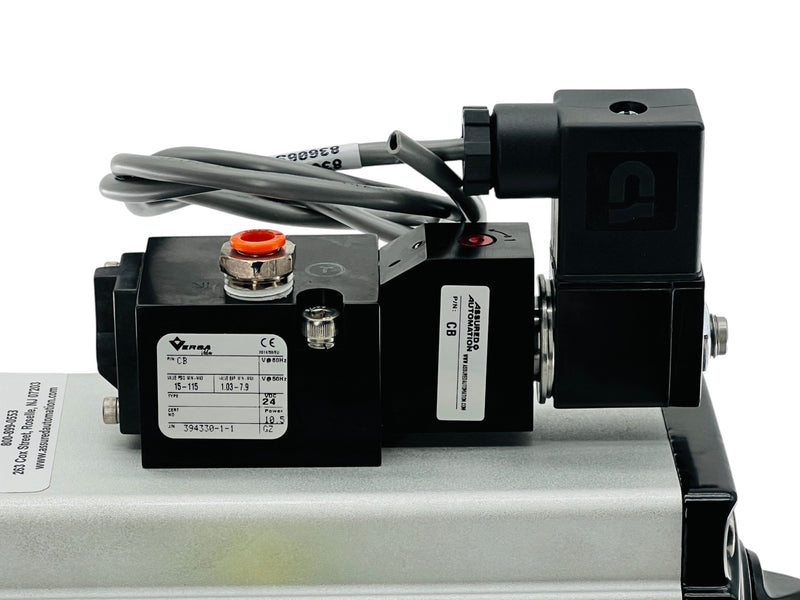

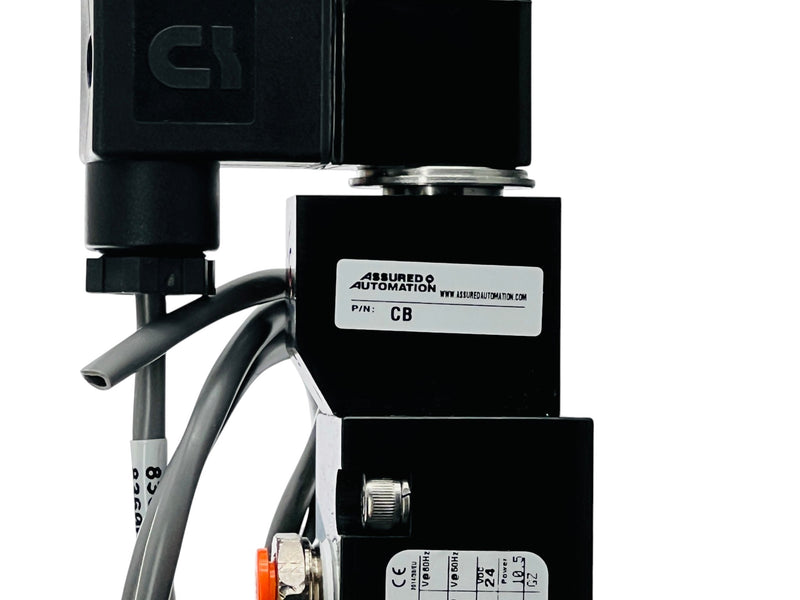

Solenoid Valve Part Number: CB
Product Type: Pneumatic Rotary Valve Actuator Assembly
Actuator Operation: Double Acting
Mechanism: Dual Scotch Yoke
Rotation: 90° Quarter-Turn
Nominal Air Pressure: 5.6 bar
Maximum Air Pressure: 8.4 bar
Operating Temperature: -20°C to +80°C
Solenoid Voltage: 24 VDC
Mounting Interface: ISO 5211 F05–F07
Housing Material: Aluminum
Position Indicator: Visual Open/Close Indicator
Control Type: Pneumatic with Electric Solenoid Valve
Applications: Industrial Valve Automation, Pneumatic Control Systems, Process Automation, Fluid Handling
