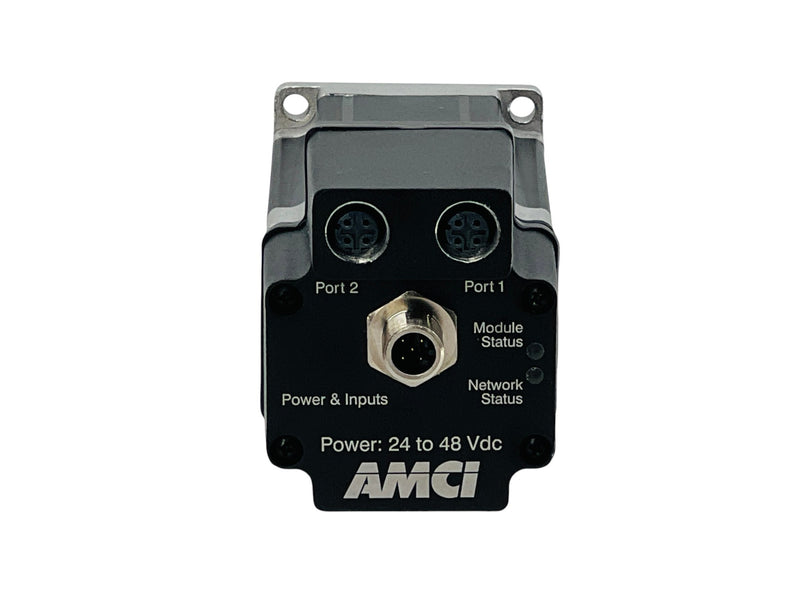

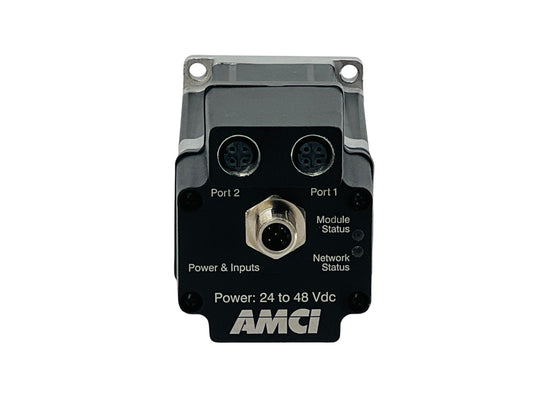

The AMCI SMD23E2-240E-M12S is a NEMA 23 integrated stepper motor featuring a built-in motion controller, microstepping drive, and incremental encoder. It provides 240 oz-in holding torque, 24–48 VDC operation, and dual-port Ethernet communication supporting EtherNet/IP and Modbus TCP. Its IP64-rated housing features a sealed motor shaft and M12 connectors for integration into automated motion control systems.
It is used in precision positioning systems, conveyor automation, packaging machinery, automated assembly equipment, indexing systems, and PLC-controlled motion applications requiring accurate and repeatable motor positioning.
Condition: Used

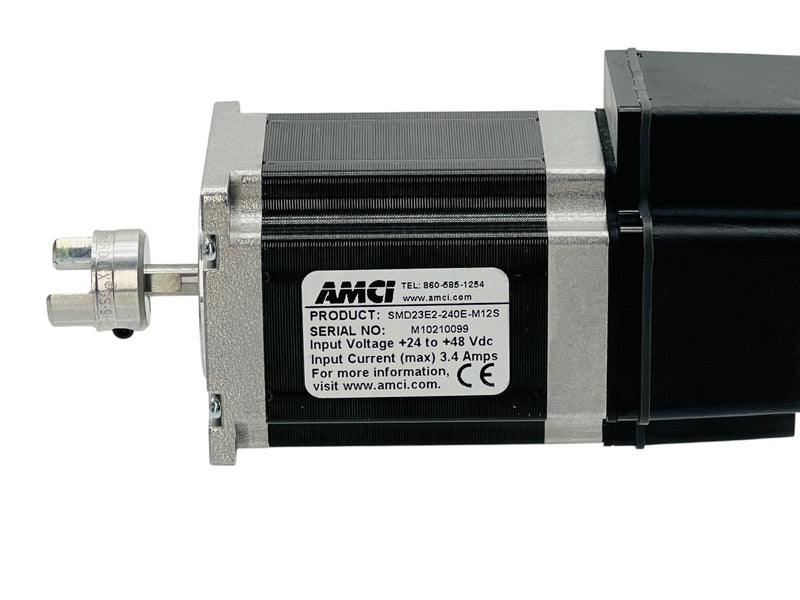

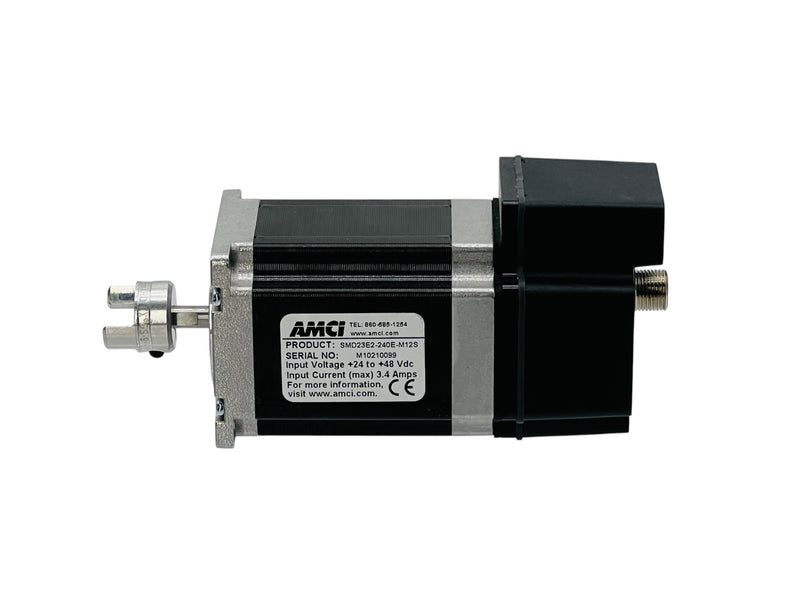

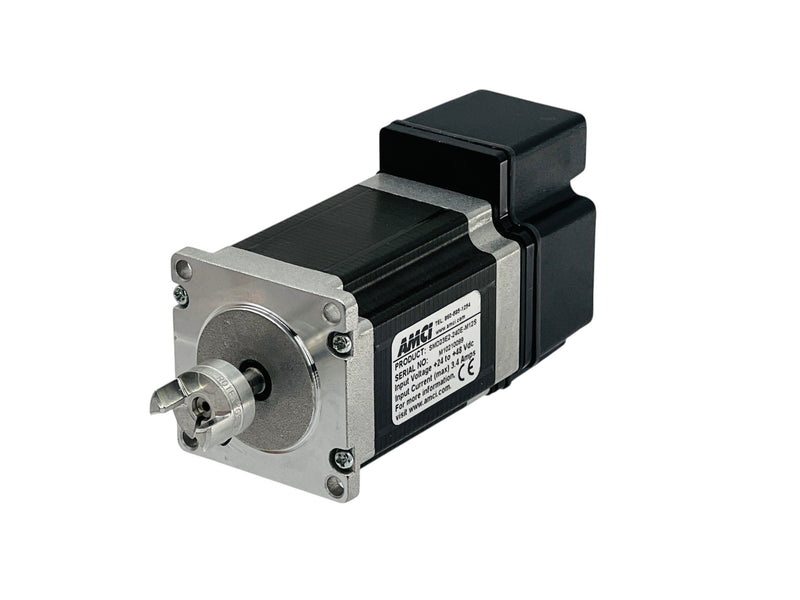

What's included: AMCI SMD23E2-240E-M12S integrated stepper motor with installed shaft-mounted metal pulley, as pictured
Manufacturer: Advanced Micro Controls Inc. (AMCI)
Model: SMD23E2-240E-M12S
Part Number: SMD23E2-240E-M12S
Product Type: Integrated Stepper Motor
Product Family: SMD23E2 Networked Series
Motor Type: Two-Phase Stepper Motor
Frame Size: NEMA 23
Holding Torque: 240 oz-in
Operating Voltage: 24–48 VDC
Maximum Input Current: 3.4 A (Nameplate)
Integrated Controller: Yes
Integrated Drive: Microstepping Drive
Encoder Type: Incremental Encoder
Encoder Resolution: Up to 4096 Counts per Revolution
Communication Protocols: EtherNet/IP, Modbus TCP
Network Interface: Dual-Port Ethernet with Embedded Switch
Ethernet Speed: 10/100 Mbps
Motor Resolution: Programmable 200–32,767 Steps per Revolution
Connection Type: M12 Connectors
Protection Rating: IP64
Shaft Protection: Sealed Shaft
Mounting Type: NEMA 23 Flange
Shaft Accessory: Installed Metal Pulley
Operating Temperature: -20°C to +50°C
Motor Weight: Approximately 1.24 kg Without Accessories
Applications: Motion Control, Precision Positioning, Conveyor Systems, Packaging Machinery, Automated Assembly, PLC Automation
