The AMCI SMD23E2-130E-M12P is a NEMA 23 integrated stepper motor featuring a built-in motion controller, microstepping drive, and incremental encoder. It provides 130 oz-in holding torque, 24–48 VDC operation, and an integrated dual-port Ethernet interface supporting EtherNet/IP and Modbus TCP communication. Its IP67-rated sealed housing and M12 connectors are designed for demanding automation environments.
It is used in precision positioning systems, conveyor automation, packaging machinery, automated assembly equipment, indexing systems, and PLC-controlled motion applications.
Condition: Used

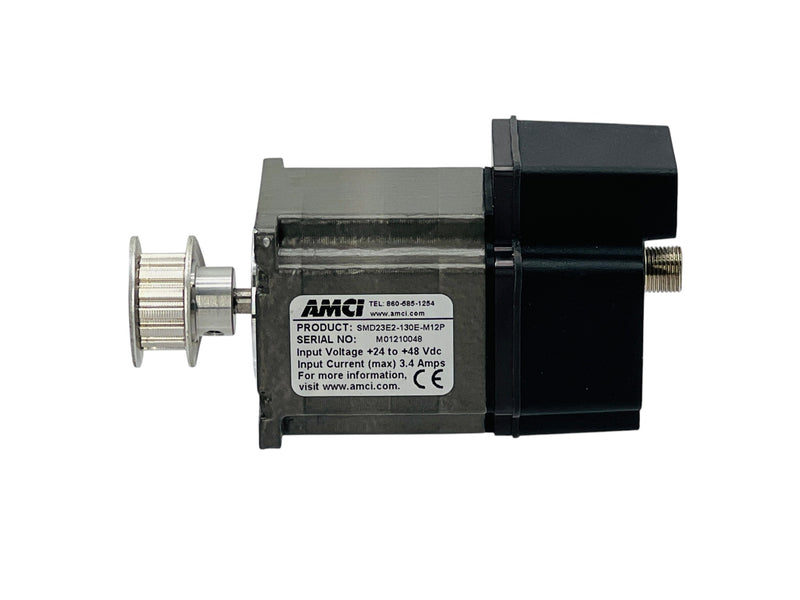

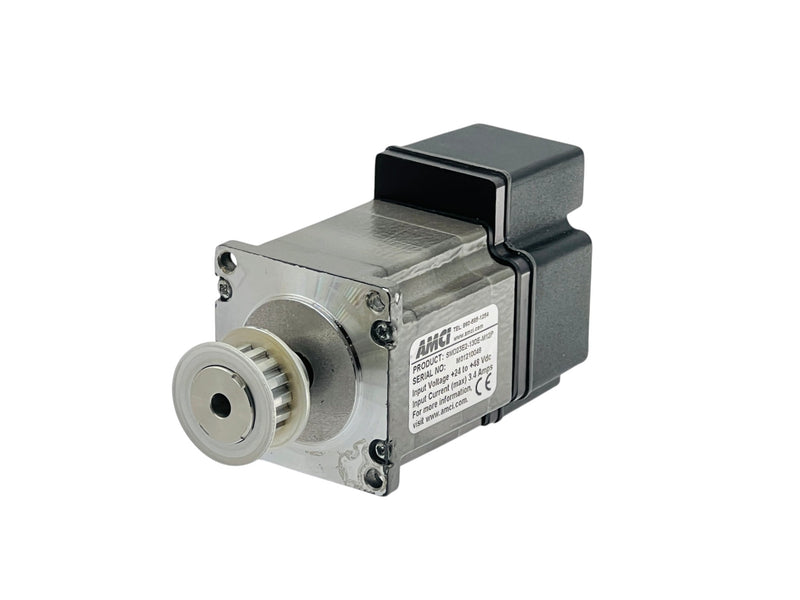

What's included: AMCI SMD23E2-130E-M12P integrated stepper motor with installed timing pulley, as pictured
Manufacturer: Advanced Micro Controls Inc. (AMCI)
Model: SMD23E2-130E-M12P
Part Number: SMD23E2-130E-M12P
Product Type: Integrated Stepper Motor
Product Family: SMD23E2 Networked Series
Motor Type: Two-Phase Stepper Motor
Frame Size: NEMA 23
Holding Torque: 130 oz-in
Operating Voltage: 24–48 VDC
Maximum Motor Current: 3.4 A
Integrated Controller: Yes
Integrated Drive: Microstepping Drive
Encoder Type: Incremental Encoder
Communication Protocols: EtherNet/IP, Modbus TCP
Network Interface: Dual-Port Ethernet
Ethernet Speed: 10/100 Mbps
Motor Resolution: Programmable 200–32,767 Steps per Revolution

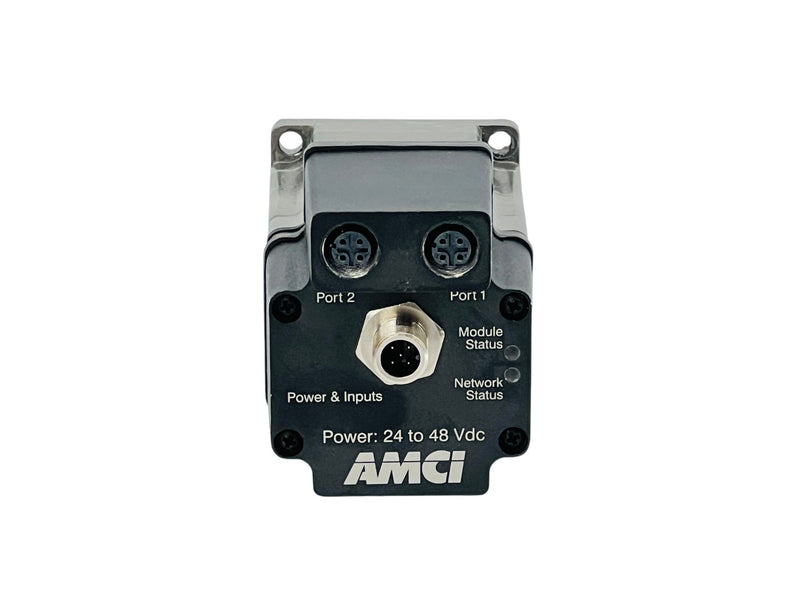

Connection Type: M12 Connectors
Protection Rating: IP67
Drive Technology: Bipolar MOSFET H-Bridge
Mounting Type: NEMA 23 Flange
Shaft Accessory: Installed Timing Pulley
Operating Temperature: -20°C to +50°C
Weight: Approximately 0.90 kg Without Accessories
Applications: Motion Control, Precision Positioning, Conveyor Systems, Packaging Machinery, PLC Automation
