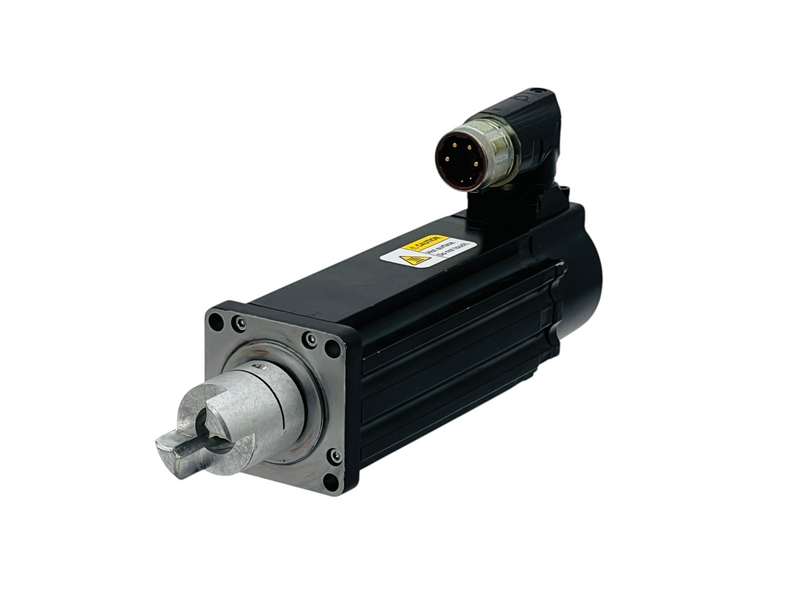

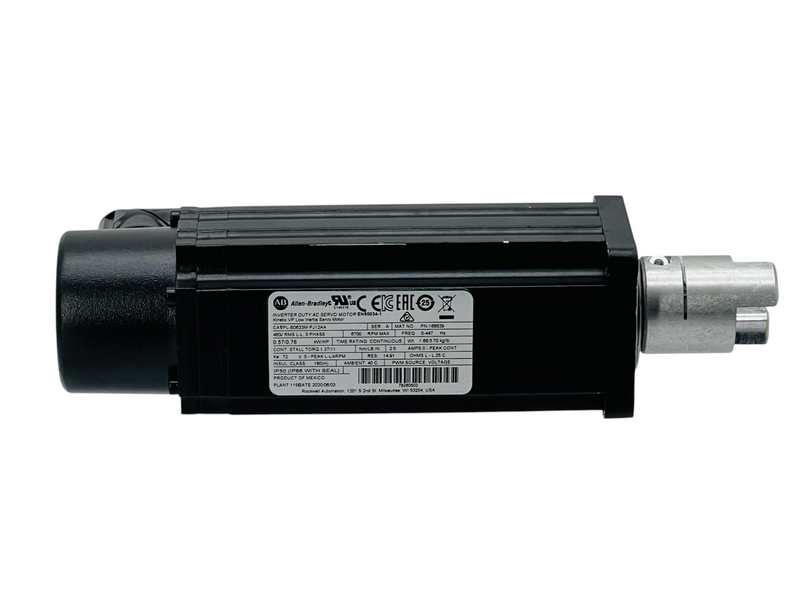

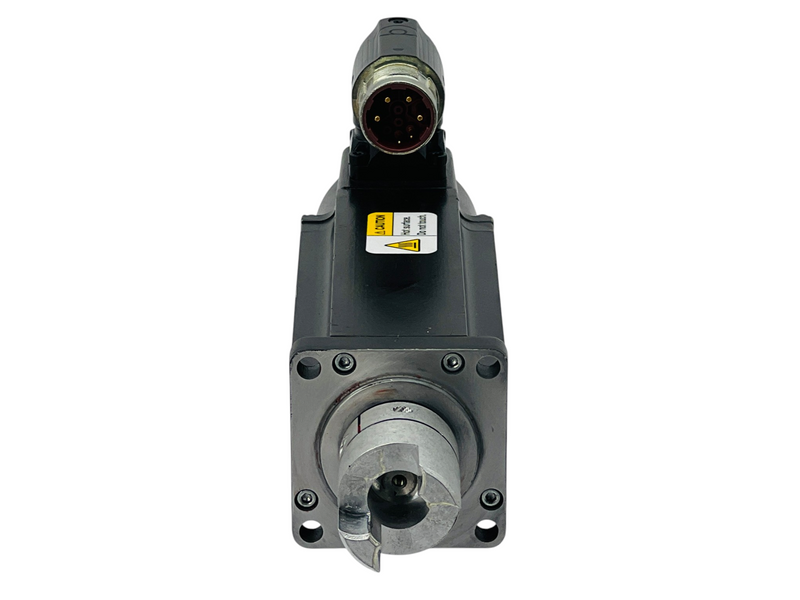

Allen-Bradley VPL-B0633M-PJ12AA Series A Kinetix VP low-inertia AC servo motor designed for precise closed-loop motion control. This 480 V three-phase motor provides 0.57 kW continuous output, 1.27 Nm continuous stall torque, and a maximum speed of 6700 rpm.
Used for positioning, indexing, packaging machinery, material handling, robotics, and automated production equipment.
Condition: Used
What's included: Pictured servo motor with attached shaft coupling; cables and drive are not included
Model: Kinetix VP Low Inertia
Catalog Number: VPL-B0633M-PJ12AA
Series: A
Material Number: PN-168839
Motor Type: Inverter-duty AC servo motor
Voltage: 480 V RMS line-to-line, three-phase
Continuous Output: 0.57 kW / 0.76 HP
Maximum Speed: 6700 rpm
Frequency Range: 0–447 Hz
Continuous Stall Torque: 1.27 Nm / 11 lb-in
Continuous Current: 2.5 A peak
Feedback: 18-bit single-turn and 12-bit multi-turn digital encoder
Shaft: Keyed
Connector: Single right-angle SpeedTec DIN
Holding Brake: None
Mounting: IEC metric flange, 63 mm bolt-circle frame
Duty Rating: Continuous
Protection Rating: IP50; IP66 when equipped with the proper shaft seal
Insulation Class: 180 (H)
Maximum Ambient Temperature: 40°C
Weight: 1.68 kg / 3.70 lb
Manufacturing Date: June 3, 2020
Country of Manufacture: Mexico
