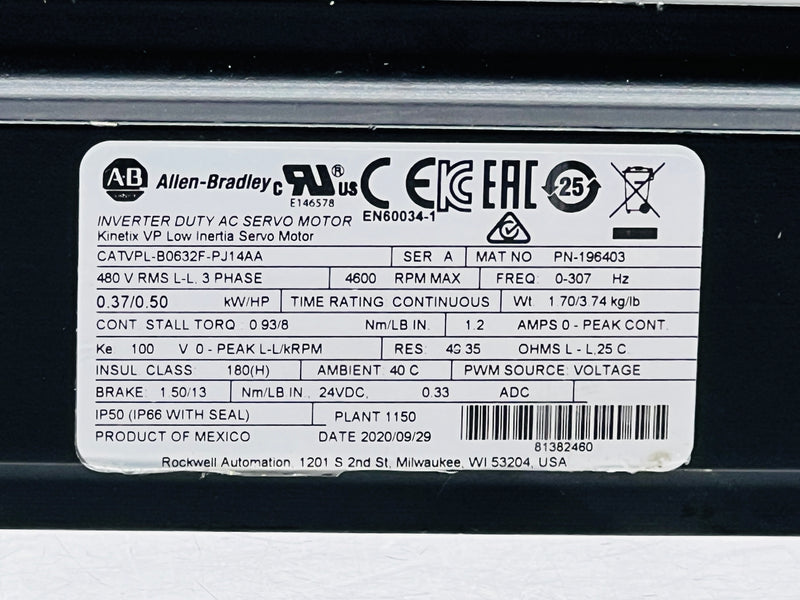

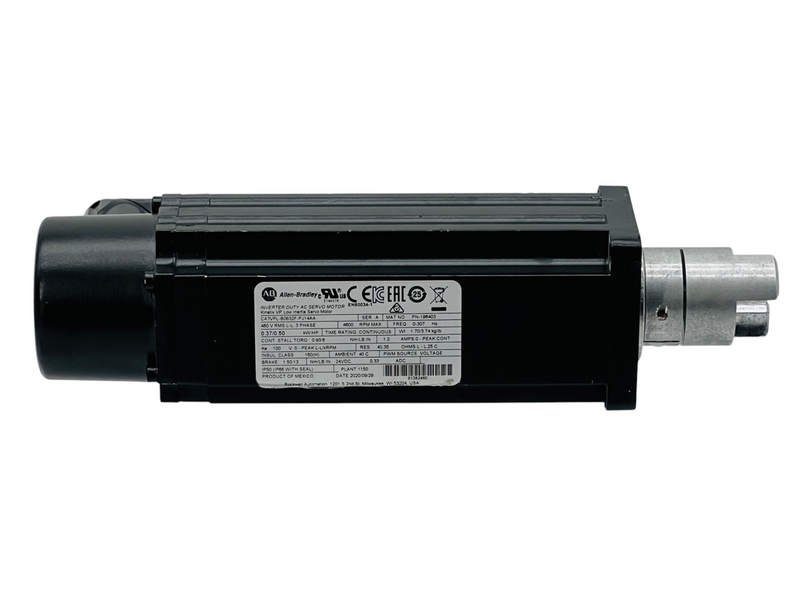

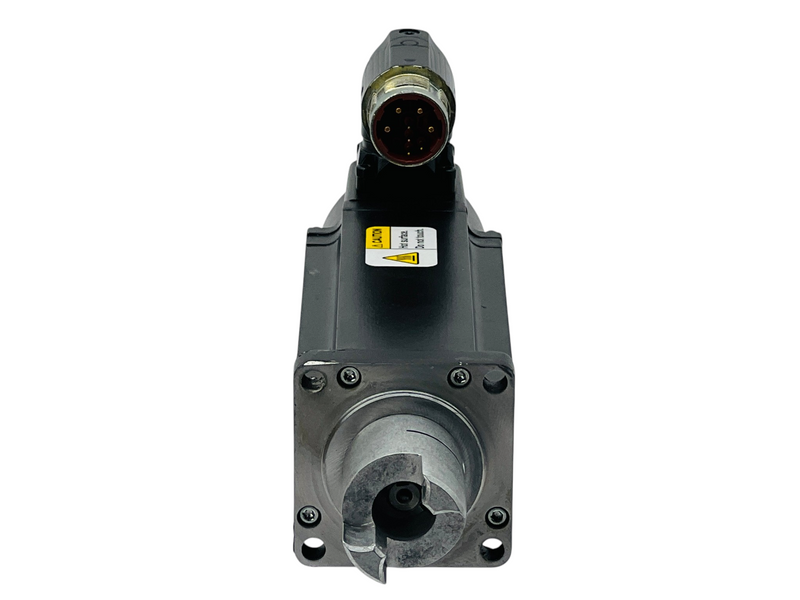

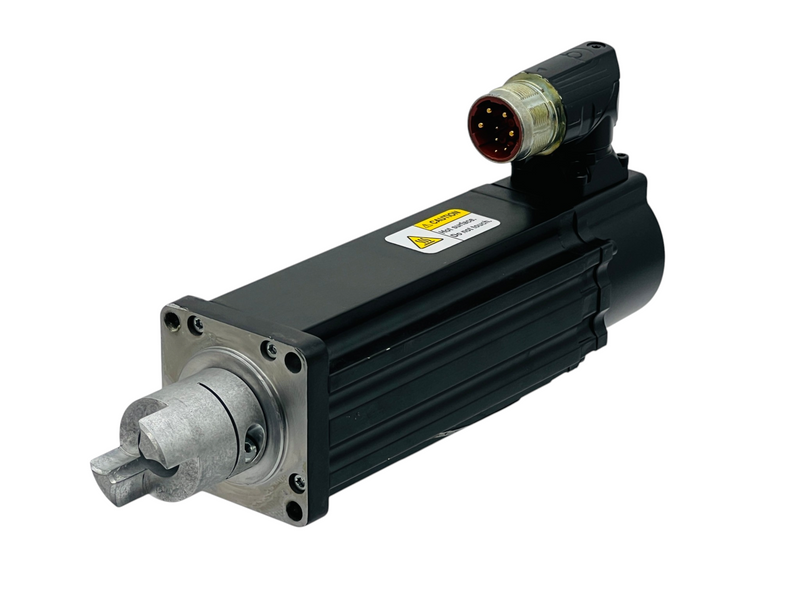

Allen-Bradley Kinetix VP VPL-B0632F-PJ14AA low-inertia AC servo motor for precise position, speed, and torque control in automated machinery. This 480 V three-phase motor delivers 0.37 kW (0.50 HP), 0.93 N·m continuous stall torque, and speeds up to 4600 RPM. It features multi-turn high-resolution feedback, a keyed shaft, single SpeedTec DIN connector, and 24 V DC holding brake.
Condition: Used, tested and working
What's included: Allen-Bradley servo motor shown in the photos
In stock: Ships within 1 business day
Model: Kinetix VP Low Inertia Servo Motor
Catalog Number: VPL-B0632F-PJ14AA
Series: Series A
Voltage: 480 V RMS line-to-line, three-phase
Rated Output: 0.37 kW / 0.50 HP
Rated and Maximum Speed: 4600 RPM
Continuous Stall Torque: 0.93 N·m / 8 lb-in
Peak Stall Torque: 2.69 N·m / 24 lb-in
Feedback: 18-bit single-turn and 12-bit multi-turn digital encoder
Frame Size: 63 mm bolt circle
Magnet Stacks: Two
Shaft: Keyed shaft
Connector: Single SpeedTec DIN connector
Holding Brake: 24 V DC, 1.50 N·m / 13 lb-in
Duty Rating: Continuous
Frequency: 0–307 Hz
Protection: IP50; IP66 when fitted with the appropriate shaft seal
Insulation Class: Class 180 (H)
Maximum Ambient Temperature: 40°C
Weight: 1.70 kg / 3.74 lb
Manufacturing Date: September 29, 2020
Country of Origin: Mexico
