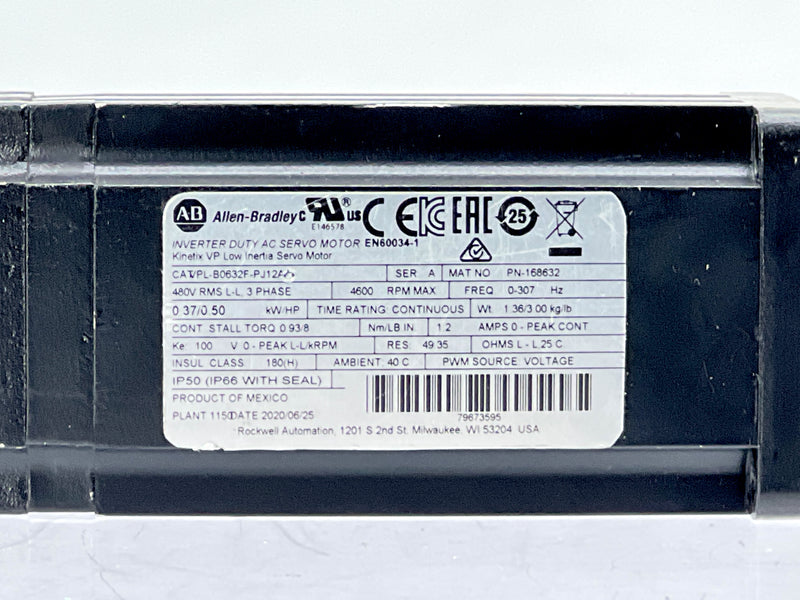

The Allen-Bradley VPL-B0632F-PJ12AA Kinetix VP is a low-inertia, inverter-duty AC servo motor for controlled industrial motion. The nameplate specifies 480 V RMS line-to-line, three-phase operation, 0.37 kW / 0.50 HP output, 0.93 N·m continuous stall torque and a maximum speed of 4600 RPM.
Used for controlled positioning and speed regulation in automated machinery, including machine axes and material-handling mechanisms.
Condition: Used
What's included: Servo motor as pictured
Manufacturer: Allen-Bradley
Model: Kinetix VP
Part Number: PN-168632
Series: A
Motor Type: Low-inertia, inverter-duty AC servo motor
Rated Voltage: 480 V RMS line-to-line
Phases: 3
Rated Output: 0.37 kW / 0.50 HP
Maximum Speed: 4600 RPM
Frequency: 0–307 Hz
Continuous Stall Torque: 0.93 N·m / 8 lb-in
Duty Rating: Continuous
Insulation Class: 180(H)
Ambient Temperature: 40 °C
Protection Rating: IP50; nameplate specifies IP66 with seal
Country of origin: Mexico
The Allen-Bradley VPL-B0632F-PJ12AA Kinetix VP is a low-inertia, inverter-duty AC servo motor for controlled industrial motion. The nameplate specifies 480 V RMS line-to-line, three-phase operation, 0.37 kW / 0.50 HP output, 0.93 N·m continuous stall torque and a maximum speed of 4600 RPM.
Used for controlled positioning and speed regulation in automated machinery, including machine axes and material-handling mechanisms.
Condition: Used
What's included: Servo motor as pictured
Manufacturer: Allen-Bradley
Model: Kinetix VP
Part Number: PN-168632
Series: A
Motor Type: Low-inertia, inverter-duty AC servo motor
Rated Voltage: 480 V RMS line-to-line
Phases: 3
Rated Output: 0.37 kW / 0.50 HP
Maximum Speed: 4600 RPM
Frequency: 0–307 Hz
Continuous Stall Torque: 0.93 N·m / 8 lb-in
Duty Rating: Continuous
Insulation Class: 180(H)
Ambient Temperature: 40 °C
Protection Rating: IP50; nameplate specifies IP66 with seal
Country of origin: Mexico
