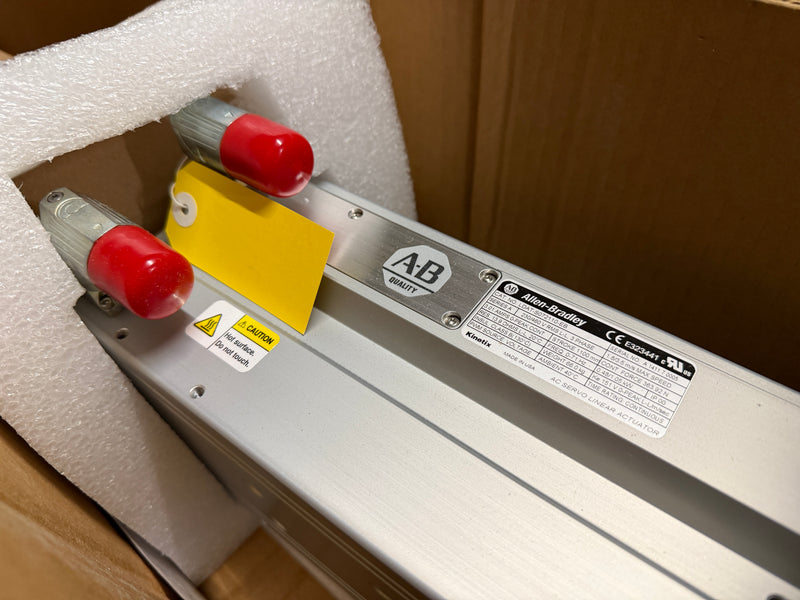

Allen-Bradley (Rockwell Automation) Kinetix LDAT-Series integrated linear thruster, catalog number LDAT-S072110-EB. The LDAT is a direct-drive AC servo linear actuator: a linear motor, bearing rail and encoder in one ready-to-mount assembly. With no ball screw or belt, it gives fast, precise positioning with almost no wear. It’s used for pick-and-place, pressing, inspection, packaging and general machine automation. This unit is the 75 mm frame base version with a 200 mm motor length, 1100 mm of travel, low-speed winding and an incremental encoder, with no cover. It’s new surplus in the original Allen-Bradley packaging with the installation instructions, the CD with motor files and outline drawing, and the lifting eye bolts.
Condition: New Surplus – open box, original packaging

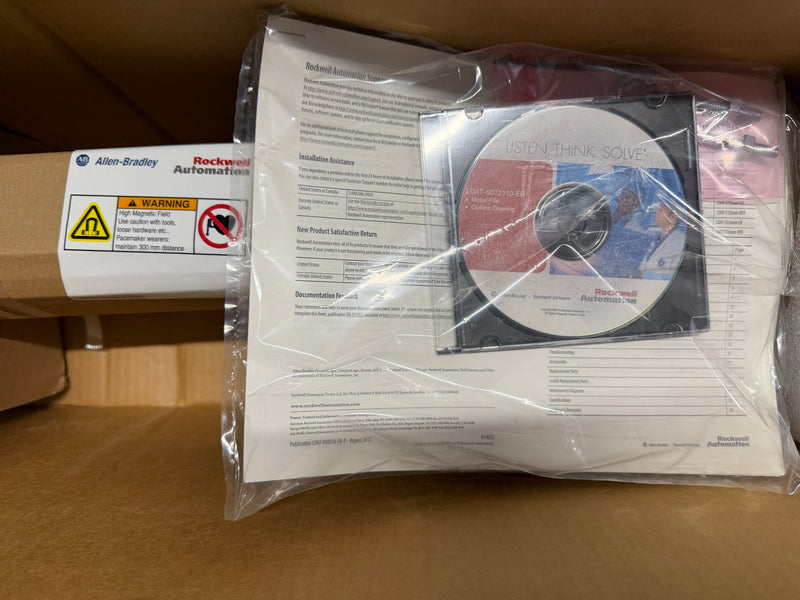

What’s Included: One Allen-Bradley LDAT-S072110-EB linear thruster, installation instructions, CD with motor files and outline drawing, and lifting eye bolts, as pictured

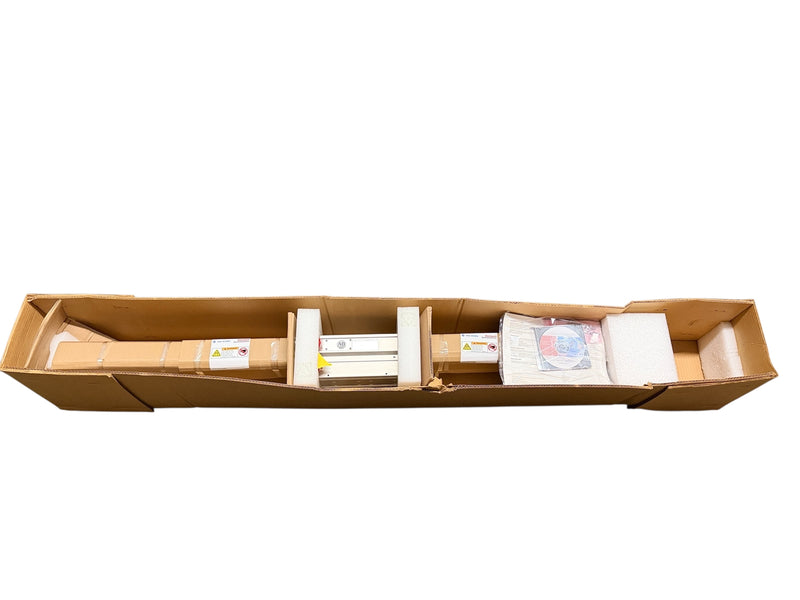

Shipping: Ships in original packaging via freight (long box, about 145 lb)

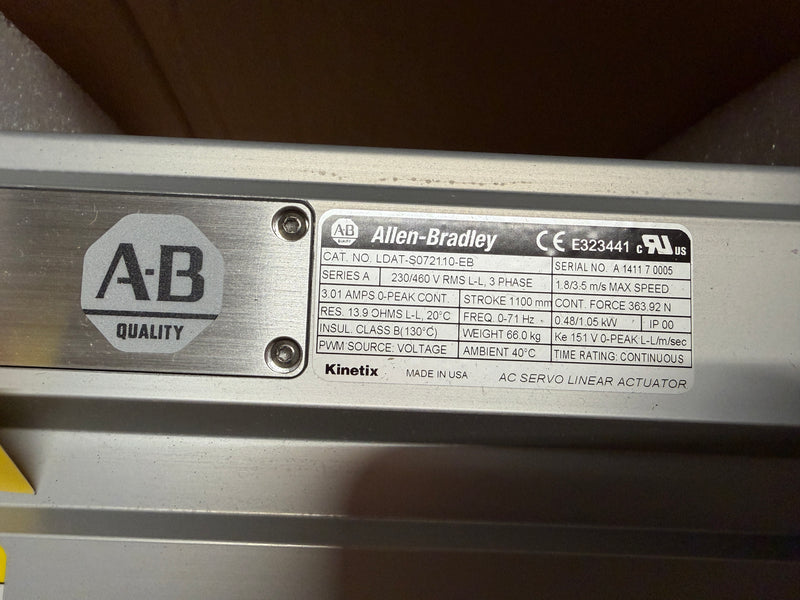

Specifications
Brand: Allen-Bradley / Rockwell Automation
Product Line: Kinetix LDAT-Series Integrated Linear Thruster

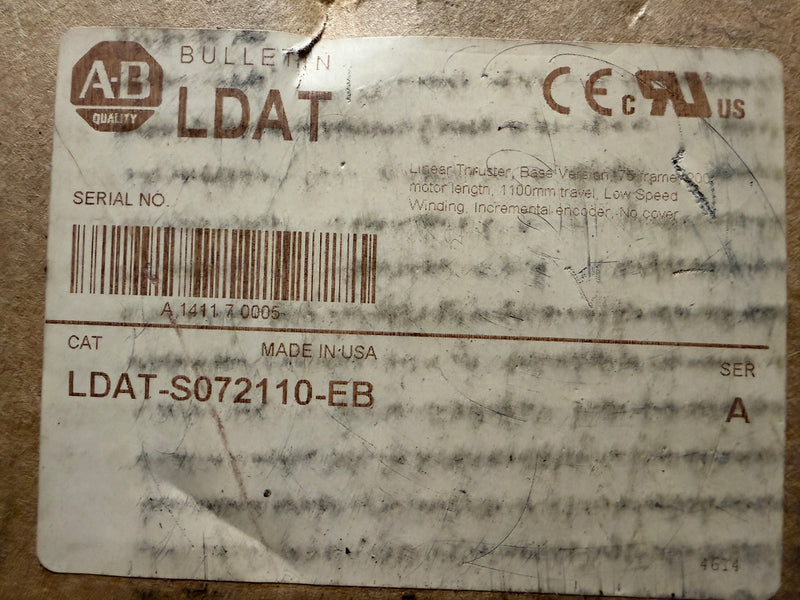

Catalog Number: LDAT-S072110-EB
Series: A
Serial No.: A1411 7 0005
Type: AC servo linear actuator
Version: Base version, no cover
Frame Size: 75 mm
Motor Length: 200 mm
Stroke: 1100 mm
Winding: Low speed
Feedback: Incremental encoder
Voltage: 230/460 V RMS L-L, 3-phase
Continuous Force: 363.92 N (82 lbf)
Peak Force: 816 N (183 lbf), per series rating
Continuous Current: 3.01 A 0-peak
Max Speed: 1.8 m/s (230 V) / 3.5 m/s (460 V)
Power: 0.48 / 1.05 kW
Back EMF (Ke): 151 V 0-peak L-L/m/s
Resistance: 13.9 Ω L-L at 20°C
Frequency: 0–71 Hz
Insulation: Class B (130°C)
Ambient: 40°C max
Enclosure: IP00
Time Rating: Continuous
Weight: 66.0 kg (145.5 lb)
Compatible Drives: Allen-Bradley Kinetix servo drives
Certifications: CE, cURus (E323441)
Country of Origin: USA
Allen-Bradley (Rockwell Automation) Kinetix LDAT-Series integrated linear thruster, catalog number LDAT-S072110-EB. The LDAT is a direct-drive AC servo linear actuator: a linear motor, bearing rail and encoder in one ready-to-mount assembly. With no ball screw or belt, it gives fast, precise positioning with almost no wear. It’s used for pick-and-place, pressing, inspection, packaging and general machine automation. This unit is the 75 mm frame base version with a 200 mm motor length, 1100 mm of travel, low-speed winding and an incremental encoder, with no cover. It’s new surplus in the original Allen-Bradley packaging with the installation instructions, the CD with motor files and outline drawing, and the lifting eye bolts.
Condition: New Surplus – open box, original packaging
What’s Included: One Allen-Bradley LDAT-S072110-EB linear thruster, installation instructions, CD with motor files and outline drawing, and lifting eye bolts, as pictured
Shipping: Ships in original packaging via freight (long box, about 145 lb)
Specifications
Brand: Allen-Bradley / Rockwell Automation
Product Line: Kinetix LDAT-Series Integrated Linear Thruster
Catalog Number: LDAT-S072110-EB
Series: A
Serial No.: A1411 7 0005
Type: AC servo linear actuator
Version: Base version, no cover
Frame Size: 75 mm
Motor Length: 200 mm
Stroke: 1100 mm
Winding: Low speed
Feedback: Incremental encoder
Voltage: 230/460 V RMS L-L, 3-phase
Continuous Force: 363.92 N (82 lbf)
Peak Force: 816 N (183 lbf), per series rating
Continuous Current: 3.01 A 0-peak
Max Speed: 1.8 m/s (230 V) / 3.5 m/s (460 V)
Power: 0.48 / 1.05 kW
Back EMF (Ke): 151 V 0-peak L-L/m/s
Resistance: 13.9 Ω L-L at 20°C
Frequency: 0–71 Hz
Insulation: Class B (130°C)
Ambient: 40°C max
Enclosure: IP00
Time Rating: Continuous
Weight: 66.0 kg (145.5 lb)
Compatible Drives: Allen-Bradley Kinetix servo drives
Certifications: CE, cURus (E323441)
Country of Origin: USA
