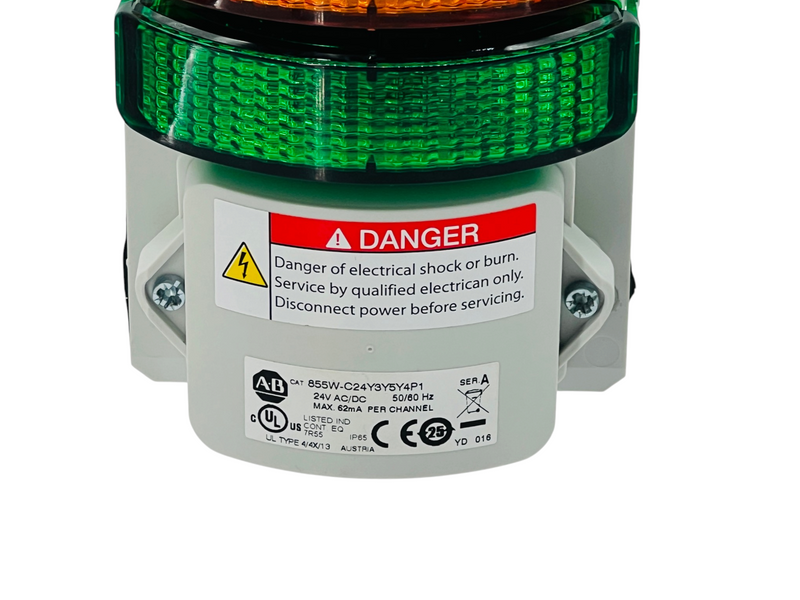

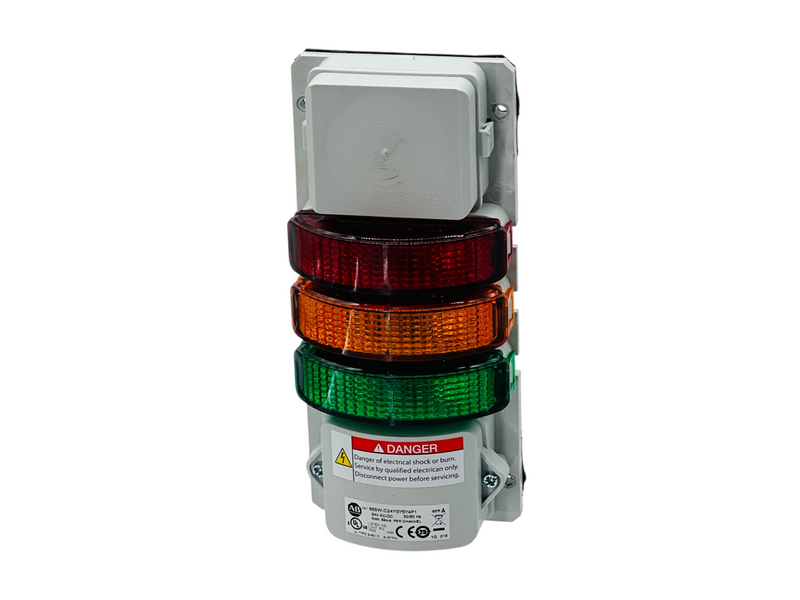

Allen-Bradley 855W-C24Y3Y5Y4P1 855W Series wall mount signal light with green, amber, and red steady LED indicators plus an adjustable piezo sounder. Designed for 24 V AC/DC operation and visual/audible machine status signaling.
Used for machine status indication, production equipment, automated systems, process control, warning applications, and factory signaling.
Condition: Used

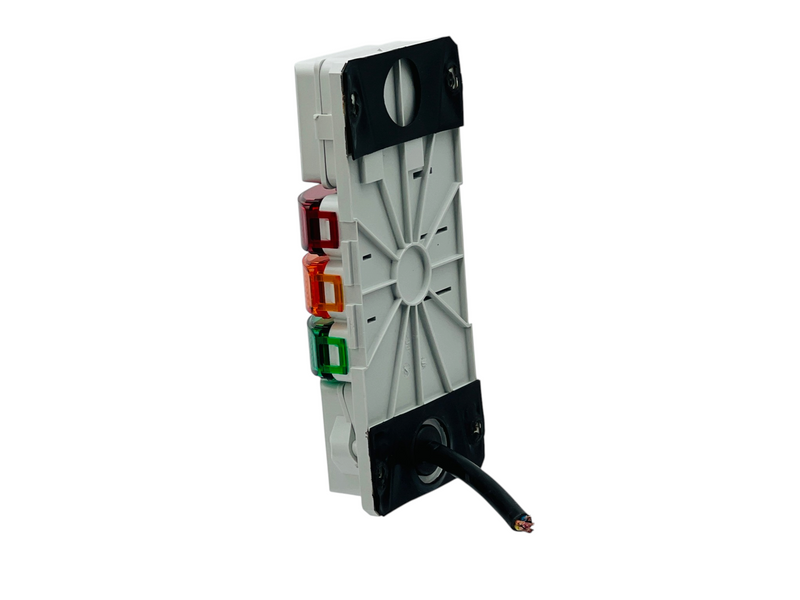

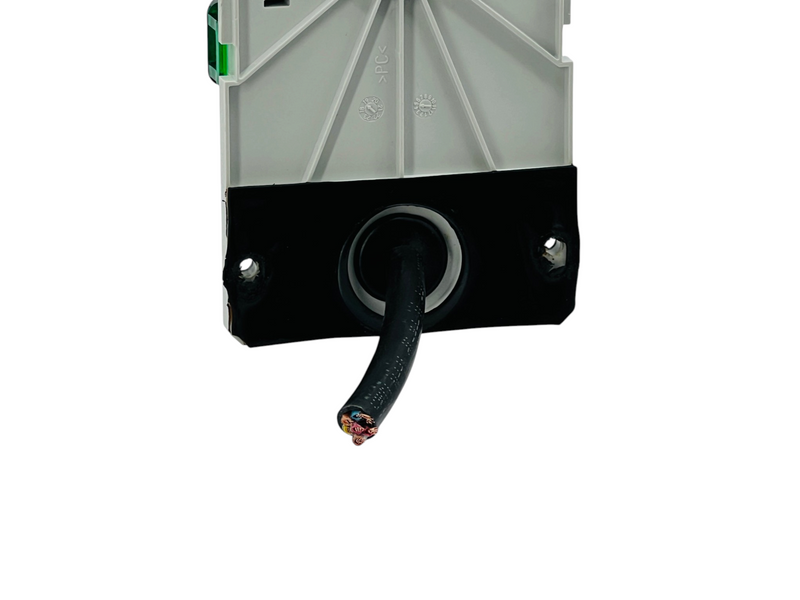

What's included: Allen-Bradley 855W-C24Y3Y5Y4P1 signal light assembly with mounted enclosure and bracket, as pictured
Model: 855W-C24Y3Y5Y4P1
Series: 855W
Type: Wall Mount Signal Light
Light Type: LED
Light Colors: Green, Amber, Red
Light Operation: Steady
Sounder: Piezo, Continuous / Pulsing
Sound Level: Up to 90 dBA, adjustable to approximately 70 dBA
Operating Voltage: 24 V AC/DC ±10%
LED Current Consumption: 43 mA per channel
Piezo Current Consumption: 62 mA
Protection Rating: IP65
NEMA Rating: Type 4, 4X, 13
Mounting Type: Wall Mount
Country of Origin: Austria
Allen-Bradley 855W-C24Y3Y5Y4P1 855W Series wall mount signal light with green, amber, and red steady LED indicators plus an adjustable piezo sounder. Designed for 24 V AC/DC operation and visual/audible machine status signaling.
Used for machine status indication, production equipment, automated systems, process control, warning applications, and factory signaling.
Condition: Used
What's included: Allen-Bradley 855W-C24Y3Y5Y4P1 signal light assembly with mounted enclosure and bracket, as pictured
Model: 855W-C24Y3Y5Y4P1
Series: 855W
Type: Wall Mount Signal Light
Light Type: LED
Light Colors: Green, Amber, Red
Light Operation: Steady
Sounder: Piezo, Continuous / Pulsing
Sound Level: Up to 90 dBA, adjustable to approximately 70 dBA
Operating Voltage: 24 V AC/DC ±10%
LED Current Consumption: 43 mA per channel
Piezo Current Consumption: 62 mA
Protection Rating: IP65
NEMA Rating: Type 4, 4X, 13
Mounting Type: Wall Mount
Country of Origin: Austria
