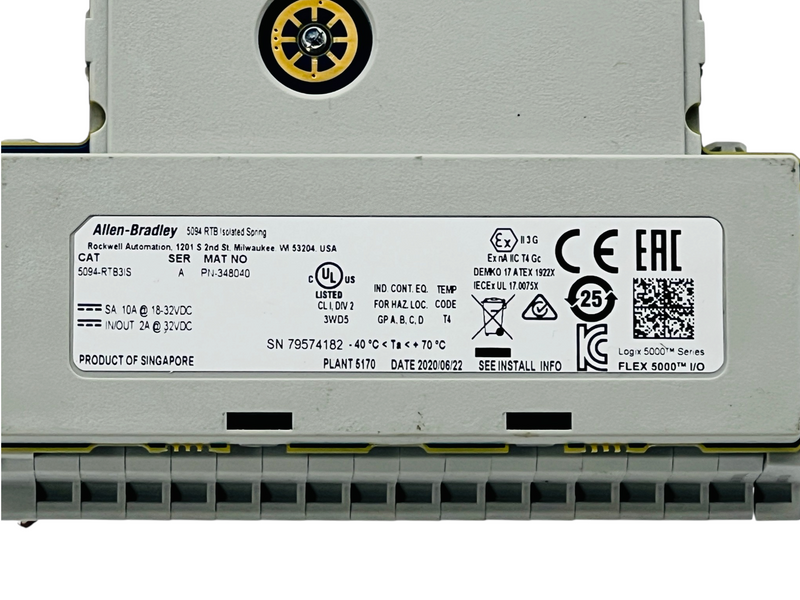

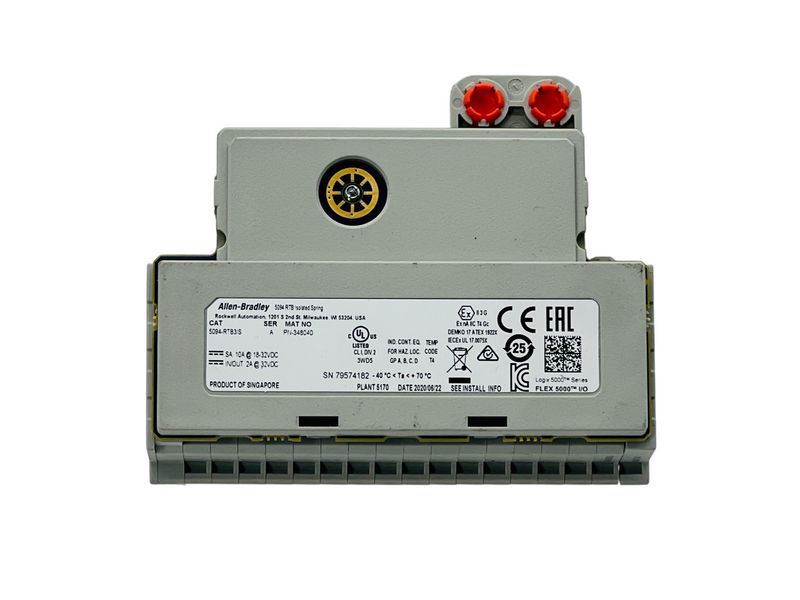

Allen-Bradley 5094-RTB3IS Series A isolated removable terminal block with spring-clamp connections for the FLEX 5000 I/O platform. It provides field-wiring connections between compatible FLEX 5000 I/O modules and a separately installed mounting base.
Used for industrial control panels, distributed I/O wiring, machine automation, process control, and FLEX 5000 system maintenance.
Condition: Used

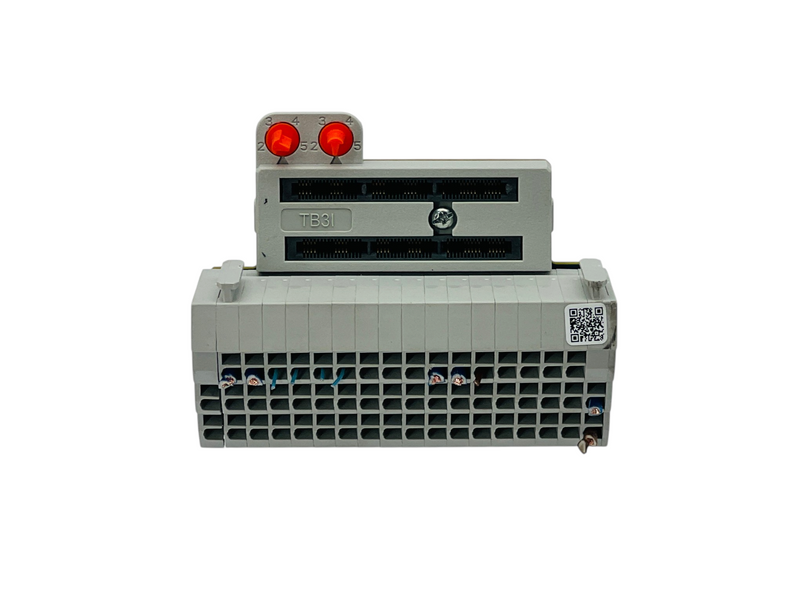

What's included: One Allen-Bradley 5094-RTB3IS removable terminal block with cut wire remnants in several terminals, as pictured. Mounting base and I/O module are not included
Model: 5094-RTB3IS
Series: A
Product Family: FLEX 5000 I/O
Type: Isolated Removable Terminal Block
Terminal Type: Spring Clamp
Input/Output Rating: 2 A at 32 VDC maximum
Sensor/Actuator Power Rating: 10 A at 18–32 VDC maximum
Isolation Voltage: 250 V continuous, basic insulation
Supported Wire: 0.34–2.5 mm², 22–14 AWG copper
Enclosure Type: Open Style
Operating Temperature: −40°C to 70°C
Hazardous-Location Rating: Class I, Division 2, Groups A, B, C and D, T4
ATEX/IECEx Rating: Ex nA IIC T4 Gc
Approximate Dimensions: 76 × 94 × 53 mm
Approximate Weight: 202 g
Product Date: 2020/06/22
Country of Origin: Singapore
