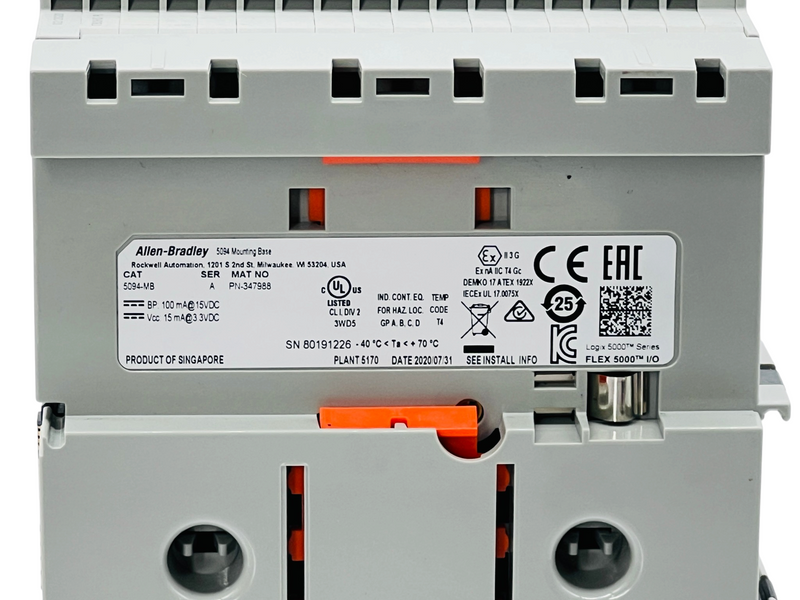

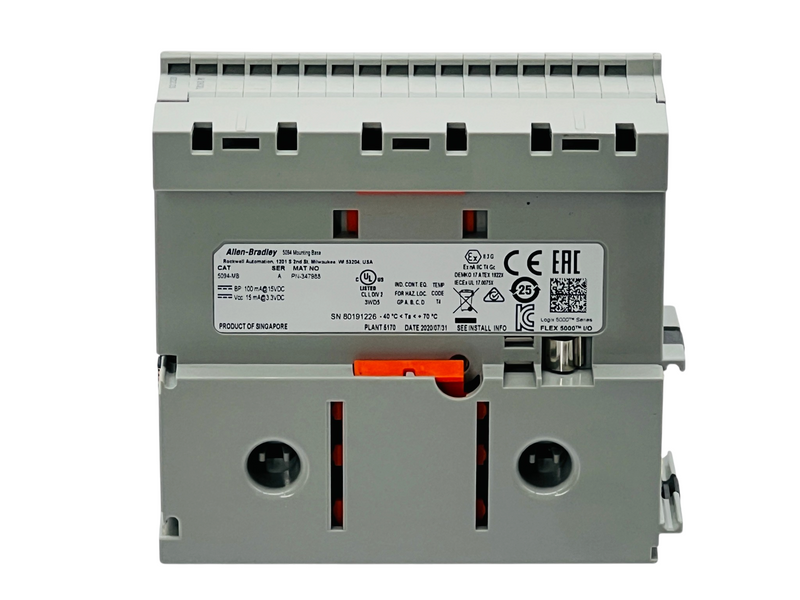

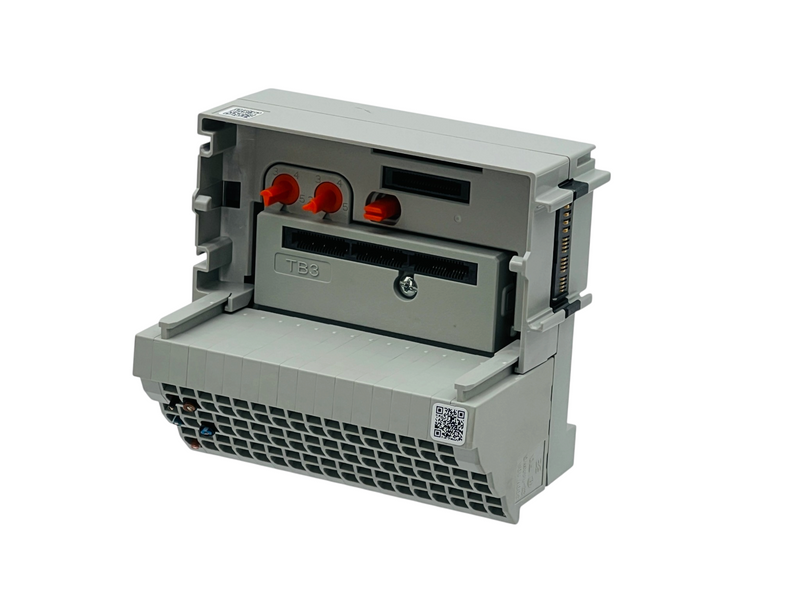

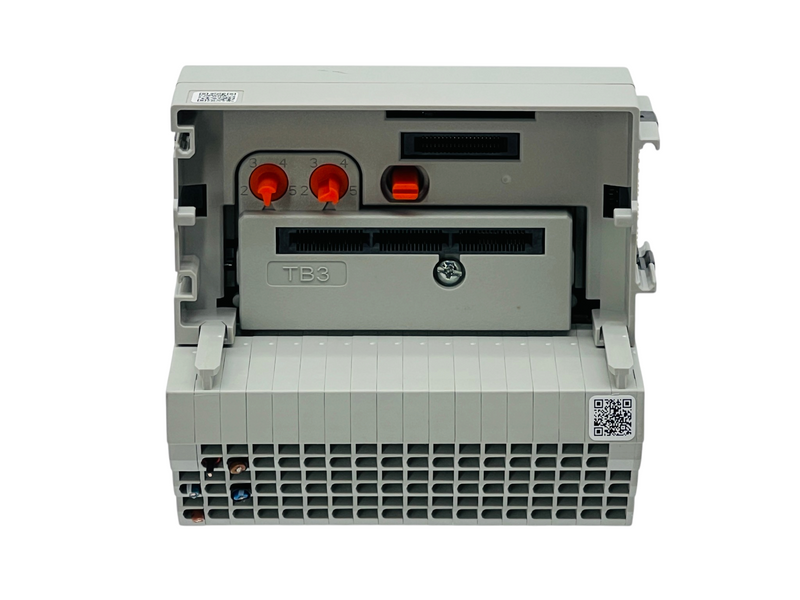

The Allen-Bradley 5094-MB FLEX 5000 mounting base provides the mechanical mounting, backplane connection and power interface for compatible FLEX 5000 I/O modules. It mounts individual I/O modules on DIN rail and connects them to the system backplane in FLEX 5000 distributed I/O systems.
This unit includes the Allen-Bradley 5094-RTB3S removable terminal block. It is a 3-wire, spring-clamp terminal block that provides the field wiring connection for the I/O module mounted on the base.
Condition: Used
What’s included: One Allen-Bradley 5094-MB mounting base and one 5094-RTB3S terminal block, as pictured
Mounting Base Specifications (5094-MB)
Model: FLEX 5000
Catalog Number: 5094-MB
Series: A
Country of Origin: Singapore
Product Type: Mounting Base
Backplane Power: 100 mA @ 15V DC
VCC Power: 15 mA @ 3.3V DC
DIN Rail: 35 × 7.5 mm
Manufacturer P/N: 347988
Operating Temperature: -40°C to +70°C
Terminal Block Specifications (5094-RTB3S)
Catalog Number: 5094-RTB3S
Product Type: Removable Terminal Block
Wiring: 3-wire, spring clamp
Compatibility: FLEX 5000 I/O mounting bases and modules
The Allen-Bradley 5094-MB FLEX 5000 mounting base provides the mechanical mounting, backplane connection and power interface for compatible FLEX 5000 I/O modules. It mounts individual I/O modules on DIN rail and connects them to the system backplane in FLEX 5000 distributed I/O systems.
This unit includes the Allen-Bradley 5094-RTB3S removable terminal block. It is a 3-wire, spring-clamp terminal block that provides the field wiring connection for the I/O module mounted on the base.
Condition: Used
What’s included: One Allen-Bradley 5094-MB mounting base and one 5094-RTB3S terminal block, as pictured
Mounting Base Specifications (5094-MB)
Model: FLEX 5000
Catalog Number: 5094-MB
Series: A
Country of Origin: Singapore
Product Type: Mounting Base
Backplane Power: 100 mA @ 15V DC
VCC Power: 15 mA @ 3.3V DC
DIN Rail: 35 × 7.5 mm
Manufacturer P/N: 347988
Operating Temperature: -40°C to +70°C
Terminal Block Specifications (5094-RTB3S)
Catalog Number: 5094-RTB3S
Product Type: Removable Terminal Block
Wiring: 3-wire, spring clamp
Compatibility: FLEX 5000 I/O mounting bases and modules
