Allen-Bradley 5069-OF8 Compact 5000 8 Channel Analog Output Module Series A

The Allen-Bradley 5069-OF8 is a Compact 5000 analog output module manufactured by Rockwell Automation. It features eight configurable voltage and current output channels supporting ±10V, 0–10V, 0–5V, 0–20 mA, and 4–20 mA signals. The module provides 16-bit analog resolution, high-speed digital-to-analog conversion, configurable output settings, and integrated diagnostics for compatible CompactLogix control systems.

It is used in PLC automation, process control systems, manufacturing equipment, valve and actuator control, variable frequency drive control, and automated production lines requiring precise analog output signals.

Condition: Used

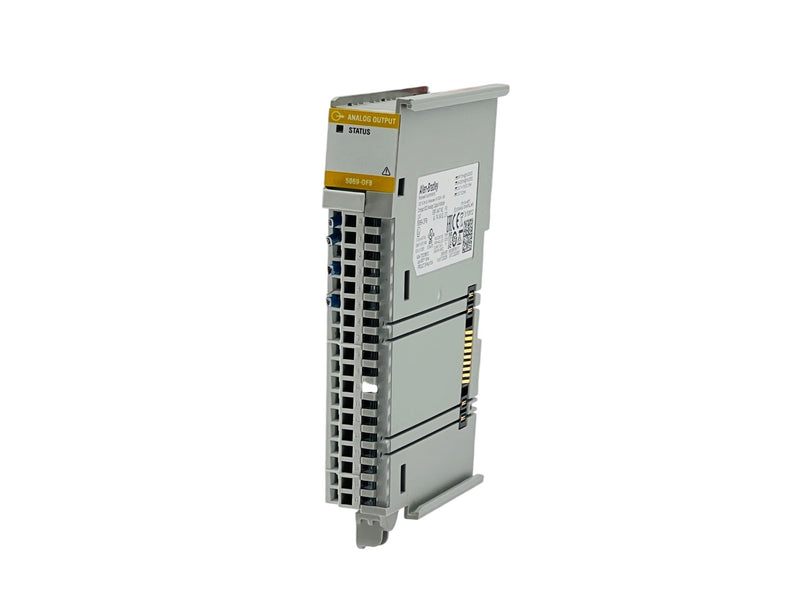

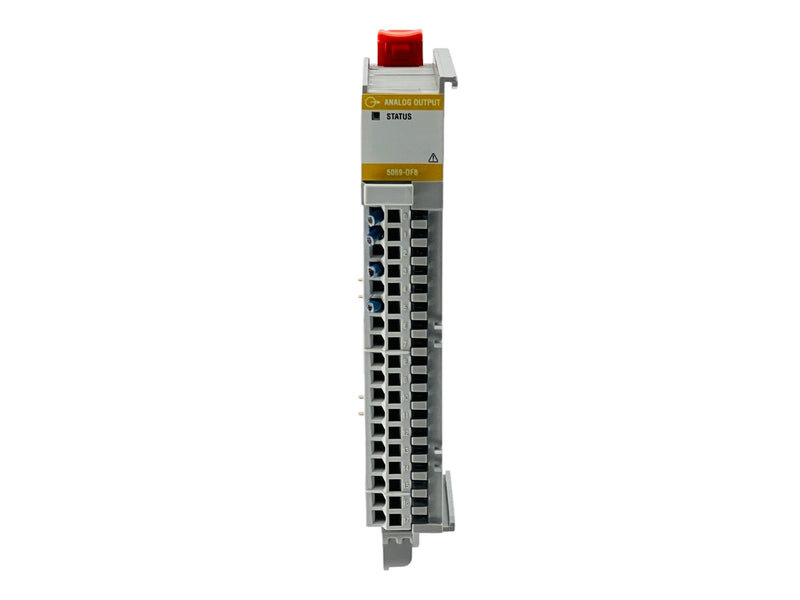

What's included: Allen-Bradley 5069-OF8 analog output module only, as pictured
Manufacturer: Allen-Bradley / Rockwell Automation
Model: 5069-OF8
Part Number: 5069-OF8
Series: A

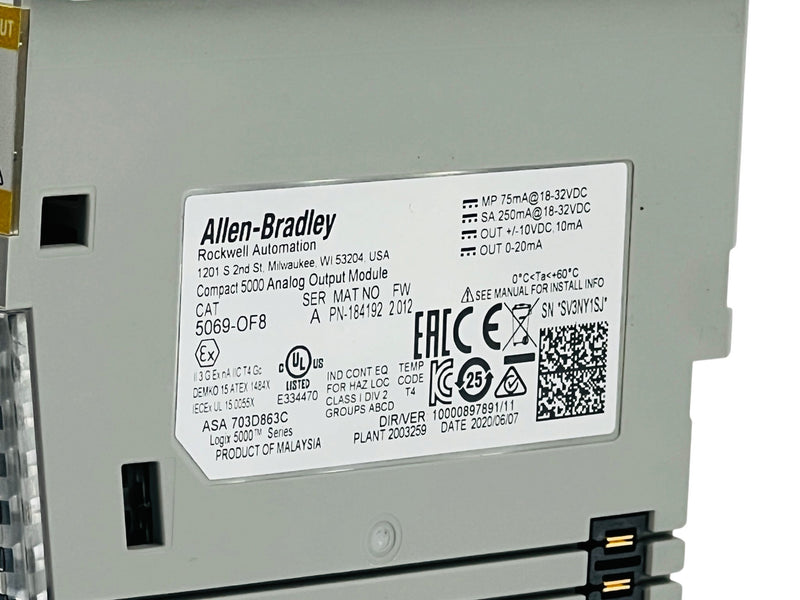

Firmware: 2.012 (Nameplate)
Product Type: Analog Output Module
Product Family: Compact 5000 I/O
Number of Outputs: 8 Channels
Output Configuration: Configurable Voltage / Current
Voltage Output Ranges: ±10V, 0–10V, 0–5V
Current Output Ranges: 0–20 mA, 4–20 mA
Analog Resolution: 16-Bit
Conversion Method: R-Ladder DAC
Conversion Time: 25 µs per Channel
Scan Time: 2 ms for All 8 Channels
Calibrated Accuracy: ±0.10% Full Scale at 25°C
Maximum Voltage Load: 1000 Ω Minimum
Maximum Current Load: 500 Ω
Open Circuit Detection: Current Mode
Short Circuit Detection: Voltage Mode
Module Power Input: 18–32 VDC
Module Power Current: 75 mA
SA Power Input: 18–32 VDC
SA Power Current: 250 mA
Maximum Power Dissipation: 5.3 W
Status Indicators: Module Status and Individual Channel LEDs
Mounting Type: DIN Rail
Operating Temperature: 0°C to +60°C
Manufacturing Date: 2020/06/07
Country of Manufacture: Malaysia
Applications: PLC Automation, Analog Signal Control, Process Control, Industrial Machinery, Factory Automation
