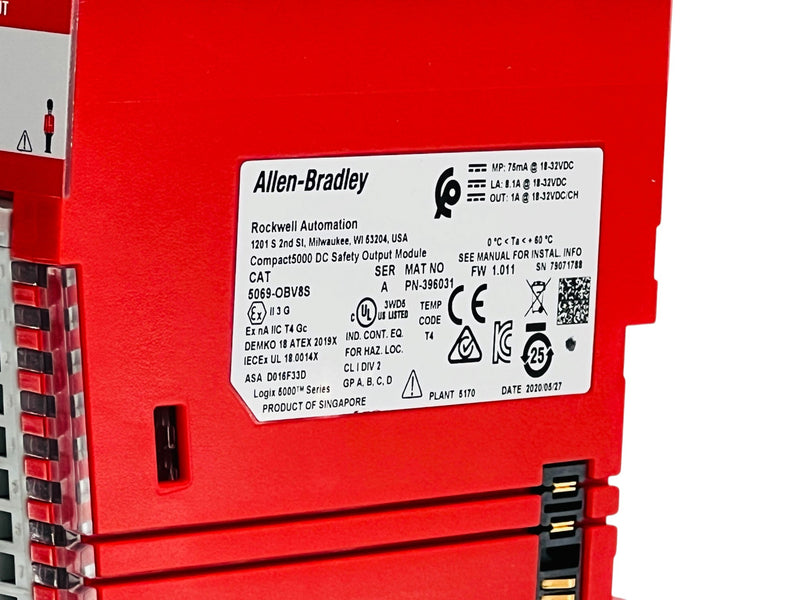

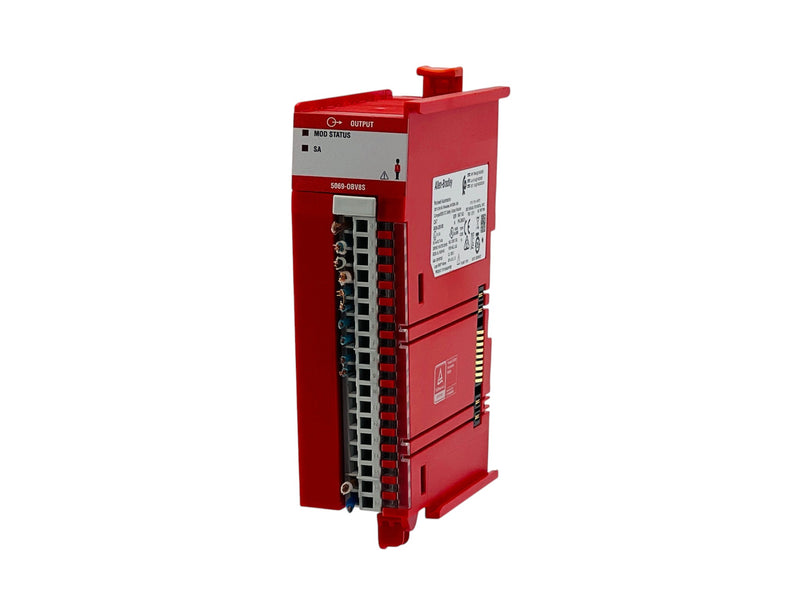

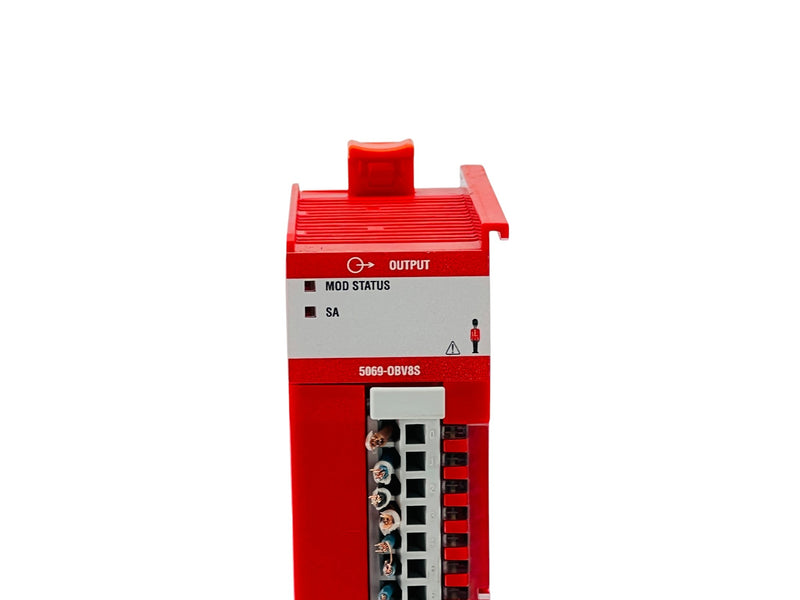

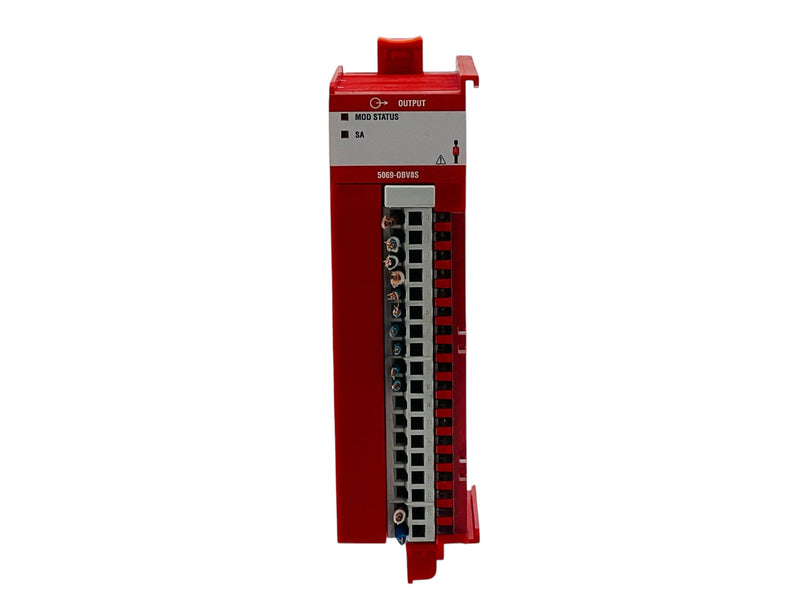

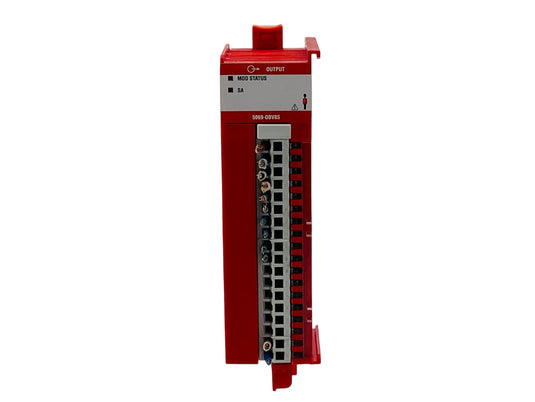

The Allen-Bradley 5069-OBV8S is a Compact 5000 DC safety output module manufactured by Rockwell Automation. It features eight configurable 24 VDC safety output channels, sourcing and bipolar output configurations, integrated diagnostic monitoring, and electronic overload and short-circuit protection. Designed for compatible Compact GuardLogix control systems, the module supports functional safety applications up to SIL 3 and Performance Level e when properly configured.
It is used in machine safety systems, emergency stop circuits, safety interlocks, protective guarding, automated production lines, and manufacturing equipment requiring safety-rated output control.
Condition: Used
What's included: Allen-Bradley 5069-OBV8S safety output module, as pictured
Manufacturer: Allen-Bradley / Rockwell Automation
Model: 5069-OBV8S
Part Number: 5069-OBV8S
Series: A
Firmware: 1.011 (Nameplate)
Product Type: DC Safety Output Module
Product Family: Compact 5000 I/O
Number of Safety Outputs: 8 Channels
Output Type: Configurable Sourcing / Bipolar
Voltage Category: 24 VDC
Output Voltage Range: 10–32 VDC
Output Current Rating: 1 A per Channel
Maximum Surge Current: 1.5 A per Channel
Module Power Input: 18–32 VDC
Module Power Current: 75 mA
Local Actuator Power: 18–32 VDC
Maximum Power Dissipation: 6.5 W
Safety Rating: Up to SIL 3 / PLe, Category 4 (Configuration Dependent)
Safety Reaction Time: 4.5 ms
Output Response Time: 4 ms Maximum
Protection: Short-Circuit, Overload, Overtemperature, Reverse Voltage
Diagnostic Features: Field Power Loss and No-Load Detection
Mounting Type: DIN Rail
Operating Temperature: 0°C to +60°C
Manufacturing Date: 2020/05/27
Country of Manufacture: Singapore
Applications: Machine Safety, Emergency Stop Systems, Safety Interlocks, Protective Guarding, Factory Automation
The Allen-Bradley 5069-OBV8S is a Compact 5000 DC safety output module manufactured by Rockwell Automation. It features eight configurable 24 VDC safety output channels, sourcing and bipolar output configurations, integrated diagnostic monitoring, and electronic overload and short-circuit protection. Designed for compatible Compact GuardLogix control systems, the module supports functional safety applications up to SIL 3 and Performance Level e when properly configured.
It is used in machine safety systems, emergency stop circuits, safety interlocks, protective guarding, automated production lines, and manufacturing equipment requiring safety-rated output control.
Condition: Used
What's included: Allen-Bradley 5069-OBV8S safety output module, as pictured
Manufacturer: Allen-Bradley / Rockwell Automation
Model: 5069-OBV8S
Part Number: 5069-OBV8S
Series: A
Firmware: 1.011 (Nameplate)
Product Type: DC Safety Output Module
Product Family: Compact 5000 I/O
Number of Safety Outputs: 8 Channels
Output Type: Configurable Sourcing / Bipolar
Voltage Category: 24 VDC
Output Voltage Range: 10–32 VDC
Output Current Rating: 1 A per Channel
Maximum Surge Current: 1.5 A per Channel
Module Power Input: 18–32 VDC
Module Power Current: 75 mA
Local Actuator Power: 18–32 VDC
Maximum Power Dissipation: 6.5 W
Safety Rating: Up to SIL 3 / PLe, Category 4 (Configuration Dependent)
Safety Reaction Time: 4.5 ms
Output Response Time: 4 ms Maximum
Protection: Short-Circuit, Overload, Overtemperature, Reverse Voltage
Diagnostic Features: Field Power Loss and No-Load Detection
Mounting Type: DIN Rail
Operating Temperature: 0°C to +60°C
Manufacturing Date: 2020/05/27
Country of Manufacture: Singapore
Applications: Machine Safety, Emergency Stop Systems, Safety Interlocks, Protective Guarding, Factory Automation
