The Allen-Bradley 5069-IF8 is a Compact 5000 analog input module manufactured by Rockwell Automation. It features eight differential input channels supporting voltage and current signals, including ±10V, 0–10V, 0–5V, 0–20 mA, and 4–20 mA ranges. The module provides high-resolution analog signal acquisition with 16-bit resolution, configurable input filtering, and integrated diagnostic monitoring for compatible CompactLogix control systems.
It is used in PLC automation, process monitoring, manufacturing equipment, sensor signal acquisition, machine control systems, and automated production lines requiring precise analog input measurements.
Condition: Used

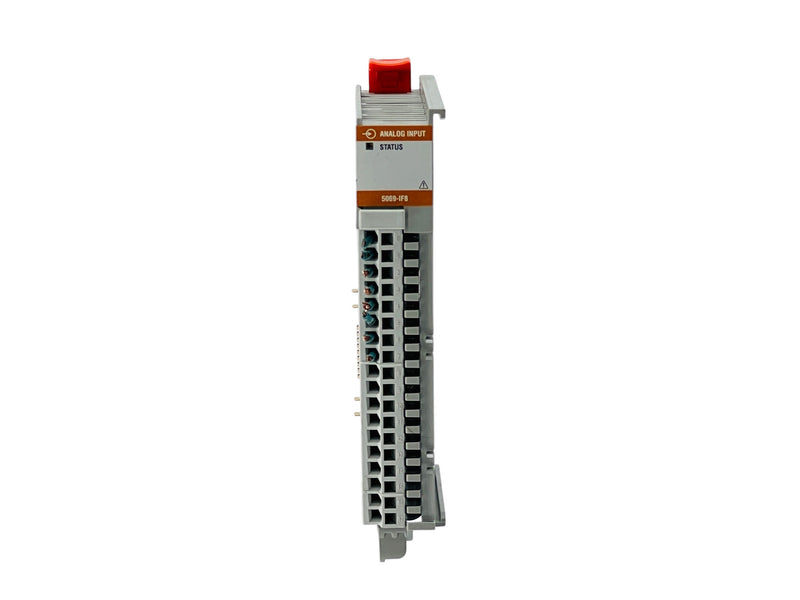

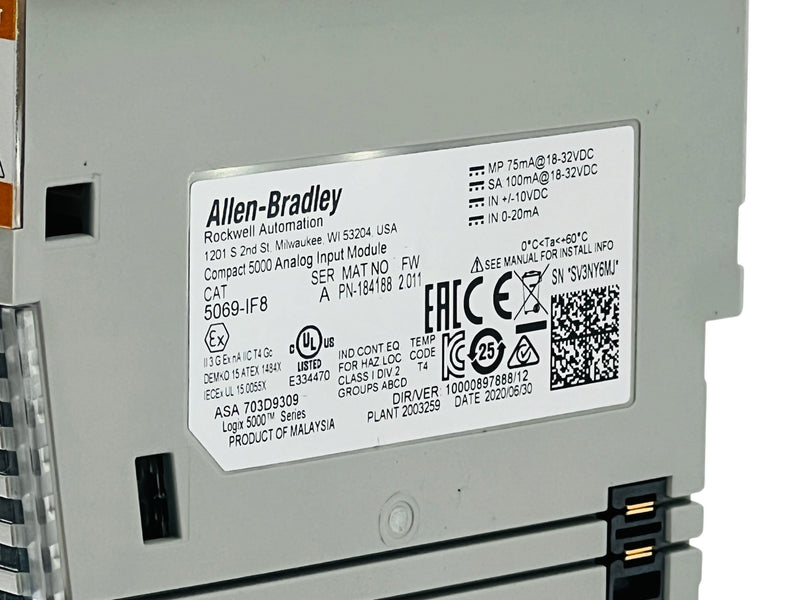

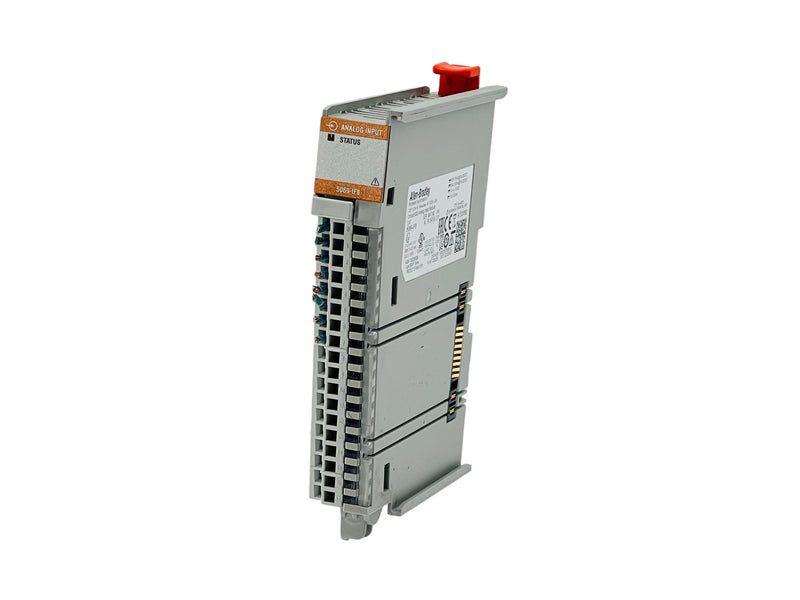

What's included: Allen-Bradley 5069-IF8 analog input module only, as pictured
Manufacturer: Allen-Bradley / Rockwell Automation
Model: 5069-IF8
Part Number: 5069-IF8
Series: A
Firmware: 2.011
Product Type: Analog Input Module
Product Family: Compact 5000 I/O
Number of Inputs: 8 Channels
Input Configuration: Differential
Input Types: Voltage and Current
Voltage Input Ranges: ±10V, 0–10V, 0–5V
Current Input Ranges: 0–20 mA, 4–20 mA
Analog Resolution: 16-Bit
Conversion Method: Sigma-Delta ADC
Calibrated Accuracy: ±0.10% Full Scale at 25°C
Module Power Input: 18–32 VDC
Module Power Current: 75 mA
SA Power: 18–32 VDC, 100 mA
Maximum Power Dissipation: 2.4 W
Input Filtering: Configurable Notch and Digital Filters
Scan Time: 625 µs per Channel
Status Indicators: Module Status and Channel LEDs
Mounting Type: DIN Rail
Operating Temperature: 0°C to +60°C
Manufacturing Date: 2020/06/30
Country of Manufacture: Malaysia
Applications: PLC Automation, Analog Signal Monitoring, Process Control, Sensor Integration, Factory Automation
