The Allen-Bradley 5069-IB8S is a Compact 5000 DC safety input module manufactured by Rockwell Automation. It features eight 24 VDC safety sinking input channels, four test outputs, configurable input filtering, and integrated safety diagnostics. Designed for compatible Compact GuardLogix control systems, the module supports functional safety applications up to SIL 3 and Performance Level e when configured according to the manufacturer's requirements.
It is used in machine safety systems, emergency stop circuits, safety interlocks, protective guarding, automated production lines, and manufacturing equipment requiring safety-rated input monitoring.
Condition: Used

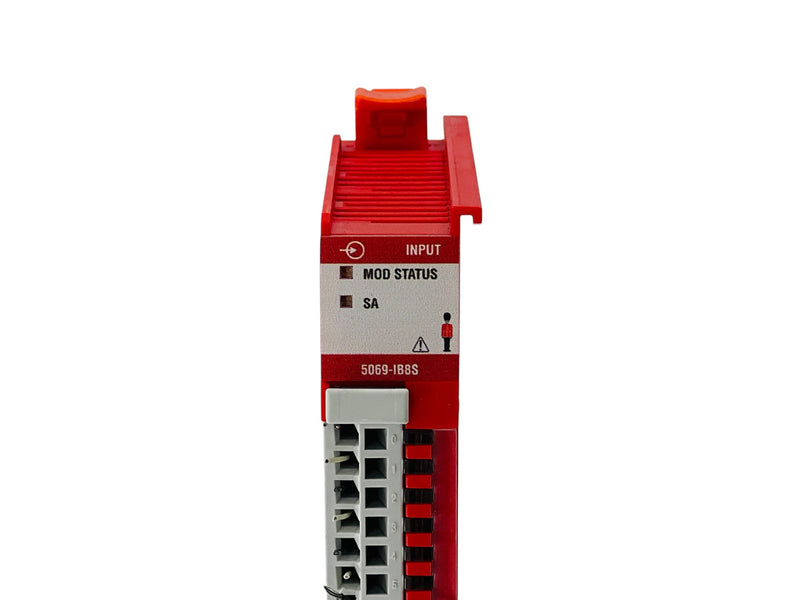

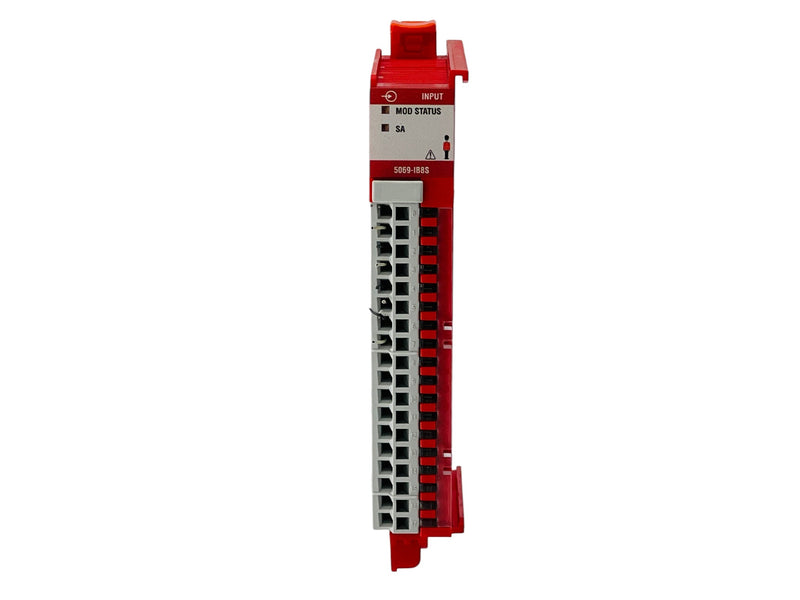

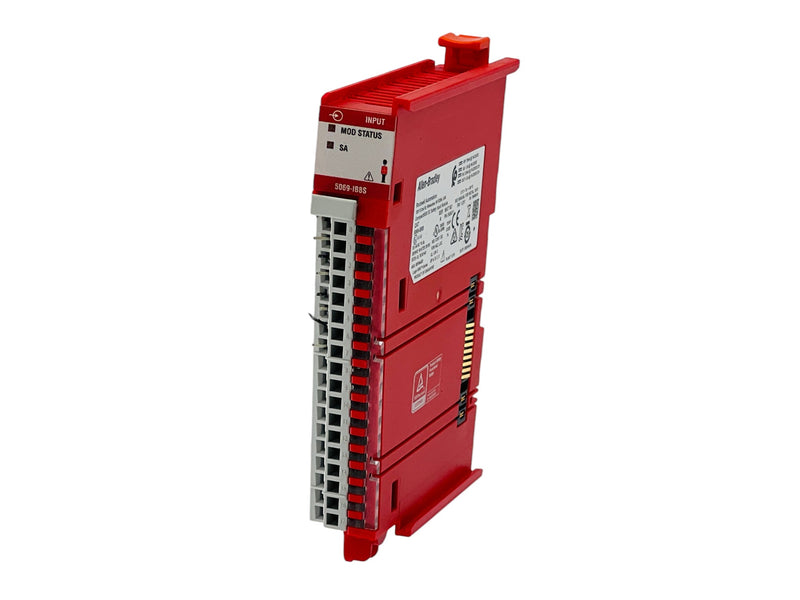

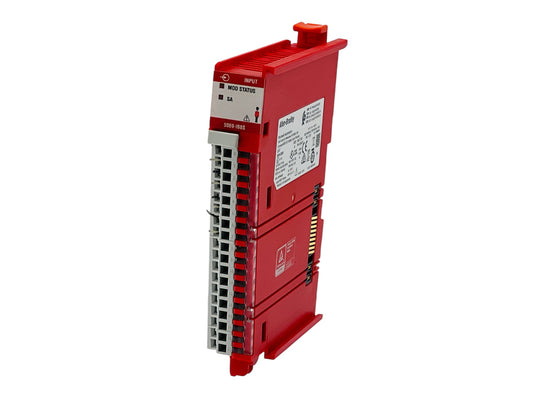

What's included: Allen-Bradley 5069-IB8S safety input module only, as pictured
Manufacturer: Allen-Bradley / Rockwell Automation
Model: 5069-IB8S
Part Number: 5069-IB8S
Series: A

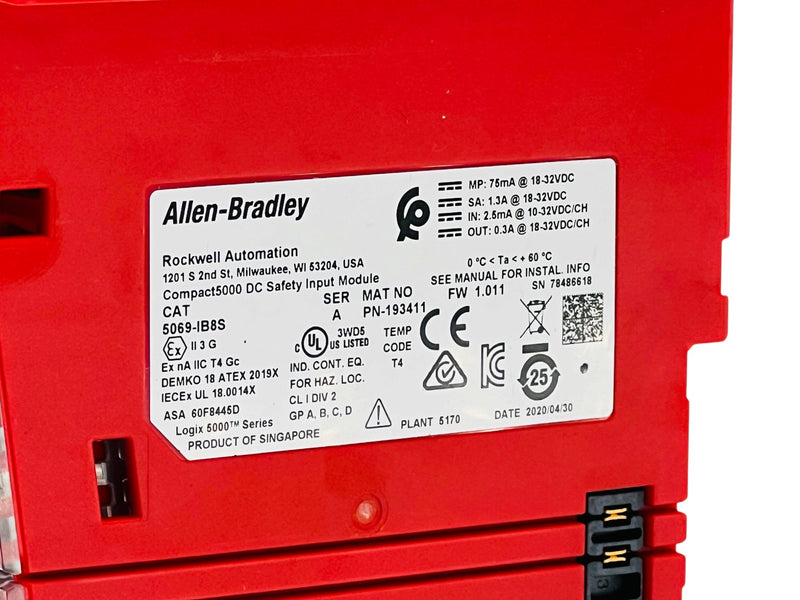

Firmware: 1.011 (Nameplate)
Product Type: DC Safety Input Module
Product Family: Compact 5000 I/O
Number of Safety Inputs: 8 Channels
Input Type: Safety Sinking
Test Outputs: 4 Channels (2 Test, 2 Test/Muting)
Voltage Category: 12/24 VDC
Input Voltage Range: 10–32 VDC
Nominal Input Voltage: 24 VDC
Input Current Rating: 2.5 mA per Channel
Maximum Test Output Current: 0.3 A per Channel
Module Power Input: 18–32 VDC
Module Power Current: 75 mA
SA Power Input: 18–32 VDC
SA Power Current: 1.3 A (Nameplate)
Maximum Power Dissipation: 3.5 W
Safety Rating: Up to SIL 3 / PLe, Category 4 (Configuration Dependent)
Input Delay: Configurable 0–50 ms
Safety Reaction Time: 6 ms
Isolation Voltage: 250 V Continuous
Mounting Type: DIN Rail
Operating Temperature: 0°C to +60°C
Manufacturing Date: 2020/04/30
Country of Manufacture: Singapore
Applications: Machine Safety, Emergency Stop Monitoring, Safety Interlocks, Guard Monitoring, Factory Automation
