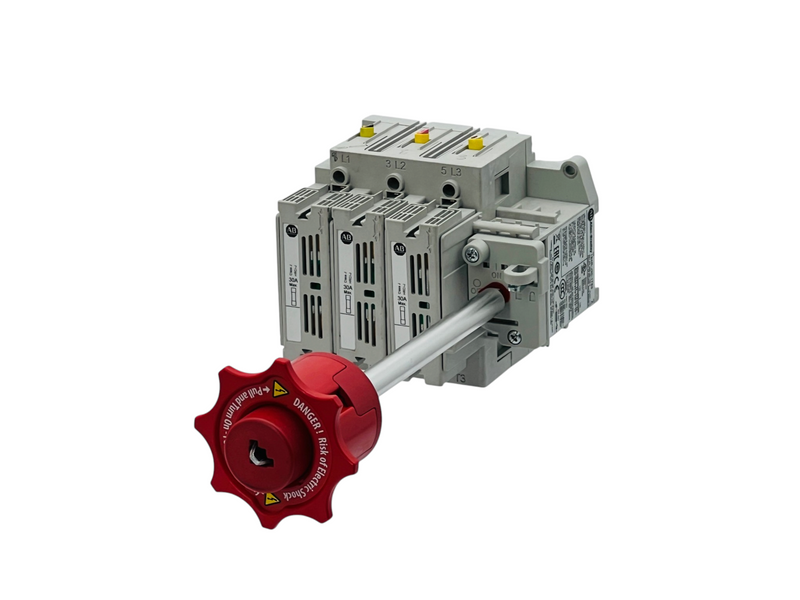

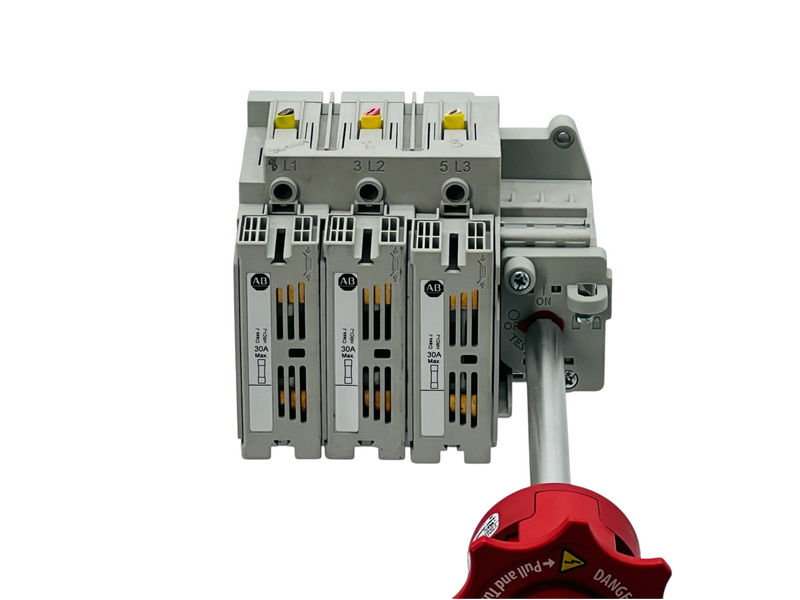

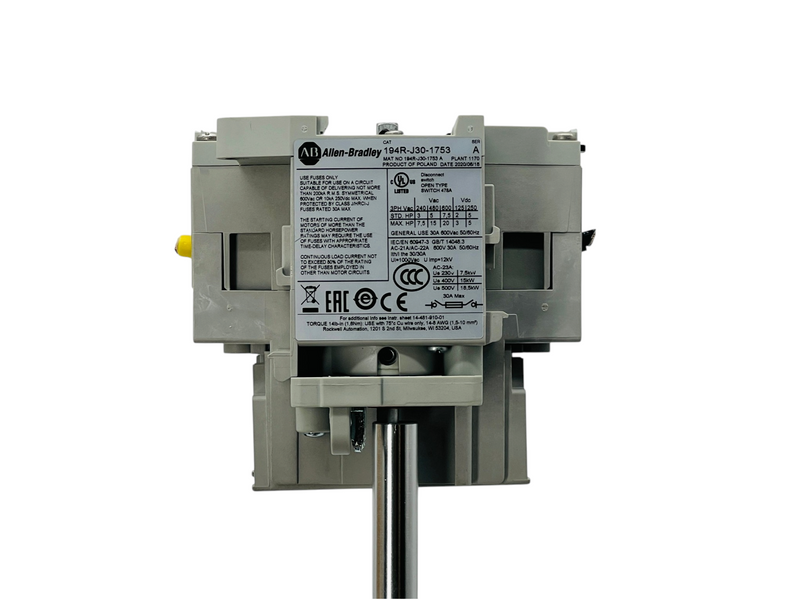

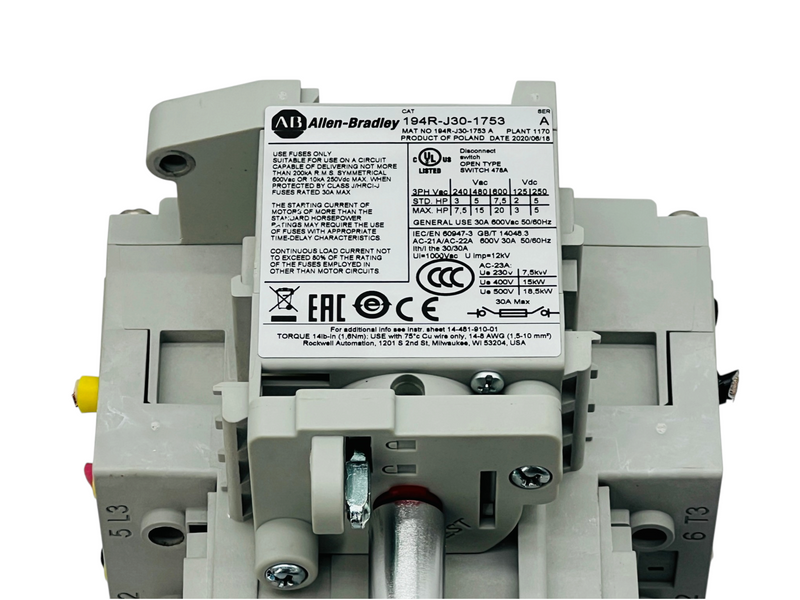

Allen-Bradley 194R-J30-1753 Series A open-style fused rotary disconnect switch rated for 30 A service. This three-pole switch accepts UL Class J or CSA HRCI-J fuses and includes the attached operating shaft and red rotary handle shown.
Designed for machinery disconnecting, industrial control panels, motor circuits, and manual power-isolation applications.
Condition: Used
What's included: Allen-Bradley disconnect switch assembly with attached operating shaft and red rotary handle, as pictured
Model: 194R-J30-1753
Catalog Number: 194R-J30-1753
Series: A
Type: Fused Rotary Disconnect Switch
Configuration: Open Style
Pole Configuration: 3 Pole
Rated Current: 30 A
Fuse Type: UL Class J / CSA HRCI-J, 30 A maximum
General-Use Rating: 30 A, 600 VAC, 50/60 Hz
Maximum DC Voltage: 250 VDC
Maximum Motor Rating: 7.5 HP at 240 VAC, 15 HP at 480 VAC, 20 HP at 600 VAC
Utilization Categories: AC-21A / AC-22A
Product Date: 2020/08/18
Country of Origin: Poland
Allen-Bradley 194R-J30-1753 Series A open-style fused rotary disconnect switch rated for 30 A service. This three-pole switch accepts UL Class J or CSA HRCI-J fuses and includes the attached operating shaft and red rotary handle shown.
Designed for machinery disconnecting, industrial control panels, motor circuits, and manual power-isolation applications.
Condition: Used
What's included: Allen-Bradley disconnect switch assembly with attached operating shaft and red rotary handle, as pictured
Model: 194R-J30-1753
Catalog Number: 194R-J30-1753
Series: A
Type: Fused Rotary Disconnect Switch
Configuration: Open Style
Pole Configuration: 3 Pole
Rated Current: 30 A
Fuse Type: UL Class J / CSA HRCI-J, 30 A maximum
General-Use Rating: 30 A, 600 VAC, 50/60 Hz
Maximum DC Voltage: 250 VDC
Maximum Motor Rating: 7.5 HP at 240 VAC, 15 HP at 480 VAC, 20 HP at 600 VAC
Utilization Categories: AC-21A / AC-22A
Product Date: 2020/08/18
Country of Origin: Poland
