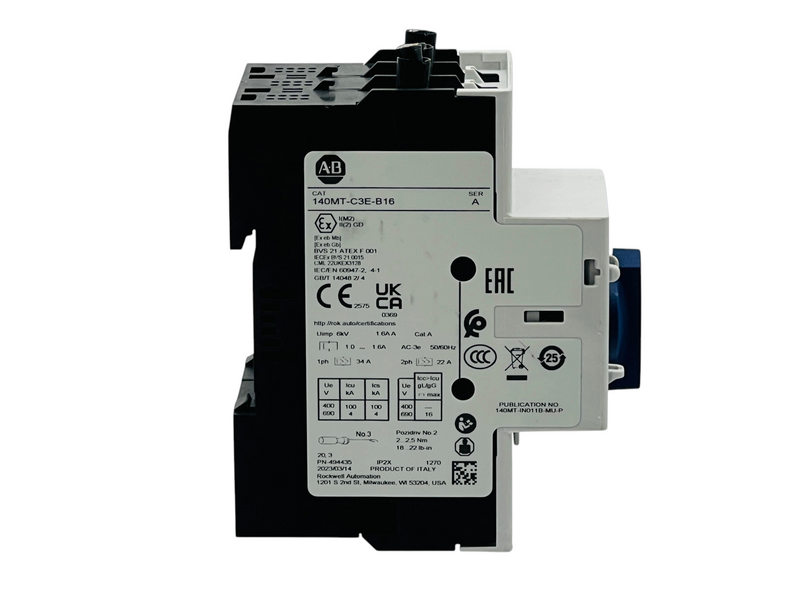

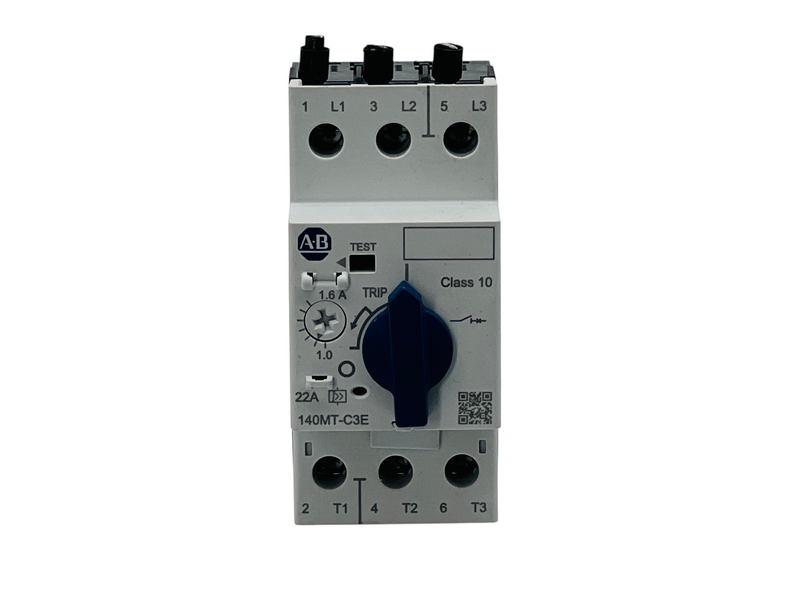

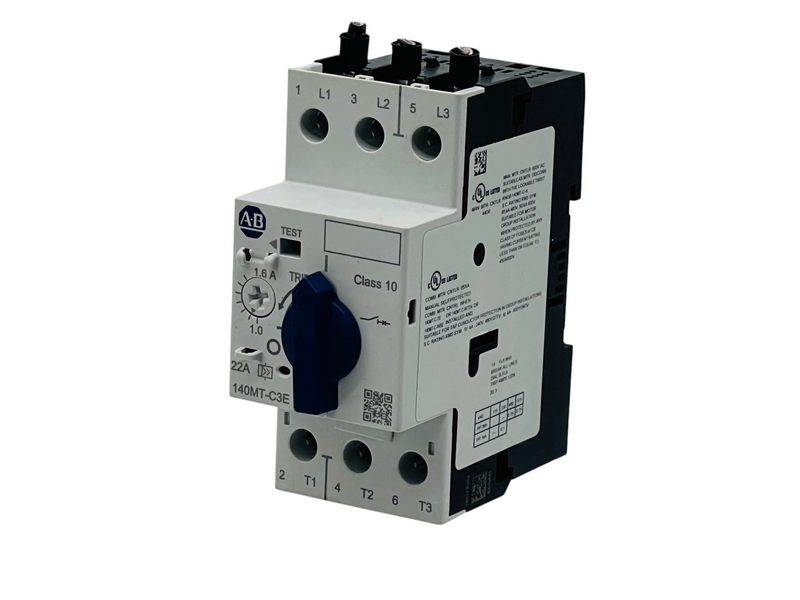

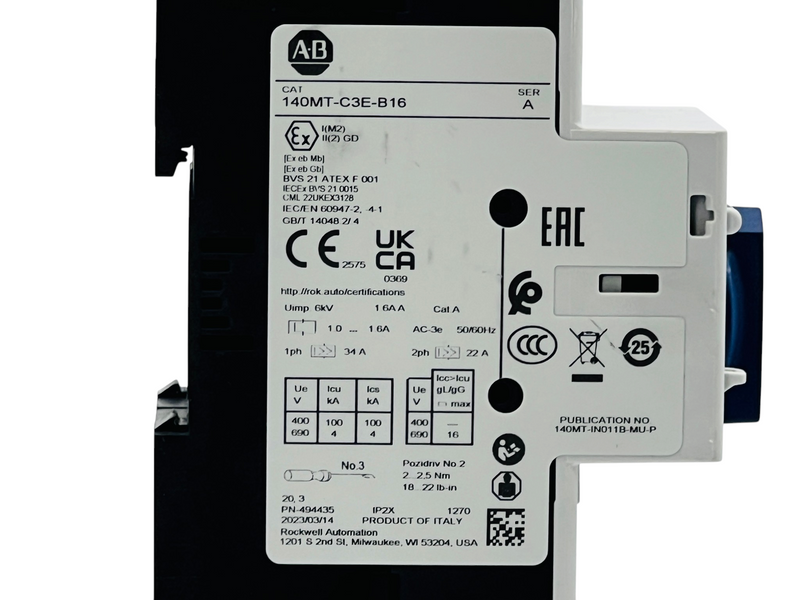

Allen-Bradley 140MT-C3E-B16 motor protection circuit breaker with an adjustable 1.0–1.6 A thermal current range and Class 10 trip characteristics for three-phase motor protection.
It is used in industrial motor-control systems to provide overload, short-circuit, and manual disconnect protection for motors.
Condition: Used
What's included: One Allen-Bradley 140MT-C3E-B16 motor protection circuit breaker as pictured
In stock: Ships within 1 business day
Model: 140MT-C3E-B16
Series: A
Country of Origin: Italy
Product Type: Motor Protection Circuit Breaker
Current Adjustment Range: 1.0–1.6 A
Trip Class: Class 10
Number of Poles: 3
Magnetic Trip: Fixed at 14 × Ie
Frame Size: C
Frequency: 50/60 Hz
Impulse Withstand Voltage: 6 kV
Breaking Capacity at 400 V: 100 kA
Breaking Capacity at 690 V: 4 kA
Protection Rating: IP2X
Allen-Bradley 140MT-C3E-B16 motor protection circuit breaker with an adjustable 1.0–1.6 A thermal current range and Class 10 trip characteristics for three-phase motor protection.
It is used in industrial motor-control systems to provide overload, short-circuit, and manual disconnect protection for motors.
Condition: Used
What's included: One Allen-Bradley 140MT-C3E-B16 motor protection circuit breaker as pictured
In stock: Ships within 1 business day
Model: 140MT-C3E-B16
Series: A
Country of Origin: Italy
Product Type: Motor Protection Circuit Breaker
Current Adjustment Range: 1.0–1.6 A
Trip Class: Class 10
Number of Poles: 3
Magnetic Trip: Fixed at 14 × Ie
Frame Size: C
Frequency: 50/60 Hz
Impulse Withstand Voltage: 6 kV
Breaking Capacity at 400 V: 100 kA
Breaking Capacity at 690 V: 4 kA
Protection Rating: IP2X
