Tektronix DPO5104B Digital Phosphor Oscilloscope with 1 GHz bandwidth, 4 analog channels and a 10 GS/s sample rate. The DPO5000B series is built for debugging and validating embedded designs, power electronics, high-speed digital and serial bus systems. It has a large touchscreen display, Tektronix DPX FastAcq for catching rare glitches, Wave Inspector navigation and a Windows-based platform for analysis software. This unit has six licensed software options installed, including DPOJET Essentials jitter and eye analysis, Advanced Search & Mark, Limit Testing and Visual Trigger.
Condition: Used

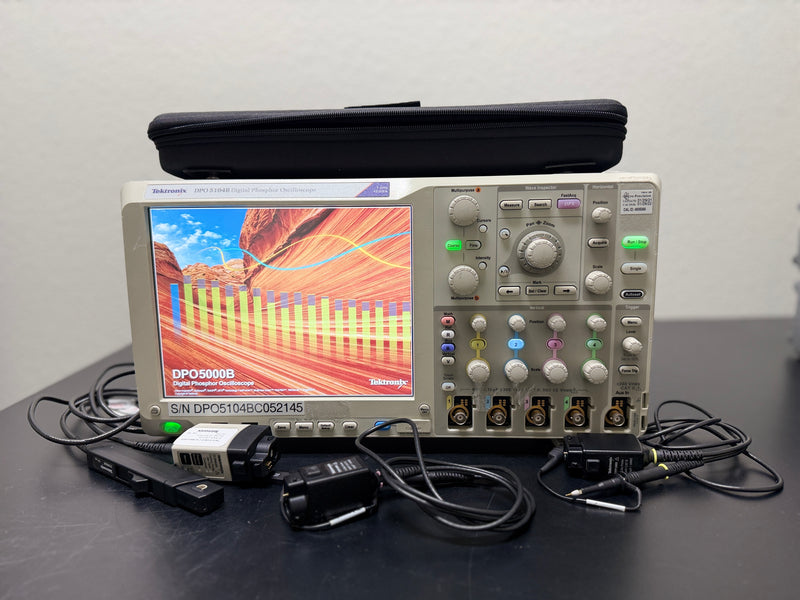

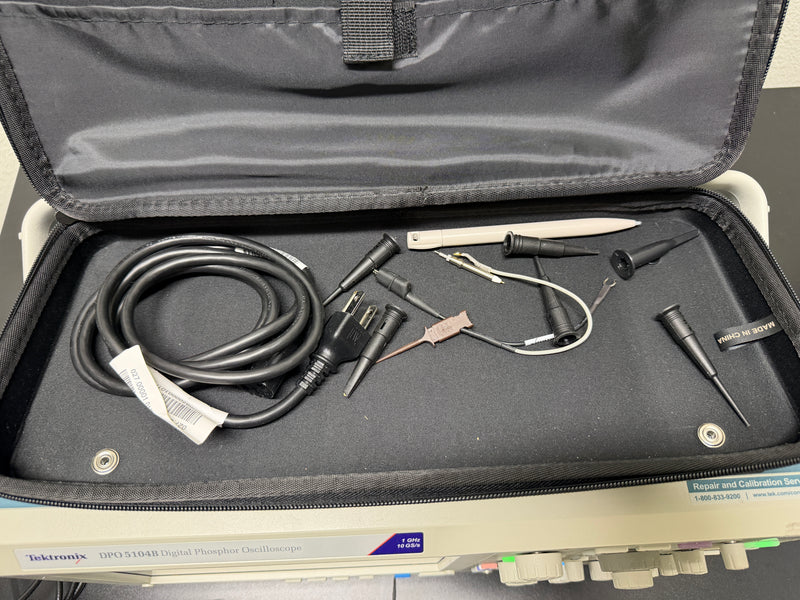

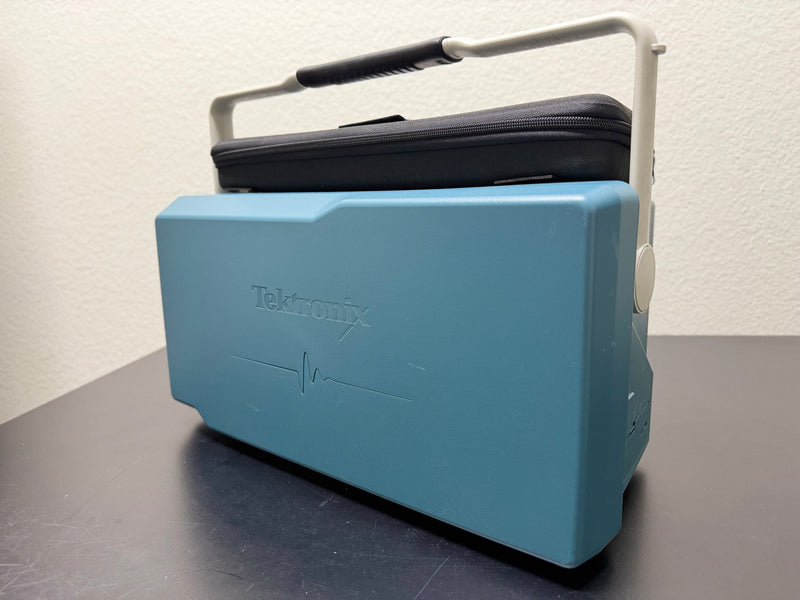

What’s Included: One Tektronix DPO5104B oscilloscope, TCP0020 current probe, TPP1000 passive probes, additional probe and accessory pouch, as pictured
Shipping: Ships via ground in protective packaging
Oscilloscope Specifications
Brand: Tektronix
Model: DPO5104B Digital Phosphor Oscilloscope
Serial No.: C052145
Bandwidth: 1 GHz
Analog Channels: 4
Max Sample Rate: 10 GS/s
Input Impedance: 1 MΩ / 13 pF and 50 Ω
Max Input Voltage: ≤300 V RMS CAT II (1 MΩ), ≤5 V RMS (50 Ω)
Probe Interface: TekVPI

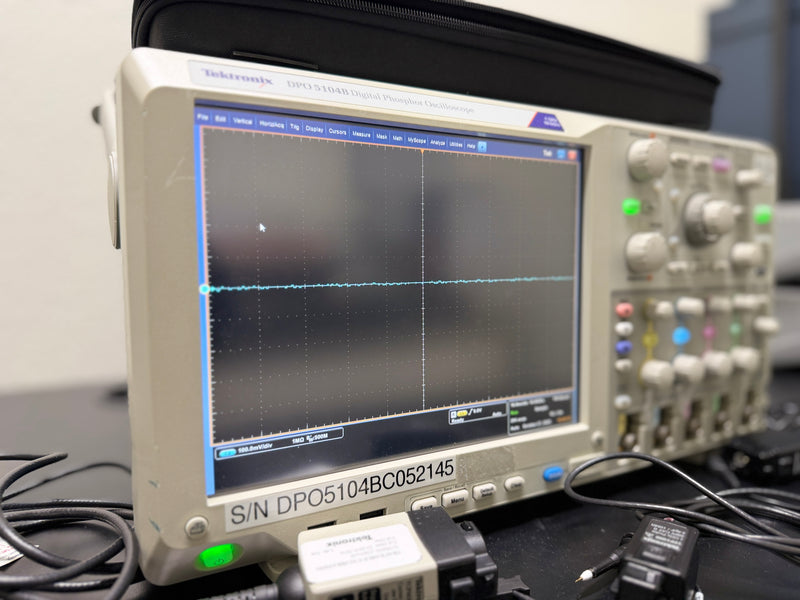

Display: 10.4 in color touchscreen

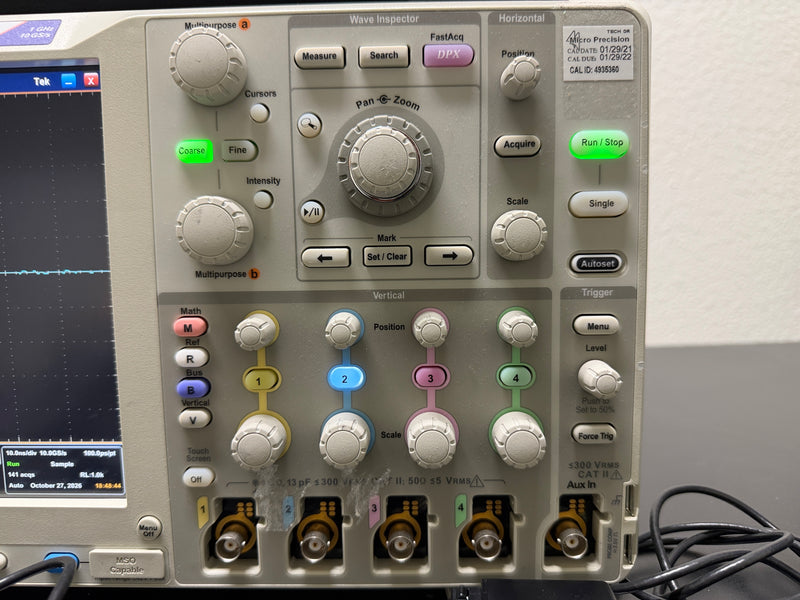

Key Features: DPX FastAcq, Wave Inspector, MyScope, FastFrame, MultiView Zoom
Operating System: Windows 7 Ultimate Embedded (licensed)

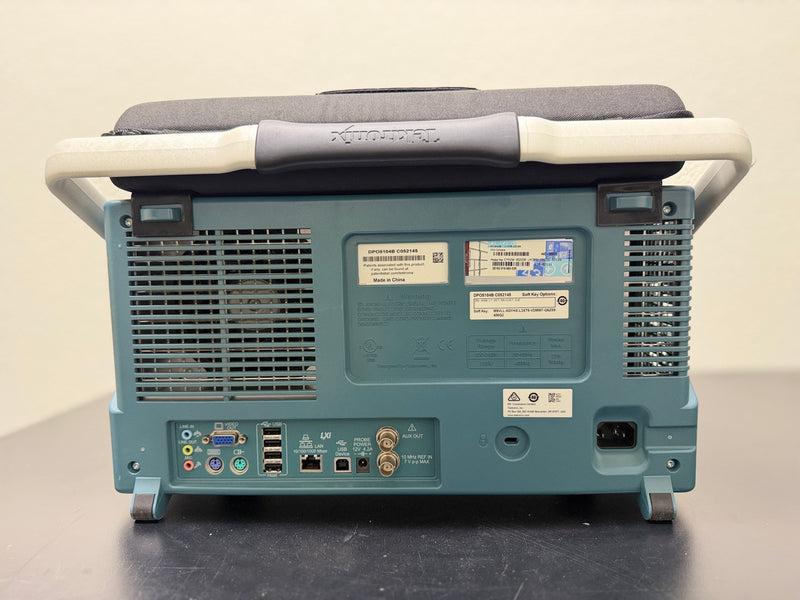

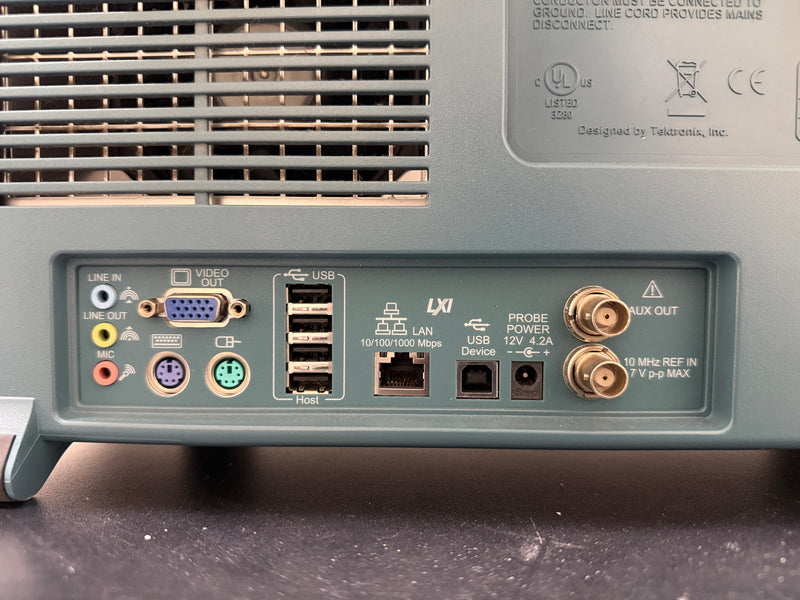

Connectivity: LAN (LXI), USB, Aux Out

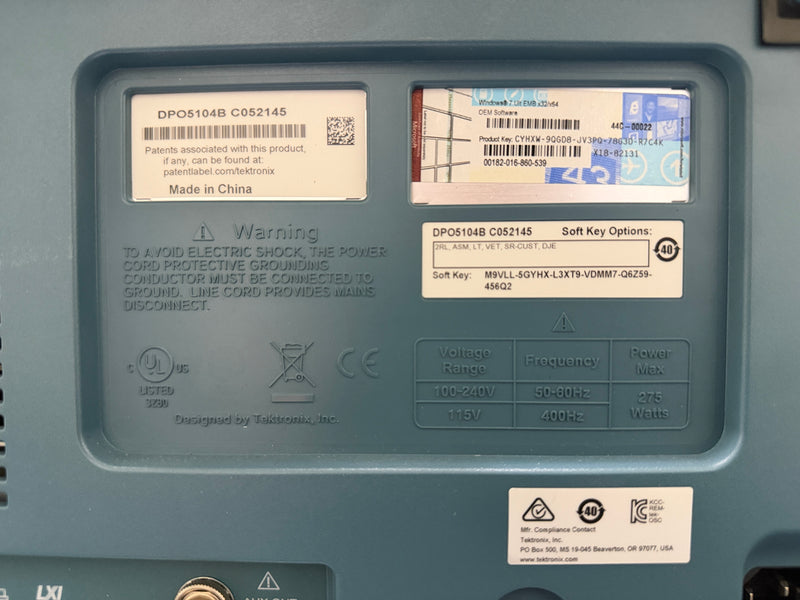

Power: 100–240 VAC 50/60 Hz or 115 VAC 400 Hz, 275 W max
Certifications: cULus, CE, RCM, KC
Country of Origin: China
Installed Software Options
2RL: Extended record length
ASM: Advanced Search & Mark
LT: Waveform limit/mask testing
VET: Visual Trigger
SR-CUST: Custom serial bus decode and analysis
DJE: DPOJET Essentials jitter and eye diagram analysis
Included Probes

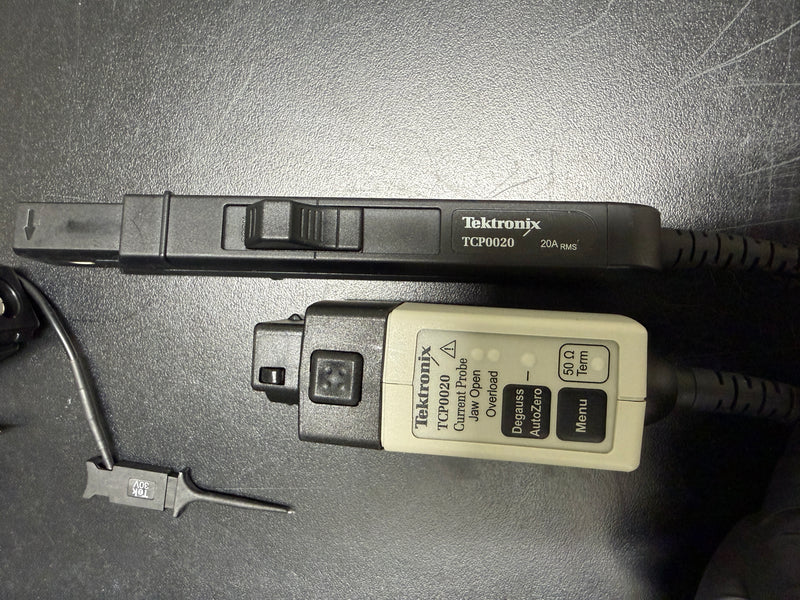

Tektronix TCP0020: AC/DC current probe, 20 A RMS, 50 MHz, TekVPI, with degauss/autozero

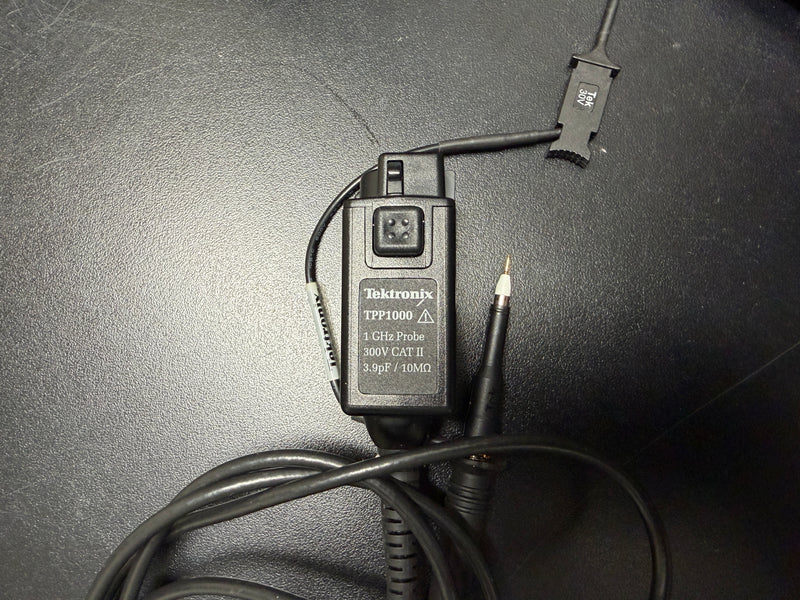

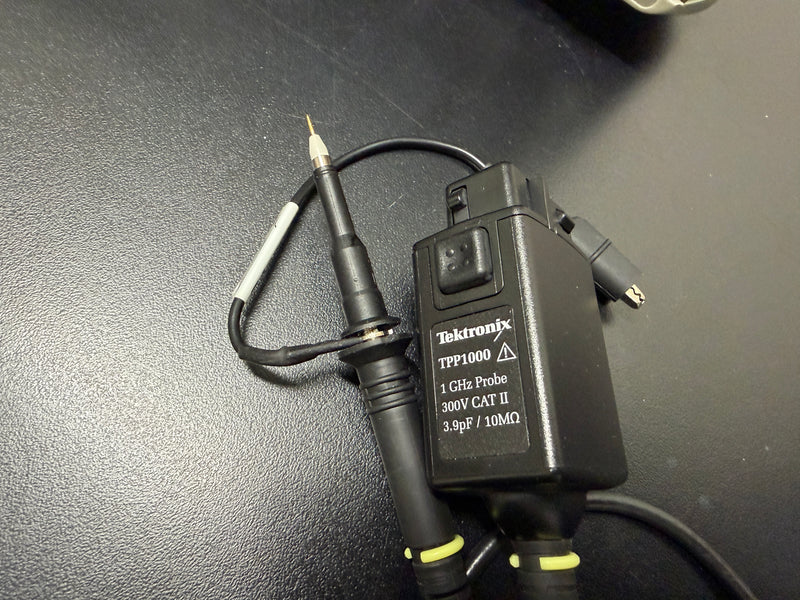

Tektronix TPP1000: 1 GHz passive voltage probe, 10:1, 3.9 pF / 10 MΩ, 300 V CAT II, TekVPI
