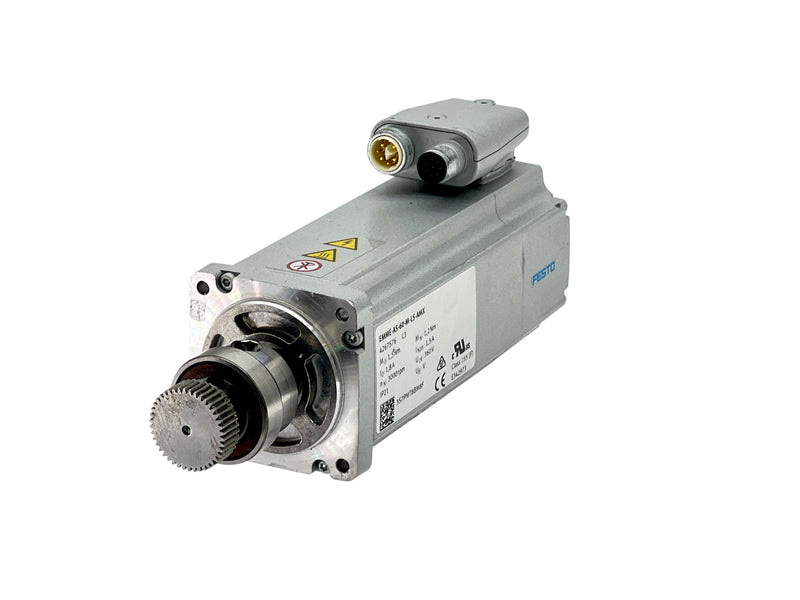

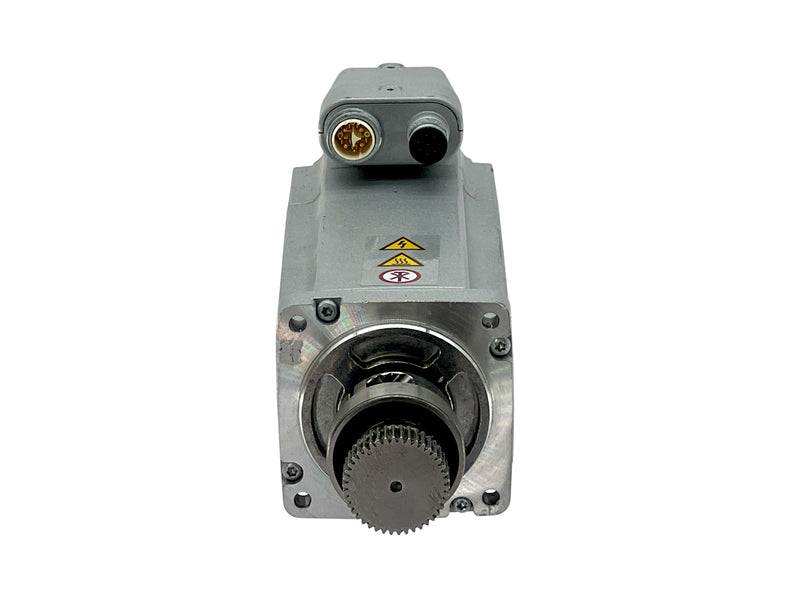

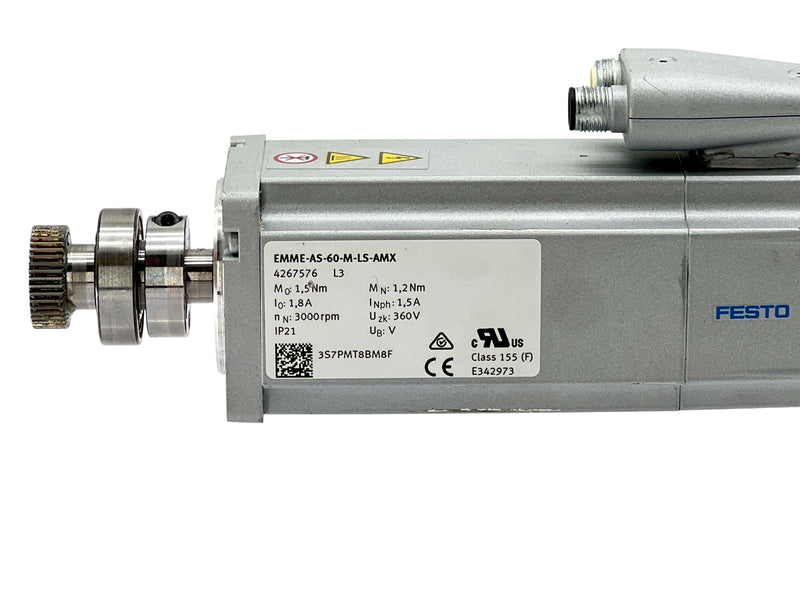

The Festo EMME-AS-60-M-LS-AMX servo motor provides controlled rotary motion for automated positioning systems. It features an absolute multi-turn safety encoder.
Condition: Used
What's included: Motor with attached shaft hardware as pictured
Manufacturer: Festo
Model: EMME-AS-60-M-LS-AMX
Part Number: 4267576
Rated Power: 380 W
Rated Speed: 3000 rpm
Maximum Speed: 4925 rpm
Rated Torque: 1.2 Nm
Standstill Torque: 1.5 Nm
Peak Torque: 6 Nm
DC Link Voltage: 360 V
Rated Motor Current: 1.5 A
Continuous Stall Current: 1.8 A
Encoder: Optical absolute multi-turn safety encoder
Encoder Interface: HIPERFACE
Encoder Resolution: 15-bit typical
Protection Rating: IP21
Insulation Class: F
Operating Temperature: -10 to 40 °C
Country of origin: Germany
