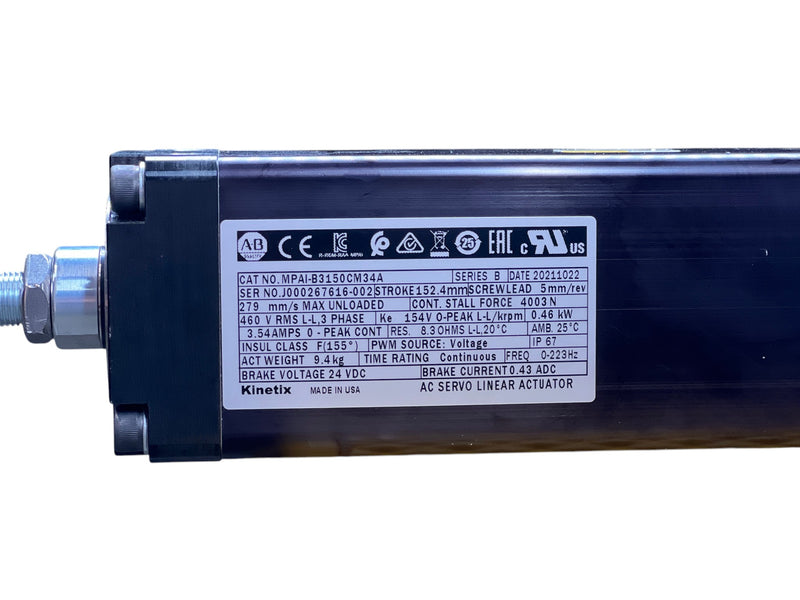

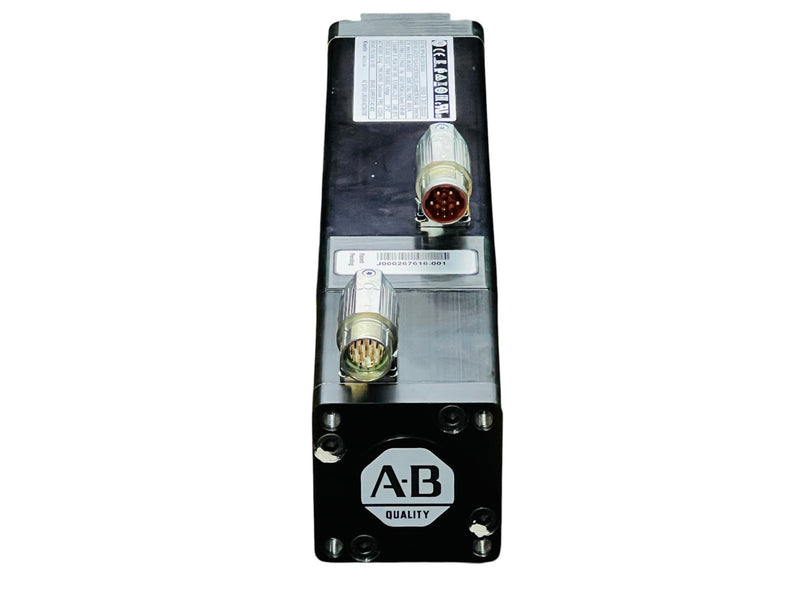

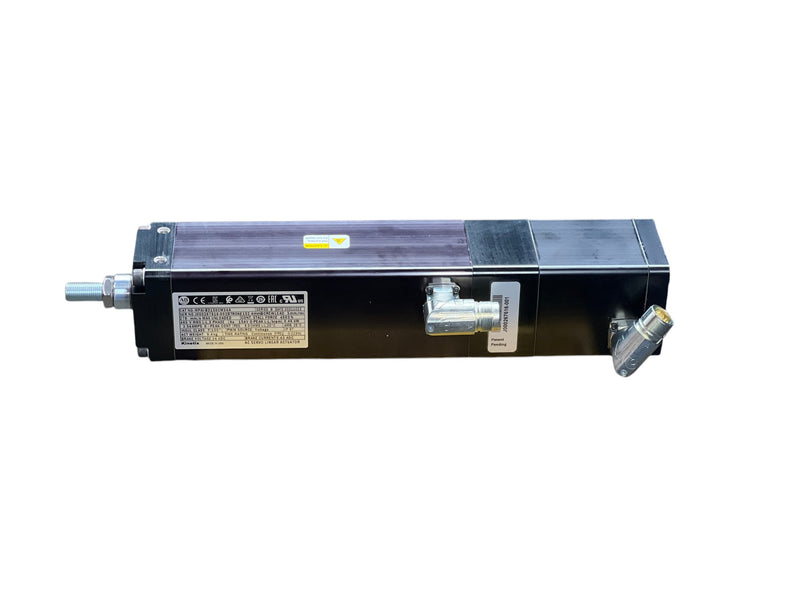

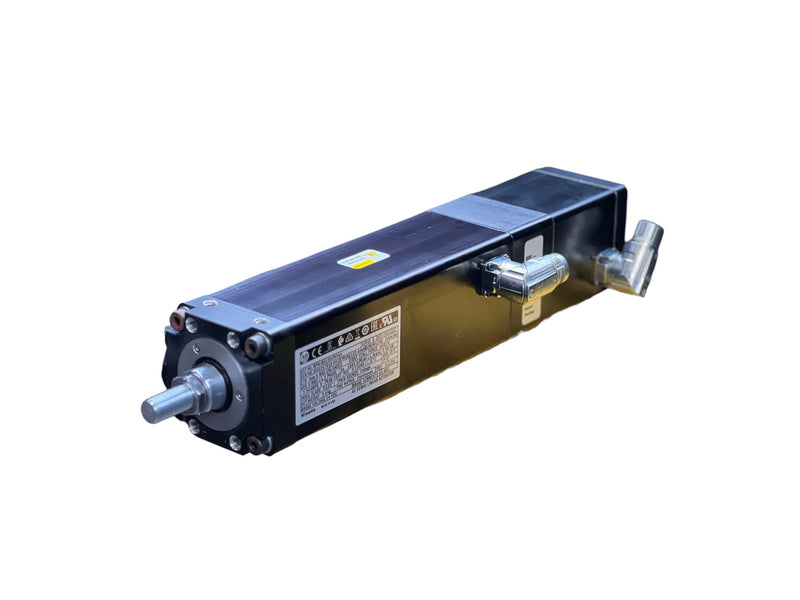

The Allen-Bradley MPAI-B3150CM34A is a Kinetix MP-Series heavy-duty AC servo linear actuator designed for precise linear motion and positioning applications. It features a 152.4 mm (6-inch) stroke, 5 mm/rev ball screw drive, multi-turn absolute encoder, and integrated 24 VDC holding brake. The actuator provides a maximum feed force of 4,448 N and operates with a 460V three-phase AC servo drive system.
It is used in automated assembly equipment, material handling machinery, precision positioning systems, packaging equipment, and manufacturing automation applications requiring controlled linear movement and high thrust force.
Condition: Used
What's included: Allen-Bradley MPAI-B3150CM34A linear actuator only, as pictured
Manufacturer: Allen-Bradley / Rockwell Automation
Model: MPAI-B3150CM34A
Part Number: MPAI-B3150CM34A
Series: B
Product Type: AC Servo Linear Actuator
Product Family: Kinetix MP-Series
Actuator Type: Heavy-Duty Electric Cylinder
Stroke Length: 152.4 mm (6 Inches)
Drive Mechanism: Ball Screw
Ball Screw Lead: 5 mm/rev
Motor Type: Three-Phase AC Servo
Rated Voltage: 460 VAC
Motor Output Power: 0.46 kW
Continuous Current: 3.54 A (0-Peak)
Maximum Feed Force: 4,448 N
Continuous Stall Force: 4,003 N at 25°C
Maximum Linear Speed: 279 mm/s
Feedback Type: Multi-Turn Absolute Encoder
Holding Brake: Integrated 24 VDC
Brake Current: 0.43 A DC
Frame Size: 83 mm
Insulation Class: F (155°C)
Protection Rating: IP67
Duty Rating: Continuous
Actuator Weight: 9.4 kg (Nameplate)
Manufacturing Date: 2021/10/22
Country of Manufacture: USA
Applications: Linear Motion Control, Servo Positioning, Automated Assembly, Material Handling, Machine Automation
