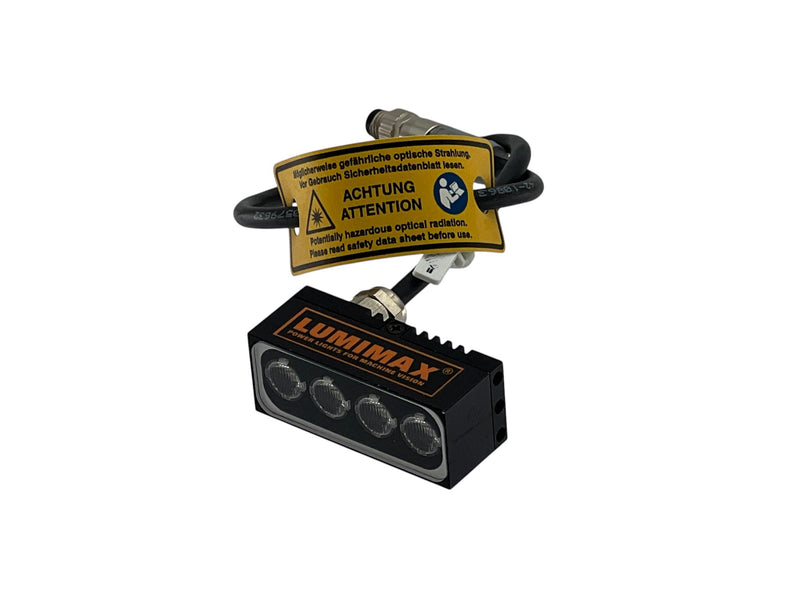

The LUMIMAX LSB50-W is a compact industrial LED bar light manufactured by iiM AG for machine vision and automated optical inspection applications. It features four high-power white LEDs, an integrated illumination controller, and a 45 × 15 mm illumination area with an 80° beam angle. The light supports continuous and externally switched operation using a 19–30 VDC power supply.
It is used in machine vision systems, automated inspection stations, robotic imaging, manufacturing quality control, and industrial camera applications requiring consistent white LED illumination.
Condition: Used
What's included: LUMIMAX LSB50-W LED bar light with attached cable and connector, as pictured
Manufacturer: iiM AG
Brand: LUMIMAX
Model: LSB50-W
Product Type: Industrial LED Bar Light
Light Color: White
Color Temperature: 7800 K
LED Quantity: 4 High-Power LEDs
Illumination Area: 45 × 15 mm
Beam Angle: 80°
Operating Voltage: 19–30 VDC

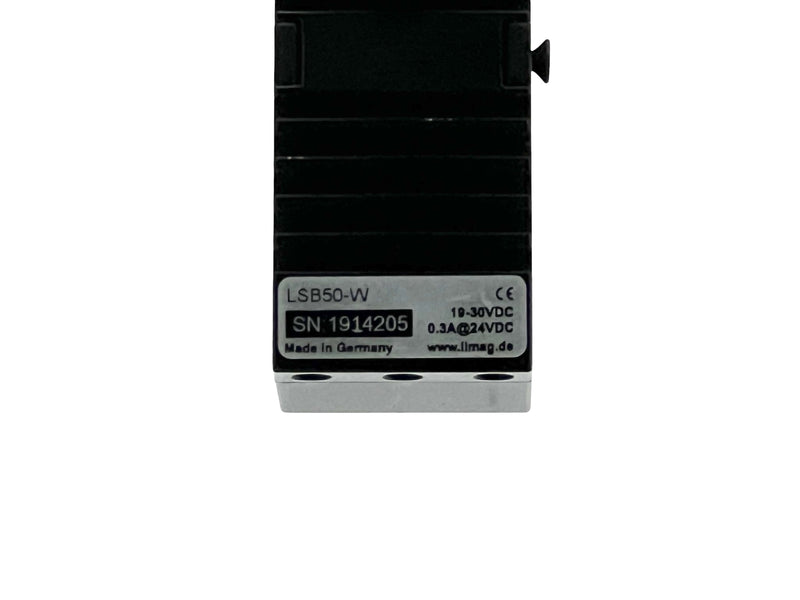

Current Rating: 0.3 A @ 24 VDC (unit label)
Operating Modes: Continuous and Switching
Controller: Integrated Illumination Controller

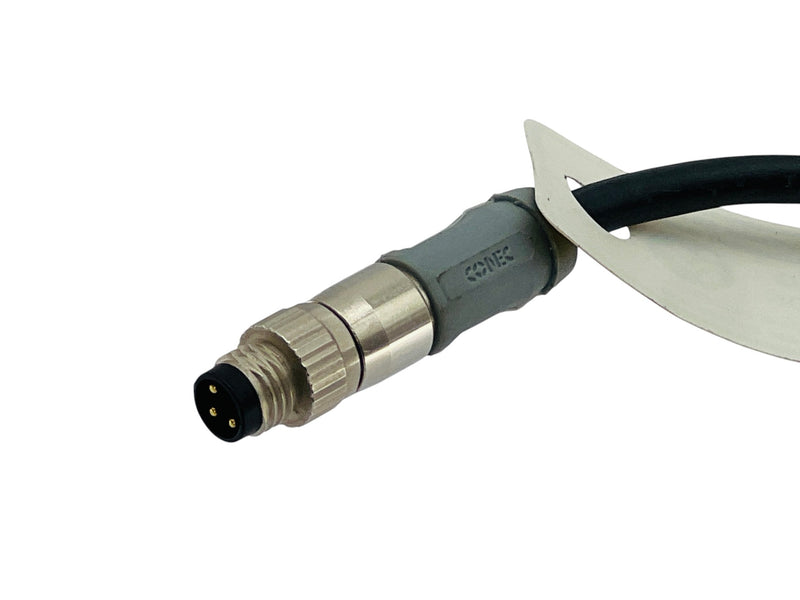

Electrical Connection: Attached Cable with M8 Connector
Protection Rating: IP64
Housing Material: Anodized Aluminum
Dimensions: 50 × 20 × 20 mm
Weight: Approximately 60 g
Country of Manufacture: Germany
Applications: Machine Vision, Automated Optical Inspection, Industrial Imaging, Quality Control
The LUMIMAX LSB50-W is a compact industrial LED bar light manufactured by iiM AG for machine vision and automated optical inspection applications. It features four high-power white LEDs, an integrated illumination controller, and a 45 × 15 mm illumination area with an 80° beam angle. The light supports continuous and externally switched operation using a 19–30 VDC power supply.
It is used in machine vision systems, automated inspection stations, robotic imaging, manufacturing quality control, and industrial camera applications requiring consistent white LED illumination.
Condition: Used
What's included: LUMIMAX LSB50-W LED bar light with attached cable and connector, as pictured
Manufacturer: iiM AG
Brand: LUMIMAX
Model: LSB50-W
Product Type: Industrial LED Bar Light
Light Color: White
Color Temperature: 7800 K
LED Quantity: 4 High-Power LEDs
Illumination Area: 45 × 15 mm
Beam Angle: 80°
Operating Voltage: 19–30 VDC
Current Rating: 0.3 A @ 24 VDC (unit label)
Operating Modes: Continuous and Switching
Controller: Integrated Illumination Controller
Electrical Connection: Attached Cable with M8 Connector
Protection Rating: IP64
Housing Material: Anodized Aluminum
Dimensions: 50 × 20 × 20 mm
Weight: Approximately 60 g
Country of Manufacture: Germany
Applications: Machine Vision, Automated Optical Inspection, Industrial Imaging, Quality Control
